Unpivot data

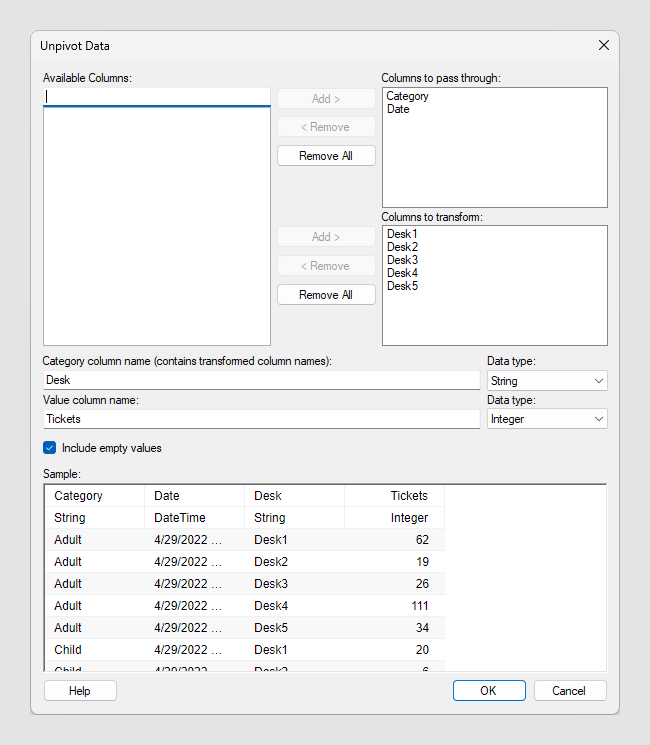

The Unpivot Data transformation is used to transform data from a short/wide format to a tall/skinny format. When you use the Unpivot data dialog for the transformation, you can immediately set the desired names for the new category and value columns.

Tip: A shortcut for unpivoting data is available by selecting and right-clicking the columns to combine in the Data in analysis flyout, and then clicking Unpivot. This shortcut is available in all Spotfire clients.

Tip: You can replace a data table with a transformed version of itself.

See Transforming data for information about how to add a transformation to an analysis.


Option	Description
Available columns	The columns available for use in the unpivot operation. Click a column name in the list to select it. To select more than one column, press Ctrl and click the column names in the list. Use one of the Add > buttons to send the selected column to either the Columns to transform or Columns to pass through field, see below. You can narrow down the list of available columns by typing a part of a name in the search field. You can also enter an expression in the field, using the rules described on Searching in Spotfire clients.
Add >	Moves the selected columns from the Available columns field to the field next to the button.
< Remove	Removes a column and brings it back to the Available columns field.
Remove All	Removes all columns from the selected columns fields.
Columns to pass through	The selected columns containing information that should be transferred to the unpivoted data set without any transformation. This could be ID columns, categorical information such as Region, Priority and so on.
Columns to transform	The selected columns containing the values that you wish to combine into a single column. The column names of these columns will be used as category values in the resulting new category column. Typically, this might be a number of columns containing the same type of data, such as sales figures for different years.
Category column name (contains transformed column names)	Type a column name that summarizes the information provided in the columns that you have selected to transform. For instance, "Year" could be used when sales figures for several different years are to be combined to a single column.
Data type	Allows you to specify the data type of the category column name, if several are possible.
Value column name	Type a column name that shows what type of information is included in the new value column. For instance, "Sales" would be a good name for a column containing sales figures for several different years.
Data type	Allows you to specify the data type of the value column name, if several are possible.
Include empty values	Select this check box to transfer empty values to the unpivoted data view. If the check box is cleared, all records containing empty values will be discarded. Note: A string of length zero is not considered empty in this context. Only true null values will be excluded if the check box is cleared. You can replace 0-length strings with actual null values using a Calculate and replace column transformation before doing Unpivot, for example using an expression like `If(Len([Column]) = 0, null, [Column])`, to exclude those values too.
Sample	Gives you a preview of what the resulting data table will look like. Note: The sample uses the first 100 rows from the data table, so there might be some differences between the sample and the resulting data table.
