Importing the .car file to TIBCO Data Virtualization

The .car files must be imported to the TIBCO® Data Virtualization for integration with TIBCO Data Science – Team Studio. This action has to be performed by the system administrator.

Before you begin

  • Download both the .car files. One of the .car files can be downloaded from TIBCO eDelivery and the other file from TIBCO Community.

    Note:

    To use the Database operators, the .car files from TIBCO Community are required.

  • Place the .car file in a location accessible to the computer where TIBCO Data Virtualization Studio is installed.

    Procedure

  1. Open TIBCO Data Virtualization Studio and log in as administrator (with the password created during installation), or log in as a user with administration rights.

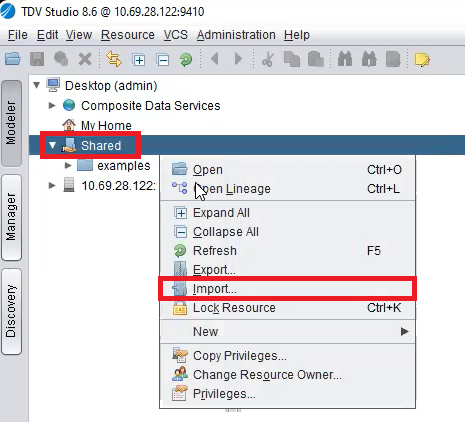

  2. In the navigation tree, right-click the Shared folder, and then select Import.

    TDV - Import option

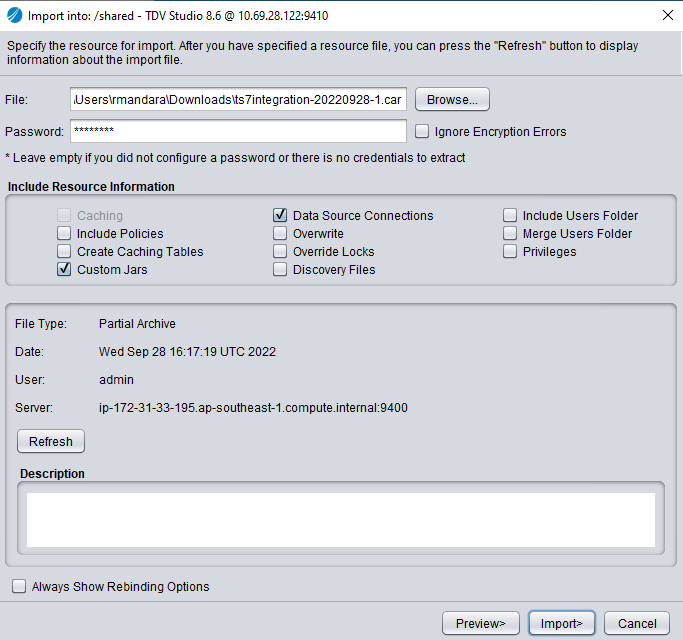

  3. The Import into dialog appears. Perform the following steps:

    1. In the File column, click Browse and navigate to the location of the .car file.

    2. In the Password column, enter your TIBCO Data Virtualization password.

    3. In the Include Resource Information, select the Custom Jars and Data Source Connections checkboxes.

    4. Click Import.

    Import into dialog

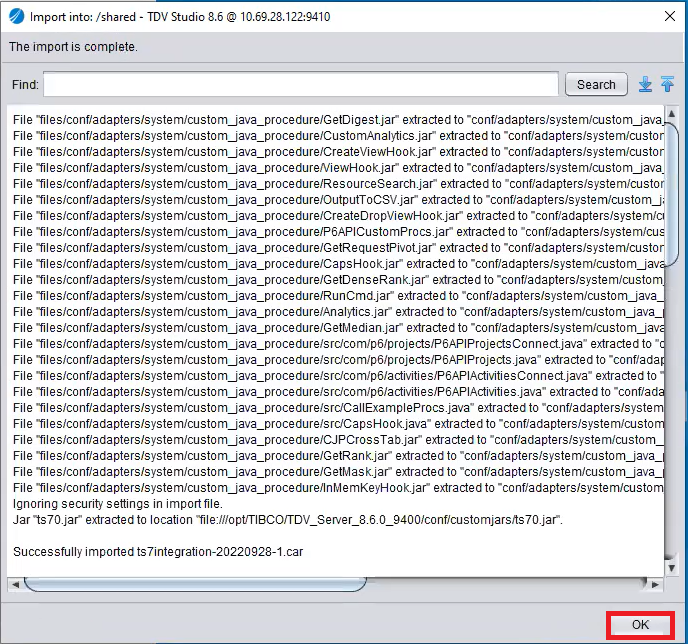

  4. If the import is successful, the following status is displayed. Click OK.

    Import successful dialog

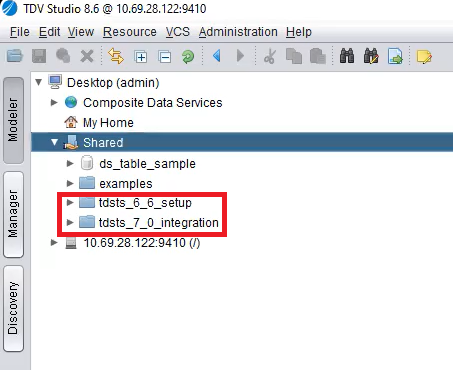

  5. Repeat steps 3 to step 5 to import the second .car file. The imported files can be viewed under the Shared folder.

    Imported car file.png
