Classification Threshold Metrics

Use to output (binary or multi-class) classification performance metrics for different confidence thresholds associated with a unique class that the user specifies.

Information at a Glance

Parameter

 Description
Category Model Validation
Data source type HD
Send output to other operators Yes
Data processing tool Spark

The Classification Threshold Metrics operator partially leverages Spark MLLib Classification Threshold Tuning in the Evaluation Metrics package (Spark version 1.5.1).

For more information about this operator and its available metrics, see Prediction Threshold.

Input

Classification Threshold Tuning must be preceded by either the Classifier operator or the Predictor operator. The outputs from those operators are required for the calculations in this operator.

Configuration

Parameter Description
Notes Notes or helpful information about this operator's parameter settings. When you enter content in the Notes field, a yellow asterisk appears on the operator.
Dependent Column Select the column that contains the dependent variable used to train the classification model (can be numeric or categorical).

Important: If the distinct values in the Dependent Column selected are not a subset of the model classes (classes in sparse Confidences column), a n error occurs at runtime.

Confidences Column Select the column that contains the confidences levels associated with classes from the classification model (binary or multi-class). This column must have the sparse data type, and contains the dictionary (with string keys and double values) of all confidence levels associated with model classes.

Example: {"red":0.52, "green":0.32, "blue":0.26} or {"0":0.52, "1":0.48}

It is most likely to be the INFO_model_name column in the output of the Classifier or Predictor operators.

Class to Predict Enter one of the model classes to predict (quotes are not needed for both numeric or string entries). This class is considered as the positive class in order to compute the classification metrics.

Example: red or 1

Note: If the Dependent column is numeric and the value entered for Class to Predict cannot be cast to numeric, an error appears before closing the parameter dialog.

If the value entered for Class to Predict is not a member of the model classes (classes in Confidences column), an error occurs at runtime.

Number of Bins (approx.) Select the approximate number of confidence threshold bins (default is 20), corresponding to the approximate number of rows in the output.
  • If 0 is entered, the result contains a point for each distinct confidence threshold in the input, and this could be as large as the input itself.
  • Otherwise, the result is approximately made of X bins after down-sampling.

Points are made of bins of equal number of consecutive points. The size of each bin is equal to floor(total_rows/num_bins), which means the resulting number of bins might not exactly match the value specified. The last bin in each partition might be smaller as a result, meaning there might be an extra sample at partition boundaries.

Beta Value for F-measure ( β) Enter the β value to compute F-score (must be >= 0, default = 1).
Note: The beta parameter determines the weight of precision in the combined score F-measure.

As shown in the formula above, β < 1 lends more weight to precision, while β > 1 favors recall. If β = 1, the F1-measure is called the harmonic mean of recall and precision.

Write Rows Removed Due to Null Data To File Rows with at least one null value in either the Dependent column or Confidences column are removed from the analysis. This parameter allows you to specify whether rows with null values are written to a file.

The file is written to the same directory as the rest of the output. The file name is suffixed with _baddata.

  • Do Not Write Null Rows to File - remove null value data and display in the result UI, but do not write to an external file.

  • Do Not Write or Count Null Rows (Fastest) - remove null value data but do not count and display in the result UI

  • Write All Null Rows to File - remove null value data and write all removed rows to an external file.

Storage Format Select the format in which to store the results. The storage format is determined by your type of operator.

Typical formats are Avro, CSV, TSV, or Parquet.

Compression Select the type of compression for the output.

Available Parquet compression options.

  • GZIP
  • Deflate
  • Snappy
  • no compression

Available Avro compression options.

  • Deflate
  • Snappy
  • no compression
Output Directory The location to store the output files.
Output Name The name to contain the results.
Overwrite Output Specifies whether to delete existing data at that path.
  • Yes - if the path exists, delete that file and save the results.
  • No - fail if the path already exists.
Advanced Spark Settings Automatic Optimization
  • Yes specifies using the default Spark optimization settings.
  • No enables providing customized Spark optimization. Click Edit Settings to customize Spark optimization. See Advanced Settings dialog for more information.

Output

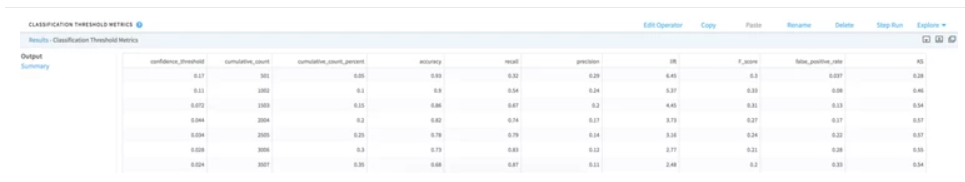

Visual Output

Data Output
A data set that contains the associated confidence thresholds (in descending order) and performance metrics, which can be connected to subsequent operators.

The following metrics are available in the output (for the positive class selected).

  • Recall
  • Precision
  • F-score (for beta value

    β

    chosen)
  • False positive rate
  • Cumulative Count
  • Cumulative Count (percentage)
  • Accuracy
  • Lift
  • KS

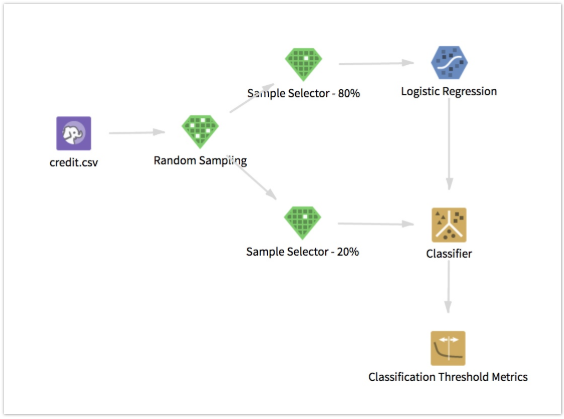

Example
