Output Reporting Documents

The output reporting documents display the results after the workspace is run.

The reporting documents are created based on the options selected on the Output tab of the Edit Parameters dialog box.

Option Description
Warped trajectories Produces the warped trajectories of the same length.
Warped trajectories as downstream Sets the warped trajectories spreadsheet as a downstream document.
Andrews plot for synchronized batches Draws the Andrews plot of the synchronized batches. (Andrews plot is a way to visualize the structure of multivariate data).
Optimal cost for synchronized batches Displays the optimal costs of warping of every batch with the reference batch.
Trajectory plot for synchronized batches Creates a trajectory plot separately for every single variable in the batches after warping.
User Input Summarizes the user input for producing the current warping.

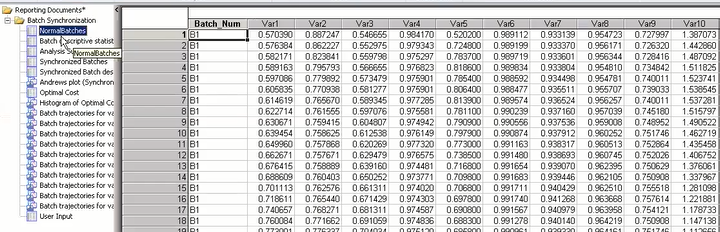

From the workspace, open the Reporting Documents to view the results.

To view results from the Reporting Documents, select from the list. For example, Normal Batches, Descriptive Statistics, Analysis Summary, Histogram, and Batch Trajectories.
