Macro (Statistica Visual Basic) Overview

When you run an analytic procedure (from the Statistics tab or menu) or create a graph (from the Graphs tab or menu) the Visual Basic code corresponding to all design specifications as well as output options are recorded in the background. Entire interactive Statistica analysis sessions involving different types of analyses can be recorded via the Master Macro facility [via Start Recording Log of Analyses (Master Macro) on the Tools - Macro menu]. That code can later be executed repeatedly or edited by changing options, variables, data files, optionally adding a user interface, etc.

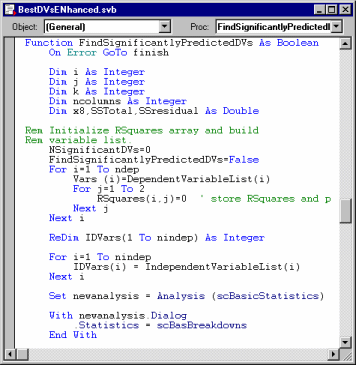

Programs can be written from scratch using the Statistica Visual Basic professional development environment featuring a convenient program editor with a powerful debugger (with breakpoints, etc.), intuitive dialog painter, and many facilities that aid in efficient code building.

SVB programs can also be developed by enhancing Visual Basic programs created in other applications (e.g., Microsoft Excel), by calling Statistica functions and procedures.

Executing Statistica Visual Basic programs. Statistica Visual Basic programs can be executed from within Statistica, but because of the industry standard compatibility of Statistica Visual Basic, you can also execute its programs from any other compatible environment (e.g., Microsoft Excel, Microsoft Word, or a stand-alone Visual Basic language). In practice, you would typically call Statistica functions from Visual Basic in another application. Note, however, that when you run a Statistica Visual Basic program or attempt to call Statistica functions from any other application, all calls to the Statistica specific functions (as opposed to the generic functions of MS Visual Basic) will be executed only if the respective Statistica libraries are present on the computer where the execution takes place. That is, the user of the program must be a licensed user of the respective Statistica libraries of procedures. Note that this large library of Statistica functions (more than 14,000 procedures) is transparently accessible not only to Visual Basic (either the one that is built in, or a different one), but also to calls from any other compatible programming language or environment, such as C/C++, Java, or Delphi.

Applications for Statistica Visual Basic programs. Statistica Visual Basic programs can be used for a wide variety of applications from simple macro (SVB) programs recorded to automate a specific (repeatedly used) sequence of tasks, to elaborate custom analytic systems combining the power of optimized procedures of Statistica with custom developed extensions featuring their own user interface. Scripts for analyses developed this way can be integrated into larger computing environments or executed from within proprietary corporate software systems or intranet or Internet portals. SVB programs can also be attached to virtually all important "events" in an analysis with Statistica such as opening or closing files, clicking on cells in spreadsheets, etc.; in this manner, the basic user interface of Statistica can be highly customized for specific applications (e.g., for data entry operations, etc.).

Performance of Statistica Visual Basic programs. While the obvious advantages of Visual Basic (compared to other languages) are its ease of use and familiarity to a very large number of computer users, the possible drawback of Visual Basic programs is that they do not perform as fast as applications developed in lower level programming languages (such as C). However, that potential problem does not apply to Statistica Visual Basic applications, especially those that rely mostly on executing calls to Statistica's analytic, graphics, and data management procedures. These procedures fully employ Statistica technology and perform at a speed comparable to running the respective procedures in Statistica directly.

Structure of Statistica Visual Basic. Statistica Visual Basic consists of two major components: 1) The general Visual Basic Programming Environment with facilities and extensions for designing user interfaces (dialogs) and file handling, and 2) the Statistica libraries with thousands of functions that provide access to practically all functionality of Statistica.

The Statistica Visual Basic programming environment follows the industry standard syntax conventions of the Microsoft Visual Basic Language; the few differences pertain mostly to the manner in which dialog boxes are created (see Custom Dialogs; Custom User Interfaces), and are designed to offer programmers/developers more flexibility in the way user interfaces are handled in complex programs. In the Statistica Visual Basic programming environment, dialog boxes can be entirely handled inside separate subroutines, which can be flexibly combined into larger multiple-dialog programs; MS Visual Basic is form based, where the forms or dialog boxes, and all events that occur in the dialog boxes, are handled in separate program units.

Statistica provides a comprehensive selection of facilities for recording macros (SVB programs) to automate repetitive work or to be used as a means to automatically generate programs for further editing and modification. The macro (Statistica Visual Basic) programs recorded by these facilities can be saved to be run "as is," or they can be used as the "building blocks" for more complex and highly customized Visual Basic application programs.

There are three general categories of macros that can be automatically created as you run the program:

First, you can record simple Analysis Macros from an analysis to record the settings, selections, and chosen options for that specific analysis. (Note that the term "analysis" in Statistica denotes one task selected either from the Statistics or Graphs menu, which can be very small and simple (e.g., one scatterplot requested from the Graphs menu), or very elaborate (e.g., a complex structural equation modeling analysis selected by choosing that command from the Statistics menu, and involving hundreds of output documents). After selecting any of the Statistical commands from the Statistics menu or graphics commands from the Graphs menu, all actions such as variable selections, option settings, etc. are recorded "behind the scenes;" at any time you can then transfer this recording (i.e., the Visual Basic code for that macro) to the Visual Basic Editor window. Note that the Create Macro command is available from every analysis via the Options menu or the shortcut menu (accessed by right-clicking the analysis button) when the respective analysis is minimized.

Second, you can record a Master Macro or Master Log of your entire session that can consist of several or many analyses; this recording will "connect" analyses performed with various analysis options from the Statistics or Graphs menu. However, unlike simple Analysis Macros, you can turn the recording of Master Macros on or off. The Master Macro recording will begin when you turn on the recording, and it will end when you stop the recording. In between these actions, all file selections and most data management operations are recorded, as are the analyses and selections for the analyses, in the sequence in which they were chosen.

When you select Start Recording Keyboard Macro from the Tools - Macro menu, Statistica will record the actual keystrokes you enter via the keyboard. When you stop the recording, a Statistica Visual Basic editor window will open with typically a very simple program containing a single SendKeys command with symbols that represent all the different keystrokes you performed during the recording session. Note that this type of macro is very simple in the sense that it will not record any context in which the recorded keystrokes are pressed and will not record their meaning (i.e., commands that these keystrokes will trigger), but this feature makes them particularly useful for some specific applications.

All three follow the identical syntax and can later be modified, but because of the different ways in which each of them is created, they offer distinctive advantages and disadvantages for specific applications.

The Statistica Visual Basic environment includes a flexible program editor and powerful debugging tools. These facilities are described in greater detail in Editing and Customizing Recorded Macro (SVB) Programs.

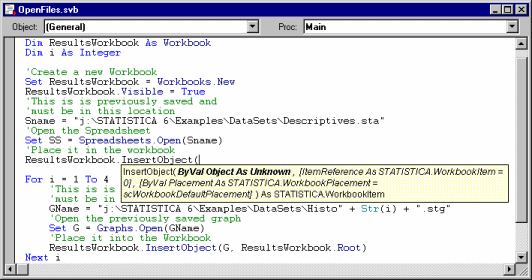

When editing macro programs by typing in general Visual Basic commands or program commands specific to Statistica Visual Basic, the editor displays type-ahead help to illustrate the appropriate syntax.

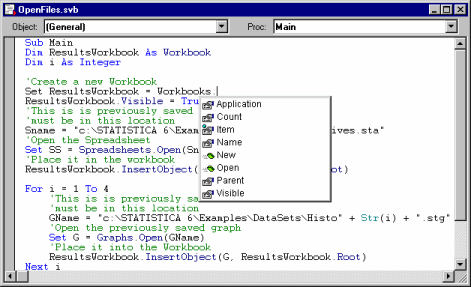

Help on the members and functions for each class (object) is also provided in-line (see also The Statistica VB Object Model).

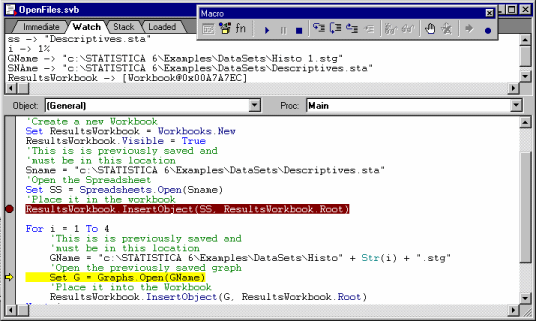

When executing a program, you can set breakpoints in the program, step through line by line, and observe and change the values of variables in the macro program as it is running.

To summarize, Statistica Visual Basic is not only a powerful programming language, but it represents a very powerful, professional programming environment for developing simple macros as well as complex custom applications.

To test and modify the example Statistica Visual Basic (SVB) programs discussed in this SVB documentation, copy the respective sections from the electronic help and paste them into the Statistica Visual Basic editor window.
