ConfigureHTTPResponse

This activity is used to configure HTTP response codes that you want to use in your REST reply.

Settings

Field Description
Trigger Name The list of triggers to which this flow is attached. This field is displayed only when the flow it attached to multiple REST triggers. Select a trigger in which the code you want to use is configured.
Code List of response codes that you have configured in the selected trigger. Select a response code you want to use.

Input

Displays the schema for the code that you selected in the Settings tab. Map the elements in the schema in the mapper or manually enter the values that you want to send as a response.

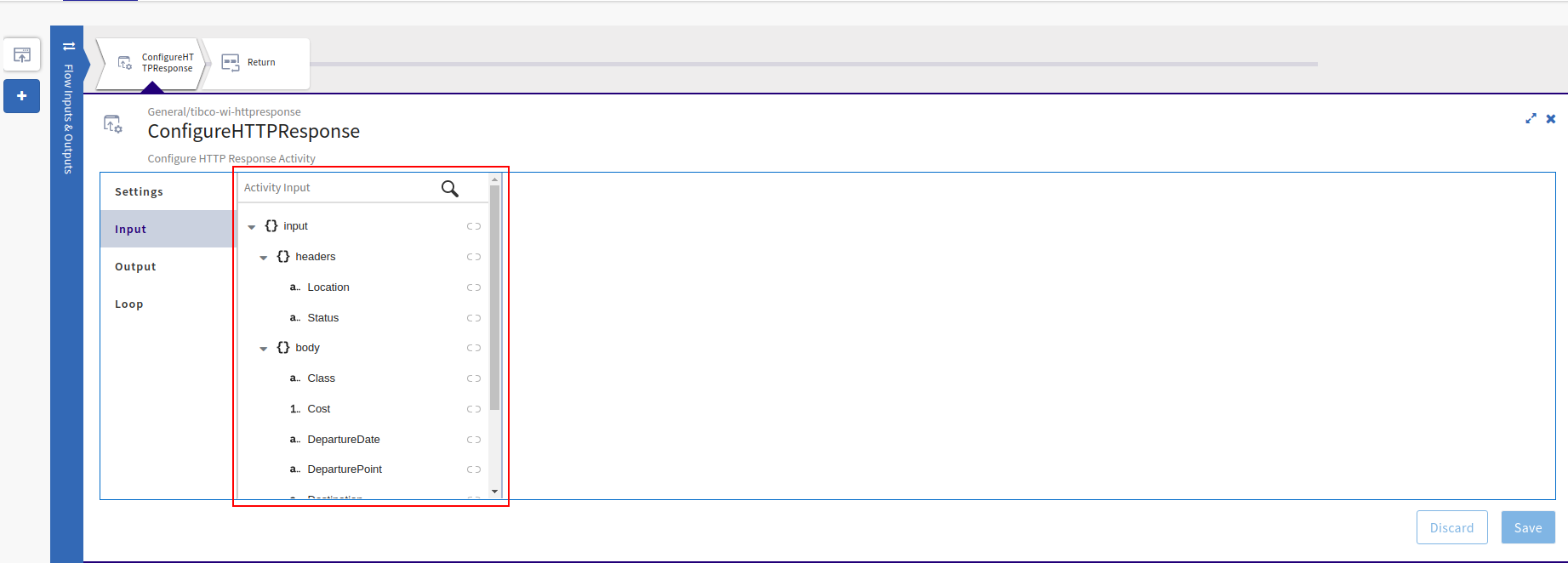

Note: For multiple response codes in the ReceiveHTTPMessage REST trigger, map the Response Body and Response Headers from the trigger with the Input in this activity. The image shows the Input with headers and body mapped from the REST trigger response codes.
Screenshot of Input of ConfigureHTTPResponse activity.

Output

Displays the schema for the code in a read-only tree format.

Loop

Refer to the section on "Using the Loop Feature in an Activity" in the TIBCO Cloud™ Integration - Flogo® (PAYG) User's Guide for information on the Loop tab.
