Creating a Flow Attached to Other Triggers

This section applies to triggers that are not REST, gRPC or GraphQL triggers.

1. Click an app name in the Apps page in TIBCO Cloud Integration - Flogo (PAYG) to open its page.
2. If this is the first flow in the app, click the Create link, or if another flow exists in the app, click the Create button.
   The Add triggers and flows dialog opens.
3. Enter a name for the flow in the Name text box.
   Flow names within an app must be unique. An app cannot contain two flows with the same name.
4. Optionally, enter a brief description of what the flow does in the Description text box and click Create.
5. Select Start with a trigger.
   The triggers catalog opens. If there are existing triggers in the app, they are displayed in the Select existing trigger tab.
6. To create a new trigger, click Add new trigger.
7. Click the trigger that you want to add.
   The flow details page is displayed with the trigger.
8. Click the trigger to display its properties. For example, the image below shows the Timer trigger.



9. Configure the properties for the trigger. See the respective trigger section in the TIBCO Flogo® Activities and Triggers Guide for details.

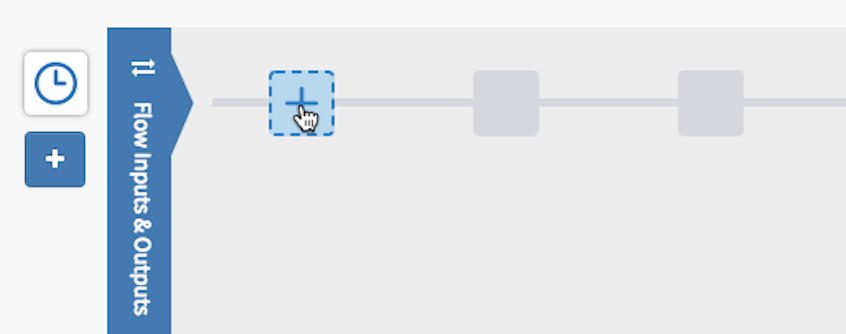

10. Add activities to the flow by clicking the + icon next to the Flow Inputs & Outputs tab:
