Getting Table and Relationship Information
On both the model Diagram and Cross Schema Diagram, you can drill down for details about the tables and relationships.
1. On the Cross Schema Diagram for My Model, display all tables with relationships.
2. Click the Show Relationship Detail button on the model toolbar.
Discovery displays the Relationship Details panel under the diagram.
3. Select a relationship line.
Discovery displays details about the selected relationship.
4. Click any other relationship and notice that the relationship details are updated.
5. Click the Diagram tab and select a relationship line.
Discovery updates the Relationship Details tab with information for that relationship.
6. Double-click a relationship line and Discovery opens the Edit Relationship dialog.
7. In the model Diagram tab, select any table, right-click, and choose View Table Details.

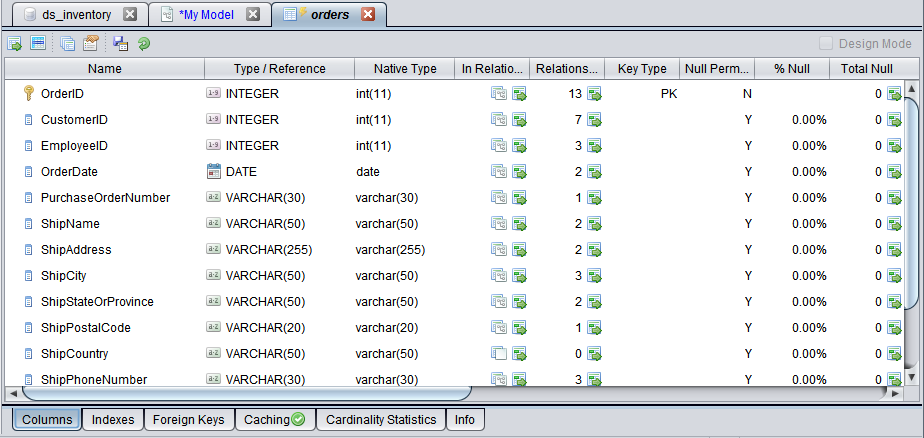

Discovery opens that table in the Studio workspace similar to:
