Displaying the Dependencies of a Cache Policy
When you are working on a cache policy, it is useful to know what resources are involved so you can understand the behavior of the cache refresh action. The Lineage panel in Studio shows a resource’s dependencies, references, and other data points for the associated cache policy.
To display the dependencies and references of a cache policy
1. Open your cache policy.
2. Select the Cache Policy Settings tab.
3. Scroll to the Lineage section.
4. Click Open Lineage.

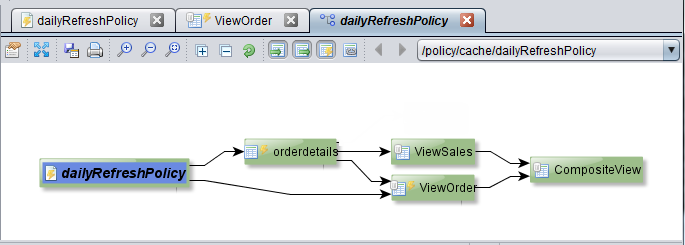

The Lineage panel opens in the workspace to the right. It displays all the resources related to the view in a graphical format. Use this method if the view has lots of objects because the entire workspace is used to display the dependencies and references. This lineage display also allows you to easily navigate the related resources and saves the history of the navigation.
Cache tables and policies are shown in green.
