Adding Realms

You can add LDAP realms to the TIBCO Enterprise Administrator server. The default realm available is TEA_DB.

1. Click and select User Management.
   The User Management pane is displayed.
2. Under Users, click Realms.
   The Realms pane is displayed.
3. Click Add.
   The Register New Realm is displayed.
4. Provide the following general information:
   • Name
   • Description
   • Server URL
   • Search Timeout
   • BindUserDN
   • Bind Password

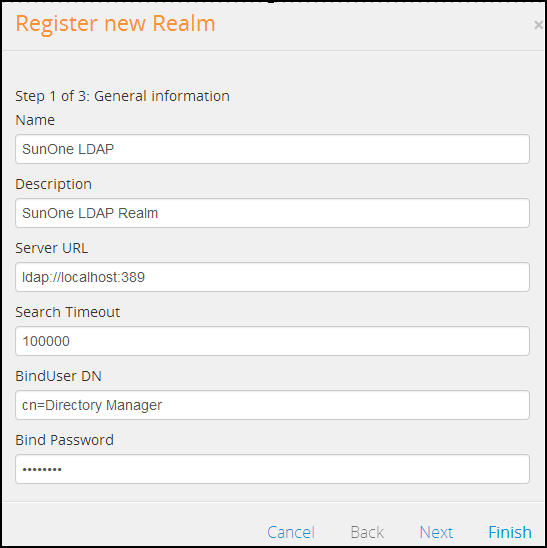

   Adding a Realm: General Information


5. Click Next. Provide the following group information:
   • Group ID Attribute
   • Group User Attribute
   • Sub-Group Attribute
   • Group Search Base DN
   • Group Search Expression

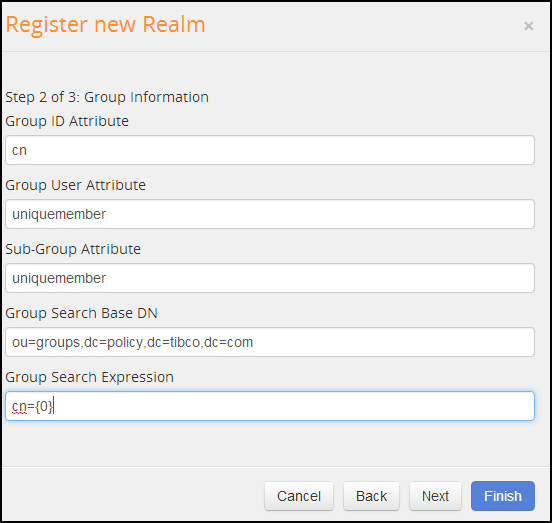

   Adding a Realm: Group Information


6. Click Next. Provide the following User information:
   • User ID Attribute
   • User Search Base DN
   • User Search Base Expression
   • User Password Attribute

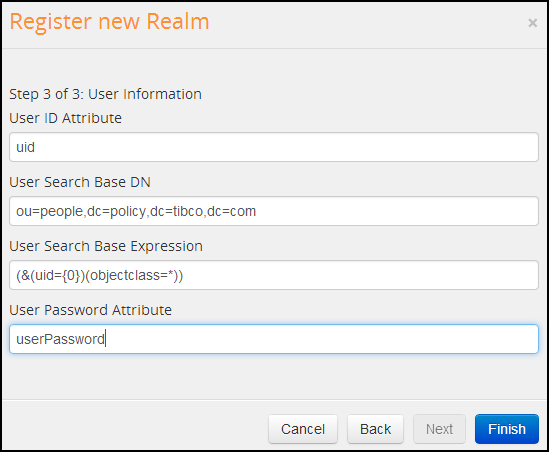

   Adding a Realm: User Information


7. Click Finish.
