Viewing the Installed TIBCO Software and Running TIBCO Processes on a Machine

You can view the TIBCO_HOME details detected on a machine with a TIBCO Enterprise Administrator agent or a TIBCO Hawk agent running on it. You can drill down every TIBCO_HOME location to see the software installed in the TIBCO_HOME.

Constraints: TIBCO Enterprise Administrator detects only those software installations that were performed using TIBCO Universal Installer.
Note: Optionally, TIBCO_HOME location details can be explicitly provided by setting the following system property:
tea.agent.tibcohome-info =
tibcoHomeEnvName|tibcoHomeLocation|tibcoHomeConfigLocation"
(tibcoHomeConfigLocation is an optional field.)

 For example, tea.agent.tibcohome-info =
mytibcohome|/home/userHome/tibcohome|/home/userHome/tibcohome/tibco

Procedure

  1. On the menu, click The View icon on the main menu. and select Machines; next to System Views.
  2. Click a machine of your choice.
    Note: Alternatively, you can click on the Machines card on the landing page.
  3. Scroll down to see Software Installation Details. The Software Installation Details group lists the TIBCO_HOME details detected on the machine provided there is a TIBCO Enterprise Administrator agent or a TIBCO Hawk agent and Product_Info MicroAgent running on it. The following details are displayed:
    1. Environment name
    2. Location
    3. Configuration Location: The configuration location is displayed only if you had specified one during installation.
    4. Number of Software

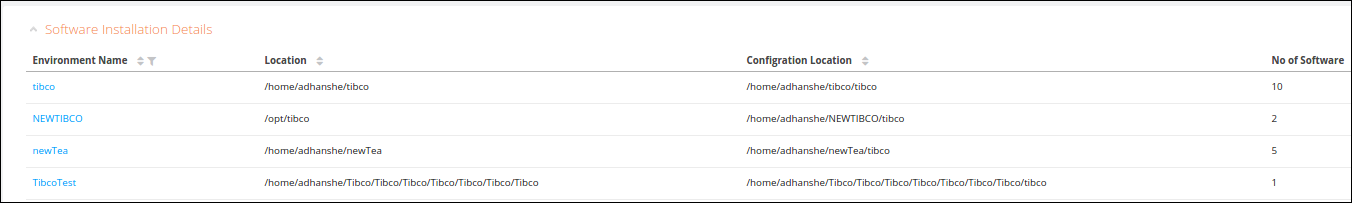

    Software Installation Details
  4. Scroll down to see the TIBCO processes running on the machine.
  5. From the Software Installation Details pane, click a TIBCO_HOME name of your choice.
    The page that is displayed has three panes: TIBCO_HOME Environment Name, the Installed Software details for that location, and the TIBCO processes running on the TIBCO_HOME.
    Note: Any TIBCO process running under TIBCO_HOME gets displayed.

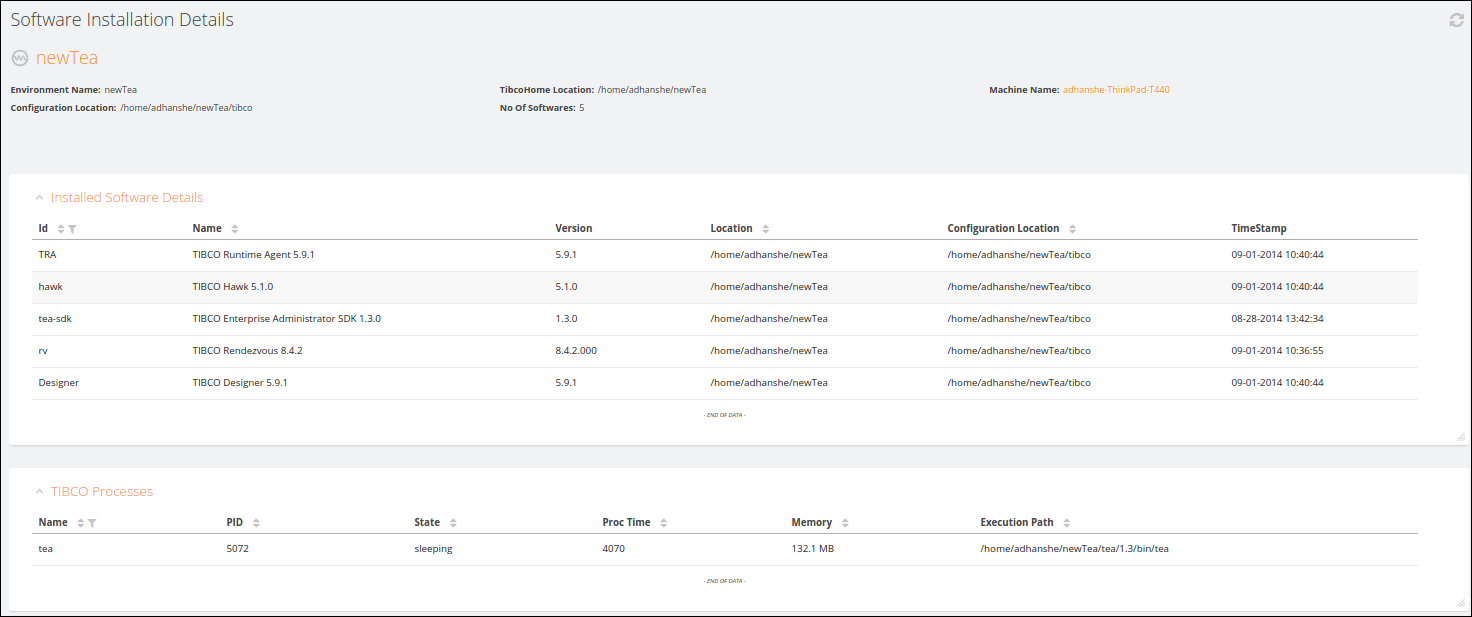

    TIBCO Software and Processes Running under a TIBCO_HOME
    Note: In case of TIBCO Hawk detected machines, all running TIBCO processes may not be detected due to certain limitations.
