Administrative Console Features
Administration console is a Python application built on top of TIBCO Graph Database Python client API. The administrative console supports familiar python keyboard handling & user experience.This section covers the general features of the tool.
Auto Complete
The 3.0 Administration Console now supports auto-complete. To start auto-completing press CTRL-i or TAB. If there are multiple options available, then a list will be presented to the user. To iterate through this list, press CTRL-i, TAB, or SPACE to go down the list or SHIFT-TAB to go up the list.

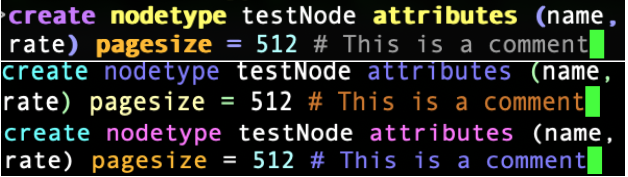

Syntax coloring
The 3.0 Administration Console now supports syntax coloring. These colors tokens are similar the same way to break up a command to more easily digest. There are three different styles of syntax coloring, pictured below in order, are default, vim, and emacs. The command to set the syntax coloring is set (admin|gremlin)_pallet = (default|vim|emacs)
Syntax Validation
The 3.0 Administration Console now supports syntax validation. This prevents the user from submitting an improperly formatted command by showing an error message, not accepting the command, and placing the cursor at the location of the first error (at the end of the token that causes the issue).
Layout
The 3.0 Administration Console displays dense information, like the output of the info command, in a grid-like fashion that adapts to the width of the terminal to improve usability and digestibility.

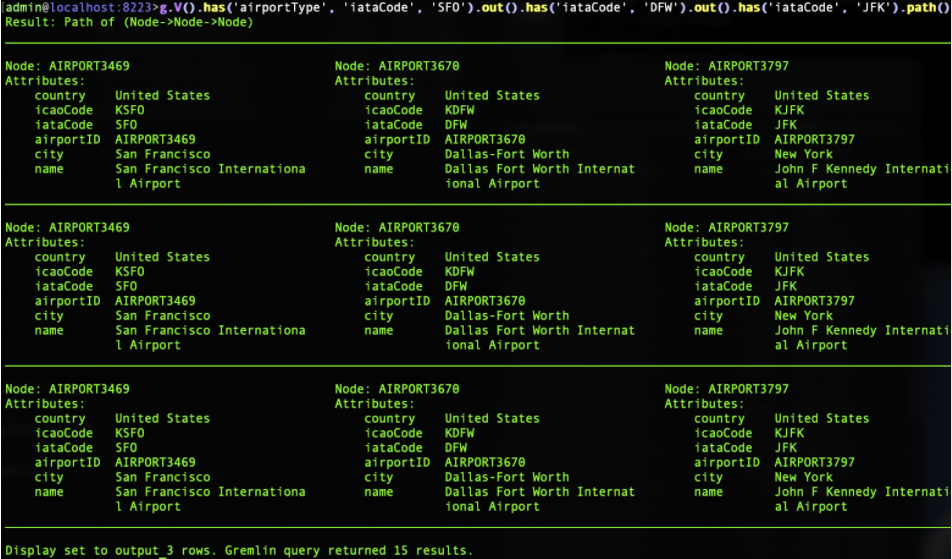

Gremlin Queries
The 3.0 Administration Console fully supports Gremlin Queries and will attempt to intelligently layout each query result in an intelligent manner. The user can change the number of elements displayed at the top level via the set gremlin_outlen = <NUM_ELEMENTS>
Admin Properties
| Name | Acceptable Values | Default | Description |
|---|---|---|---|
| loglevel |
(info|user|debug|debugfine| debugfiner)[componenet_name |
info | The log level for the 3.0 Administration Console. |
| gremlin_pallet | (default|vim|emacs) | default | Sets the syntax coloring style for Gremlin Queries |
| admin_pallet | (default|vim|emacs) | default | Sets the syntax coloring style for Administration Commands |
| separator | <special_character> | ; | Sets the separator for determining the ending of a command. |
| gremlin_outlen | number> | 5 | The number of elements in the outermost collection of the gremlin query to display. |
