TIBCO Graph Database provides REST APIs for clients to connect to the database using REST architectural patterns. This document describes different REST APIs supported by the product, the basic architecture of how the REST APIs are supported from the product, and different configuration options to customize the REST server.

Running the REST Server

To use REST APIs of TIBCO Graph Database with your applications, the REST Server must be running along with TIBCO Graph Database server.

Usage

tgdb-rest [--config <config filename> [--listen <host:port>] [--dburl db_url] [--dbpoolsize size] [--name name] [--loglevel Error|Warning|Info|Debug] [--logdir log_directory_path] [--logtoconsole true|false]

The command line options are described in the following table.

Option	Description
--config <config filename>	<config filename> is the name of the config file
--listen <host:port>	<host:port>: the host & port for server to listen to (default: "localhost:9500")
--dburl <db_url>	db_url: the tgdb URL to connect to a database (default: "tcp://api@localhost:8222/{dbName=demodb}"
--dbpoolsize <size>	size: the Connection-Pool size to connect to TIBCO Graph Database (default: 25)
--name <name>	name: the name of the tgdb-rest server instance (default: "tgdb-rest-<pid>") where pid is the process-Id.
--loglevel <level>	level: the loglevel to set (Error\|Warning\|Info\|Debug) (default: "Warning")
--logdir <log_directory_path>	log_directory_path: the directory to store logs (default: Current-Working-Directory)
--logtoconsole <value>	value: the boolean value to log messages on console (default: true)
-h, --help	to see help detail for the REST server config options

High Level Architecture

This section provides a high level architecture of the REST server. It provides the REST server components with a bird’s eye view, the interaction of various components with the Database server, and finally illustrates a sample deployment in today’s world.

REST Server Components

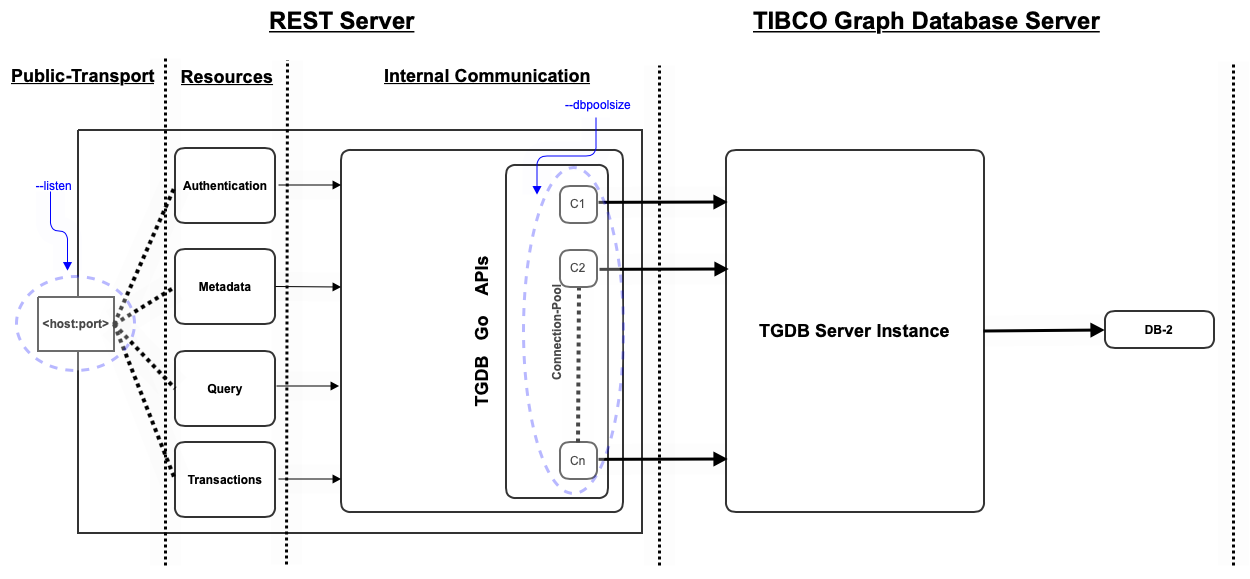

The following figure shows the bird’s eye view of REST Server components, and their interaction with Graph Database Server.

The REST server exposes a set of well defined resources as REST-JSON for public consumption by any REST clients. The server exposes the underlying TGDB services as specified below:

TGDB REST server is a stateless server. This means it does not maintain any of the application, or session-related state. It essentially provides a gateway between the Client and TGDB Server on a well known Transport and Protocol - HTTP 1.1/REST-JSON.
It provides transformation between the native binary message and JSON message format over a HTTP protocol.
The TGDB REST services are exposed on a configurable <host:port> parameter for the client applications to consume.
A REST server listens to a single <host:port> spec
A REST server exposes all TGDB services as REST resources. These resources are Authentication, Metadata Management, Transaction Management, and Query Execution. See the Resources section for a more detailed wire-format.
A REST server supports a single connection pool of configurable size to communicate multiple requests concurrently between REST Server and TGDB Server. The connection pool is per database, and hence a single REST server expose services for a single database
A REST server internally leverages the GO API to connect to TGDB Server.

REST Server and TGDB Server

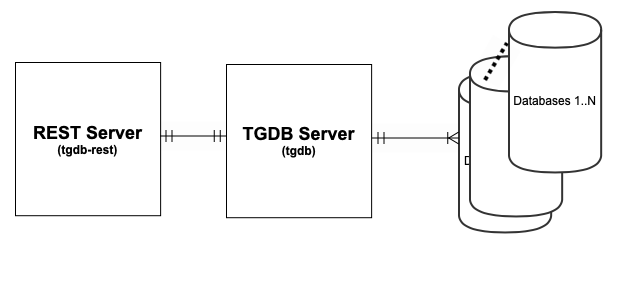

The following figure shows the relationship between the REST Server, TGDB Server and the Database. Understanding this relationship is key for deployment purposes.

The figure depicts the association between REST Server and TGDB Server as a one-to-one association, whereas the TGDB Server has one-to-many relationships with the database. This means that:

A REST Server can only communicate with one TGDB Server at a time, and this connection (pool) is established at the startup time.
The REST server connects to TGDB Server using the Proxy API user with a Proxy role. For more information on this, refer to the Authentication session section.
A TGDB Server can host multiple databases, which implies an instance of REST Server can only interact with one database and expose its services as REST resources.
This means if you have to interact with multiple databases, then you have to run multiple instances of REST servers.

Sample Deployment Topology

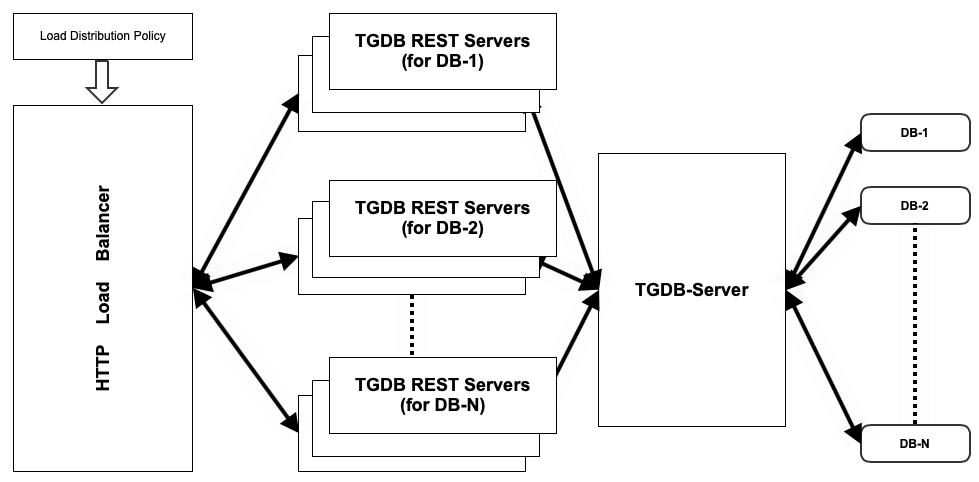

The following figure describes a sample deployment topology where you have deployed N REST servers and each REST server connects to a database hosted on TGDB Server. The components and interaction in the figure are as follows:

The HTTP Load Balancer of choice can be configured with an appropriate load distribution policy.
Set of TGDB REST Server instances (configured to connect to a particular database) can run in parallel
The above setup can potentially help achieve horizontal scalability as the number of requests grows.
The figure does not show clustering of the TGDB servers, but you could add clustering to the deployment. The TGDB-Server here is a black box either running in a StandAlone mode or in a Clustered mode.

Message Structure

The TGDB REST server is a stateless server. This means it does not maintain any of the application, or session-related state. It essentially provides a gateway between client and TGDB Server on a well-known transport and protocol, for example: HTTP 1.1/REST-JSON.

It provides transformation between the native binary message and JSON message format over a HTTP protocol. The following section describes the Request and Response semantics.

Request Structure

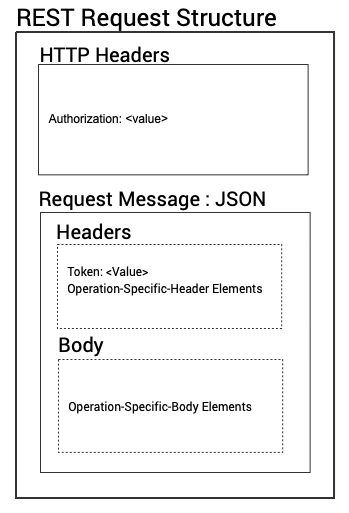

The figure below shows the general requirements for the HTTP Request. They can be GET/POST requests.

The HTTP Request consists of HTTP headers and a JSON payload.

The key fields in the structure are:.

Typically, the headers are filled in by the applications’ HTTP client library. However the HTTP Authorization header needs to be set for Authentication Service.
HTTP payload is the request message in JSON format. The JSON message consists of 2 elements

Headers (__headers__)
Body (__body__)

For each request message, you need to set the Token("__token__") property in the JSON Headers object. The value is the authorization token received on a successful Authentication Service call.
The Body object contains Operation-Specific-Header-Elements: Please refer to “Resources” section for specific operations

Response Structure

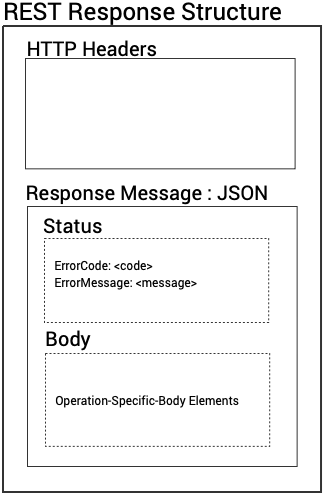

The figure below shows the general response for any request on the REST server. The response is a HTTP message with JSON payload. The HTTP headers in the response are filled in automatically by the REST server and are of little importance unless mentioned in specific Resources.

The HTTP response is JSON payload consists of the following fields:

Status(__status__) : A Structure element to hold the status result of request

ErrorCode(__errorcode__) : 0 If successful, or the respective error code for the operation
ErrorMessage(__errormessage__) : Error message description for the operation if any.

Operation-Specific-Body-Elements: Refer to the Resources section for specific operations.

Authentication Service

The TGDB REST server is a stateless and a proxy server to the graph database server. This means it connects to the TGDB server using proxy privileges and does not maintain any state of the application, or session-related state. It essentially provides a gateway between the client and server on a well-known transport and protocol, for example: HTTP1.1/REST-JSON.

Since every service needs to have appropriate privilege to access, the REST server exposes an Authentication Service for client applications to authenticate itself to the TGDB server. The flow of data and its requirements are explained with the following sequence diagram.

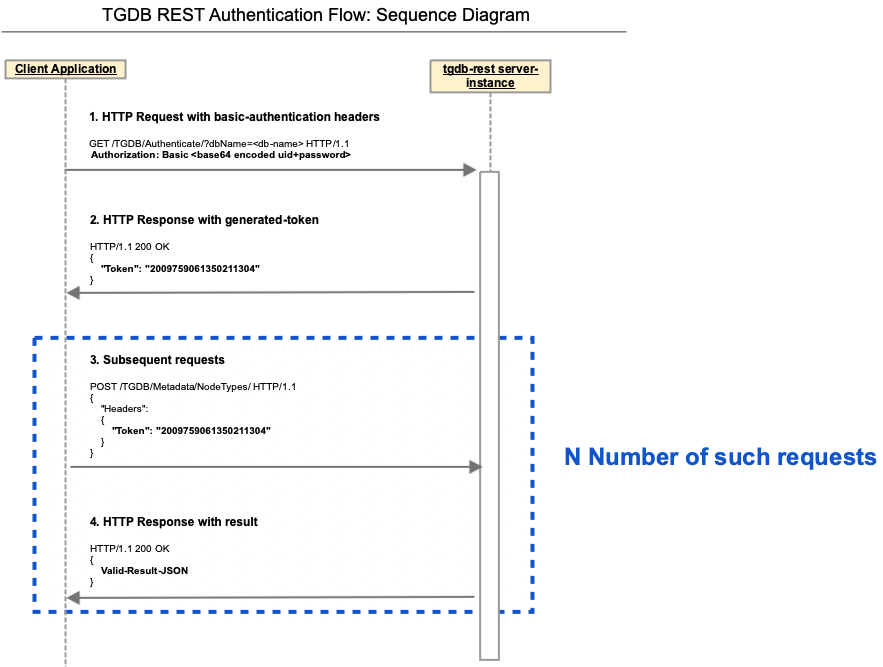

The flow is described as below

	User application sends an authentication request to the TGDB REST server using HTTP basic authentication scheme as specified in RFC 7617. For example, if the client application uses Aladdin as the username and open sesame as the password, then the field's value is the Base64 encoding of Aladdin:open sesame. Hence the Authorization header field will appear as: Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==
	The REST server authenticates the user and password with the TGDB Server on the behalf of the client app.
	Upon successful authorization, the TGDB server creates an ACL token, encoding its permission, privileges and roles, and sends a unique token id to the REST server.
	The REST server then packages the above token id in the Response message back to the client app.
	The subsequent request to the REST server needs to carry the token with each request. This token is then used to determine the access rights on the TGDB. Steps 1-4 can be repeated any number of times.
	The TGDB server manages the life cycle of the ACL token. The client needs to hold on to the token. Each token has a configurable expiry time.

Authentication Resource Schema

The following table provides the key requirements for an Authentication Service to be executed. An invalid userid/password combination returns a HTTP 401 message - invalid authentication attempt.

URI: /TGDB/Authenticate/?dbName=<database-name>

HTTP Method: GET

Input Schema:
Name	Type	Required	Description
Query Parameters		true
dbName	string	true	dbName is specified as a query parameter to the URI itself
Http Headers
Authorization	string	true	HTTP Header needed for basic-authentication.See RFC 7617.

Output Schema:
Name	Type	Required	Description
__token__	string	true	Generated token by the server; this needs to be presented in each request on the supported resources

Example

Request:

GET /TGDB/Authenticate/?dbName=routesdb HTTP/1.1

Authorization: Basic c2NvdHQ6c2NvdHQ=

Connection: keep-alive

Response:

HTTP/1.1 200 OK

Date: Wed, 16 Feb 2022 23:08:38 GMT

Content-Length: 35

Content-Type: text/plain; charset=utf-8

{

"__token__": "2009759061350211304"

}

Resources

The following resources are supported by the REST APIs:

Metadata - To request catalog information about the database.
Query - To execute queries to retrieve data using GQL.
Transactions - To execute transactions for create, update and delete of Nodes and edges on the database.

Metadata

The metadata resource is broken down into individual catalog elements such as NodeTypes, EdgeTypes, AttributeDescriptor. You can request for all the Types or a specific element. The following section provides the information about the REST API that you would need to successfully invoke the service.

Retrieve NodeType(s)
Retrieve EdgeType(s)
Retrieve AttributeDescriptor(s).

The subsequent sections provides detailed information regarding:

Resource URI
Resource Schema
Example Request-Response message and JSON formats

Retrieve NodeTypes

This service retrieves all the NodeTypes and related information associated with it. The error is encoded within the status message structure.

Resource URI

URI: /TGDB/Metadata/NodeTypes/

HTTP Method: POST

Resource Schema

Input
Name	Type	Required	Description
__headers__
__token__	string	true	The token received in Authenticate response

Output
Name	Type	Required	Description
__status__	object	true	The status of service execution
__errorcode__	int	true	0 - success. Non Zero - Error code
__errormessage__	string	true	“Null” for success. Error message for the specific code
__resultlist__	list		List of all Node types
none	object		The object name is inside, so skipped to save some bytes.
__systype__	int		A system type identifier for nodes
__id__	int		A system id for the node type
__name__	string		The node type specified

Example Message

Request:

POST /TGDB/Metadata/NodeTypes/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 73

{

"__headers__":

{

"__token__": "2009759061350211304"

}

Response:

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Wed, 16 Feb 2022 23:13:37 GMT

Content-Length: 252

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

"__resultlist__": [

{

"__systype__": 1,

"__id__": 9242,

"__name__": "airlineType"

{

"__systype__": 1,

"__id__": 9244,

"__name__": "airportType"

{

"__systype__": 1,

"__id__": 9246,

"__name__": "allianceType"

}

]

}

Retrieve a specific NodeType

This service retrieves the NodeType and specific information associated with it. In addition to the standard __token__ field, the Body is also filled in the input request. The error is encoded within the status message structure.

Resource URI

URI: /TGDB/Metadata/NodeTypes/

HTTP Method: POST

Resource Schema

Input
Name	Type	Required	Description
__headers__	object
__token__	string	true	The token received in Authenticate response
__body__	object
__name__	string	true	Name of the required NodeType

Output
Name	Type	Required	Description
__status__	object	true	The status of service execution. Same as described earlier
__errorcode__	int		0 - success. Non Zero - Error code
__errormessage__	string		“Null” for success. Error message for the specific code
__resultlist__	object	true	Node Type schema object. Note the name is still called Result list
__systype__	int		A system type identifier for nodes
__id__	int		A system id for the node type
__name__	string		The node type specified

Example Message

Request:

POST /TGDB/Metadata/NodeTypes/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 73

{

"__headers__":

{

"__token__": "2009759061350211304"

}

"__body__":

{

"__name__": "airportType"

}

Response:

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Wed, 16 Feb 2022 23:13:37 GMT

Content-Length: 252

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

"__resultlist__":

{

"__systype__": 1,

"__id__": 9244,

"__name__": "airportType"

}

Retrieve EdgeTypes

This service retrieves all the edge types and related information associated with it. The error is encoded within the status message structure.

Resource URI

URI: /TGDB/Metadata/EdgeTypes/

HTTP Method: POST

Resource Schema

Input
Name	Type	Required	Description
__headers__
__token__	string	true	The token received in Authenticate response

Output
Name	Type	Required	Description
__status__	object	true	The status of service execution
__errorcode__	int		0 - success. Non Zero - Error code
__errormessage__	string		“Null” for success. Error message for the specific code
__resultlist__	list	true	List of all Node types
none	object	true	The object name is anonymous, skipped to save some bytes.
__systype__	int		A system type identifier for nodes
__id__	int		A system id for the node type
__name__	string		The node type specified

Example Message

Request:

POST /TGDB/Metadata/EdgeTypes/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 73

{

"__headers__":

{

"__token__": "2009759061350211304"

}

Response:

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Wed, 16 Feb 2022 23:13:37 GMT

Content-Length: 252

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

"__resultlist__": [

{

"__systype__": 2,

"__id__": 1041,

"__name__": "routeType"

{

"__systype__": 2,

"__id__": 1026,

"__name__": "$def-bidirected-edge$"

⠇

{

"__systype__": 2,

"__id__": 1042,

"__name__": "memberType"

}

]

}

Retrieve a specific Edge Type

This service retrieves the specific edge type in question and its specific information associated with it. In addition to the standard __token__ field, the Body is also filled in the input request. The error is encoded within the status message structure.

Resource URI

URI: /TGDB/Metadata/EdgeTypes/

HTTP Method: POST

Resource Schema

Input:
Name	Type	Required	Description
__headers__	object
__token__	string	true	The token received in Authenticate response
__body__	object
__name__	string	true	Name of the required edge type

Output
Name	Type	Required	Description
__status__	object	true	The status of service execution
__errorcode__	int		0 - success. Non Zero - Error code
__errormessage__	string		“Null” for success. Error message for the specific code
__resultlist__	object	true	Edge Type schema object. Note the name is still called Result list
__systype__	int		A system type identifier for edge
__id__	int		A system id for the edge type
__name__	string		The edge type specified

Example Message

Request:

POST /TGDB/Metadata/EdgeTypes/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 73

{

"__headers__":

{

"__token__": "2009759061350211304"

}

"__body__":

{

"__name__": "routeType"

}

Response:

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Wed, 16 Feb 2022 23:13:37 GMT

Content-Length: 252

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

"__resultlist__":

{

"__systype__": 2,

"__id__": 1041,

"__name__": "routeType"

}

Retrieve Attribute Descriptors

This service retrieves all the attribute descriptors in the database and related information associated with it. The error is encoded within the status message structure.

Resource URI

URI: /TGDB/Metadata/AttributeDescriptors/

HTTP Method: POST

Resource Schema

Input
Name	Type	Required	Description
__headers__
__token__	string	true	The token received in Authenticate response

Output
Name	Type	Required	Description
__status__	object	true	The status of service execution as described in the earlier sections
__errorcode__	int		0 - success. Non Zero - Error code
__errormessage__	string		“Null” for success. Error message for the specific code
__resultlist__	list	true	List of all Attribute descriptors types
none	object	true	The object name is anonymous, skipped to save some bytes.
__systype__	int		A system type identifier for attributes - Always 0
__name__	string		The attribute descriptor name specified
__attrtype__	int		The type of attribute.See the enumerations below
__isarray__	boolean		Always false. For Future Use
__isencrypted__	boolean		True or False indicating if the field is encrypted
__precision__	int		Integer value indicating the precision for a Number type Attribute
__scale__	int		Integer value indicating the scale for a Number type Attribute

Attribute TypeId Enumerations

Type Id	Type Name	Encrypt?	Index ?	Description
0	Invalid	𐄂	𐄂	Invalid Attribute Type
1	Boolean	✓	𐄂	True/False type of attribute
2	Byte	✓	✓	8 bit octet
3	Char	✓	✓	Fixed 8-bit octet
4	Short	✓	✓	16 bit integer value
5	Int	✓	✓	32 bit integer value
6	Long	✓	✓	64 bit integer value
7	Float	✓	✓	Single precision 32 bit real value represented using IEEE-754
8	Double	✓	✓	Double precision 64 bit real value represented using IEEE-754
9	Number	✓	✓	Number with varying precision and scale
10	String	✓	✓	A stream of bytes represented UTF-8 chars. Max 1000 bytes.
11	Date	✓	✓	Date part of the DateTime
12	Time	✓	✓	Time part DateTime
13	TimeStamp	✓	✓	64 bit integer value representing date and time.
14	Clob	𐄂	𐄂	UTF-8 encoded string of large length.
15	Blob	𐄂	𐄂	Binary Large Object a stream of octets (unsigned bytes - 8 bit values)
16	Reserved	𐄂	𐄂	Reserved for Future use.
17	ZonedTimeStamp	✓	✓	Timestamp with souce time zone information stored
18	ZonedLocalTimeStamp	✓	✓	Timestamp converted to database default, but always returned in local timezone for each client

Example Message

Request

Response

POST /TGDB/Metadata/AttributeDescriptors/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: ceb58af2-d96e-4c7c-a624-7c397515fc01

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 89

{

"__headers__": {

"__token__": "2326030130163217188",

"Verb": "Get"

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Wed, 16 Feb 2022 23:54:21 GMT

Content-Type: text/plain; charset=utf-8

Content-Length: 2783

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

"__resultlist__": [

{

"__systype__": 0,

"__name__": "premEcoFare",

"__attrtype__": 5,

"__isarray__": false,

"__isencrypted__": false,

"__precision__": 0,

"__scale__": 0

{

"__systype__": 0,

"__name__": "active",

"__attrtype__": 1,

"__isarray__": false,

"__isencrypted__": false,

"__precision__": 0,

"__scale__": 0

⠇

{

"__systype__": 0,

"__name__": "airlineID",

"__attrtype__": 10,

"__isarray__": false,

"__isencrypted__": false,

"__precision__": 0,

"__scale__": 0

}

]

}

Retrieve Specific Attribute Descriptor

This service retrieves the specific attribute descriptor in question and its specific information associated with it. In addition to the standard __token__ field, the Body is also filled in the input request. The error is encoded within the status message structure.

Resource URI

URI: /TGDB/Metadata/AttributeDescriptors/

HTTP Method: POST

Resource Schema

Input
Name	Type	Required	Description
__headers__	object
__token__	string	true	The token received in Authenticate response
__body__	object
__name__	string	true	Name of the required edge type

Output
Name	Type	Required	Description
__status__	object		The status of service execution
__errorcode__	int	true	0 - success. Non Zero - Error code
__errormessage__	string	true	“Null” for success. Error message for the specific code
__resultlist__	object	true	Attribute Descriptor Type schema object.
__systype__	int		A system type identifier for nodes
__name__	string		The name of attribute descriptor
__attrtype__	int		The type of attribute.See the enumerations below
__isarray__	boolean		Always false. For Future Use
__isencrypted__	boolean		True or False indicating if the field is encrypted
__precision__	int		Integer value indicating the precision for a Number type Attribute
__scale__	int		Integer value indicating the scale for a Number type Attribute

Example Message

Request

Response

POST /TGDB/Metadata/EdgeTypes/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 73

{

"__headers__":

{

"__token__": "2009759061350211304"

}

"__body__":

{

"__name__": "premEcoFare"

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Wed, 16 Feb 2022 23:13:37 GMT

Content-Length: 252

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

"__resultlist__":

{

"__systype__": 0,

"__name__": "premEcoFare",

"__attrtype__": 5,

"__isarray__": false,

"__isencrypted__": false,

"__precision__": 0,

"__scale__": 0

}

Query

The REST server exposes the TGDB GQL capabilities through this service. The service takes in the gremlin query as a string and with certain query parameters, and returns the result in a JSON format. The resultant schema is completely dependent on the input query unlike SQL which is always tabular. The resultant JSON schema can be very nested and is available via the __annot__ property of the ResultSet.

Resource URI

URI: /TGDB/Query/

HTTP Method: POST

Resource Schema

Input
Name	Type	Required	Description
__headers__	object
__token__	string	true	The token received in Authenticate response
__fetchsize__	string	false	Set a limit on the number of entities returned. Use the limit step instead.
__traversaldepth__	string	false	Sets the additional level of traversal from the query result set. Default: 3.
__sortorder__	string	false	Sets the sort order (“asc”\|”dsc”). Default: “asc”.
__body__	object
__query__	string	true	The input query. This must start with gremlin://

Output
Name	Type	Required	Description
__status__	object		The status of service execution
__errorcode__	int	true	0 - success. Non Zero - Error code
__errormessage__	string	true	“Null” for success. Error message for the specific code
__resultlist__	list	true	Node Type schema object. Note the name is still called Result list
none	object		This object definition is based on the Resultant __annot__ation. You can also infer from the JSON to Object mapping.
__metadata__	object	true	The Metadata object associated with the Resultset
__annot__	string	true	The result set annotations. See the Query Guide Appendix for annotations

Example Message

Request

Response

POST /TGDB/Query/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: 25b00bb9-9877-4112-834d-b81ac544d8db

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 303

{

"__headers__": {

"__token__": "4499535304150073438",

"__batchsize__": "51",

"__fetchsize__": "1001",

"__traversaldepth__": "4",

"__sortorder__": "asc",

"__sortresultlimit__": "2002"

"__body__": {

"__query__": "gremlin://g.V().has('airlineType','country','Colombia');"

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Thu, 17 Feb 2022 00:11:50 GMT

Content-Length: 2855

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

"__resultlist__": [{

"__id__": 2147485335,

"__type__": "airlineType",

"__vers__": 1,

"name": "Coronado Aerolineas",

"icaoCode": "CRA",

"active": false,

"iataCode": "null",

"airlineID": "AIRLINE1895",

"category": "null",

"alliance": "null",

"country": "Colombia"

}, {

"__id__": 2147483823,

"__type__": "airlineType",

"__vers__": 1,

"active": false,

"iataCode": "null",

"airlineID": "AIRLINE4314",

"category": "null",

"alliance": "null",

"country": "Colombia",

"name": "SAM Colombia",

"icaoCode": "SAM"

⠇

{

"__id__": 2147487333,

"__type__": "airlineType",

"__vers__": 1,

"country": "Colombia",

"name": "Transporte del Caribe",

"icaoCode": "TCB",

"active": false,

"iataCode": "null",

"airlineID": "AIRLINE4885",

"category": "null",

"alliance": "null"

}],

"__metadata__": {

"__annot__": "[V]"

}

Transactions

TGDB supports transactions to atomically create, update and delete database entities. The REST server exposes this transaction as a service for applications to consume. The input to the service is a transaction change list which is a list of items that are to be inserted, updated and deleted. Each operation is contained in its own list. Items in each list are mutually exclusive. An entity cannot be present in an insert list and a delete list, and all other possible combinations. Upon successful invocation, the transaction will either commit to the database or be rejected and the reasons for failure will be available in the resultant status object.

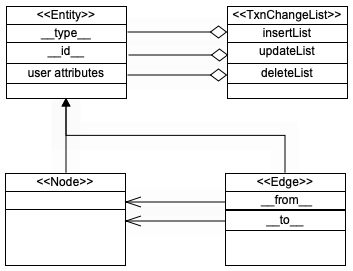

For the purpose of REST service API, the entity-relation diagram for data model is shown below.

Node Representation

A node is an entity and has a set of attribute name and value pair. The JSON representation flattens it out for simplicity as it can be mapped as a Map object or as a structure with specific field names. Every entity that needs to be operated on has to specify the typename.

The following table describes the JSON representation of the entity.

Name	Type	Req?	Description
__type__	string	Y	The type name of the Node.
__id__	long	N	A transient id for the entity. ReadOnly. Typically returned as result of the query.
attr1	string	N	A string representation value of attr1. Attr1 must be defined in the database
attr2	string	N	Same as above
⠇
attrN	string	N	Same as above

Entity ID

An Entity consists of a readonly 64-bit long id (__id__). These IDs are for internal purposes, but are exposed for certain use cases, where they can provide performance benefits in a secure, coherent and consistent basis.

The following rules and constraints are in place and should be followed at all times:

Entity ID should not be used for entity identification purposes.
Entity IDs are typically convoluted using session information and its underlying keys for security reasons. These IDs are not guaranteed to be unique.
Applications should not rely on the Entity IDs uniqueness.
Application should not persist Entity IDs as correlation IDs, and should rely only on the primary key defined for the Entity Type for the entity’s identification.
Edge IDs are reference IDs, and not Entity IDs. They can be used as part of the Composite Key for identifying the edge for update or delete operations.
Applications should take extreme caution to hold on to Edge IDs as the Life Cycle Management events are not published.

Composite Key Representation

A Composite Key (__compkey__) is a set of keys that can uniquely identify an entity or an arbitrary set of entities based on its completeness. The composite key is a subset of an entity’s representation. It contains the typename through which the entity’s metadata can be inferred and the entity's subset key by which the node instance(s) can be identified. For an edge creation, it is typical to use the node’s primary key. Refer to the Constraint section for more details. The representation is as follows:

Name	Type	Req?	Description
__type__	string	Y	The type name of the Edge. It can be a NodeType or an EdgeType
key1	string	Y	Primary Key 1 of the node
⠇
keyN	string	Y	Primary key N

Edge JSON Representation

Each edge is an entity and connects two nodes. The __from__ is the starting node and __to__ is the endpoint. The JSONrepresentation for edge is described in the following table.

Name	Type	Req?	Description
__type__	string	Y	The type name of the Edge. It can be a NodeType or an EdgeType
__id__	long	N	A transient id for the entity. ReadOnly. Typically returned as result of the query.
attr1	string	N	A string representation value of attr1. Attr1 must be defined in the database
attr2	string	N	Same as above
⠇
attrN	string	N	Same as above
__from__	__compkey__	Y	An instance of an existing node whose primary key is provided. Not the full node.
__to__	__compkey__	Y	An instance of an existing node whose primary key is provided. Not the full node.

Entity Constraints

The following constraints should be adhered to for the operations to be successful.

Insert operation requires the following

__type__ and all the attributes specified for the insert to be successful.
The primary key for Node Type as specified in __type__ attribute if present must be specified, non null and unique
Any other unique index on the Node Type specified should also have its attribute filled.

Insert of Edge requires the following

__type__ and all the attributes specified for the insert to be successful.
__from__ and __to__ attributes must be specified. These are of the type composite key and require that it must be the Primary Key of the node.
Nodes must exist either in the database, or in the Insert List. It is preferred that the Nodes be inserted first, before adding the edges.
The from and to nodes must adhere to the Composite Key specification.

Updating or Deleting a Node requires the following

To update or delete a unique entry - adhere to Composite Key specifications.
To update or delete a set of entries - The result retrieved by the Composite Key will be applied to all the entries for the Type.
Only exact matches are supported.

Updating or Deleting a Edge requires

Retrieve the Edge using the Query API.
Use the Edge’s reference ID to update or delete the using the Composite key specification

Resource URI

URI: /TGDB/Transaction/

HTTP Method: POST

Resource Schema

Input
Name	Type	Req?	Description
__headers__	object
__token__	string	true	The token received in Authenticate response
__body__	object		At least one list must be provided. An Empty Transaction is invalid.
__insertlist__	list<entity>	N	A list of entities to be inserted. It can be Node or an Edge. For an Edge, 2 attributes __from__ and __to__ must be of the Composite Key Type.
__updatelis_t_	list<entity>	N	A list of entities to be updated. Note for Node, the Composite key must be supplied.
__deletelis_t_	list<compkey>	N	A list of entities with their primary keys. Node’s deletion invalidates the edges.

Output
Name	Type	Required	Description
__status__	object		The status of service execution
__errorcode__	int	true	0 - success. Non Zero - Error code
__errormessage__	string	true	“Null” for success. Error message for the specific code

The following section shows various examples of Transaction:

Node Insertions
Edge Insertions
Node Updates
Node Deletes
Edge Updates and Deletes
All together.

Example Message - Insert Nodes

This example shows a transaction inserting multiple nodes of different types.

Request

Response

POST /TGDB/Transaction/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: 25b00bb9-9877-4112-834d-b81ac544d8db

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 303

{

"__headers__":

{

"__token__": "1892514230251092075"

"__body__":

{

"__insertlist__": [{

"__type__": "airlineType", "active": "true",

"airlineID": "AIRLINE5209",

"country": "USA",

"iataCode": "UA",

"icaoCode": "UAL",

"name": "United Airlines"

⠇

{

"__type__": "airportType",

"airportID": "AIRPORT3469",

"name": "San Francisco International Airport",

"city": "San Frankisco",

"country": "USA",

"iataCode": "SFO",

"lat": "37.61899948120117",

"lon": "-122.375",

"elevation": "13",

"utc": "8",

"tzname": "America/Los_Angeles",

“airportID”:

}]

}

Note: The city’s name is purposefully set to the wrong spelling, and it will be corrected in the Update example.

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Thu, 17 Feb 2022 00:11:50 GMT

Content-Length: 2855

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

}

Example Message - Insert Edges

This example shows transaction inserting multiple United Airlines flights between any two airports as edges.

Note the primary key for the AirportType is the airportID.

Request

Response

POST /TGDB/Transaction/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: 25b00bb9-9877-4112-834d-b81ac544d8db

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 303

{

"__headers__":

{

"__token__": "1892514230251092075"

"__body__":

{

"__insertlist__": [{

"__type__": "routeType",

"name": "United Airlines",

"iataCode": "UA",

"distance": "1005",

"1stClsFare": "2185",

"bizClsFare": "761",

"premEcoFare": "437",

"ecoFare": "430",

"__from__": {

"__type__": "airportType",

"airportID": "AIRPORT1840"

"__to__": {

"__type__": "airportType",

"airportID": "AIRPORT3550"

}

⠇

{

"__type__": "routeType",

"name": "United Airlines",

"iataCode": "UA",

"distance": "1612",

"1stClsFare": "3587",

"bizClsFare": "1295",

"premEcoFare": "438",

"ecoFare": "423",

"__from__": {

"__type__": "airportType",

"airportID": "AIRPORT2890"

"__to__": {

"__type__": "airportType",

"airportID": "AIRPORT3494"

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Thu, 17 Feb 2022 00:11:50 GMT

Content-Length: 2855

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

}

Example Message - Updating Nodes

This example shows a transaction updating multiple edges. We are updating the United Airlines node identified by “AIRLINE5209” with alliance and category attributes. In this case we are adding the attributes. Similarly, in the same transaction, for the airport San Francisco identified by “AIRPORT3469”, the city’s name is corrected and the icaoCode is also specified.

See the Insert nodes example to compare the data.

Request

Response

POST /TGDB/Transaction/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: 25b00bb9-9877-4112-834d-b81ac544d8db

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 303

{

"__headers__":

{

"__token__": "1892514230251092075"

"__body__":

{

"__updatelist__": [{

"__compkey__": {

"__type__": "airlineType",

"airlineID": "AIRLINE5209",

"alliance": "SA",

"category": "fullservice"

⠇

{

"__compkey__": {

"__type__": "airportType",

"airlineID": "AIRPORT3469",

"city": "San Francisco",

"icaoCode": "KSFO"

}]

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Thu, 17 Feb 2022 00:11:50 GMT

Content-Length: 2855

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

}

Example Message - Deleting Nodes

This example shows a transaction deleting multiple nodes. The first entry in the list deletes all airlineType instances whose “active” status is false. The second one deletes a specific instance airport identified by the primary key “AIRPORT5000”

Request

Response

POST /TGDB/Transaction/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: 25b00bb9-9877-4112-834d-b81ac544d8db

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 303

{

"__headers__":

{

"__token__": "1892514230251092075"

"__body__":

{

"__deletelist__": [{

"__compkey__": {

"__type__": "airlineType", "active": "false",

}

⠇

{

"__compkey__" : {

"__type__": "airportType",

"airportID": "AIRPORT5000"

}

}],

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Thu, 17 Feb 2022 00:11:50 GMT

Content-Length: 2855

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

}

Example Message - Updating and Deleting Edges

This example shows a transaction how to update and delete multiple edges. To update and delete the edges, a query must be run to get Edges’ reference ID, and that reference ID should be used to update and delete.

Request

Response

POST /TGDB/Query/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: 25b00bb9-9877-4112-834d-b81ac544d8db

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 303

{

"__headers__":

{

"__token__": "1892514230251092075"

"__body__":

{

"__updatelist__": [{

"__compkey__": {

"__type__": "routeType",

"__id__": "85431289"

}

"premEcoFare": "337",

"ecoFare": "330"

⠇

"__deletelist__": [{

{

"__compkey__": {

"__type__": "routeType",

"__id__": "85431000"

}

}],

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Thu, 17 Feb 2022 00:11:50 GMT

Content-Length: 2855

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

}

Example Message - Putting all together

This example shows a transaction inserting multiple edges. Inserting United Airlines flight between any two airports.

Request

Response

POST /TGDB/Transaction/ HTTP/1.1

Content-Type: text/plain

User-Agent: PostmanRuntime/7.28.4

Accept: */*

Postman-Token: 25b00bb9-9877-4112-834d-b81ac544d8db

Host: localhost:9600

Accept-Encoding: gzip, deflate, br

Connection: keep-alive

Content-Length: 303

{

"__headers__":

{

"__token__": "1892514230251092075"

"__body__":

{

"__insertlist__": [{

"__type__": "airlineType",

"active": "true",

"airlineID": "AIRLINE_002",

"alliance": "None",

"category": "budget",

"country": "USA",

"icaoCode": "KMCU",

"name": "New Airline 2"

}],

"__deletelist__": [{

"__compkey__" : {

"__type__": "airportType",

"airportID": "AIRPORT5000"

}

}],

"__updatelist__": [{

"__compkey__": {

"__type__": "airlineType",

"airlineID": "AIRLINE5209",

"alliance": "SA",

"category": "fullservice"

⠇

{

"__compkey__": {

"__type__": "airportType",

"airlineID": "AIRPORT3469",

"city": "San Francisco",

"icaoCode": "KSFO"

}]

}

HTTP/1.1 200 OK

Access-Control-Allow-Origin: *

Date: Thu, 17 Feb 2022 00:11:50 GMT

Content-Length: 2855

Content-Type: text/plain; charset=utf-8

{

"__status__": {

"__errorcode__": 0,

"__errormessage__": "null"

}

Security Considerations

The security of the solution involving TGDB, needs to consider the following areas:

Transport Choices
Authentication and Authorization
Data Sensitivity
Deployment Choices

Transport

The current communication between application and the TGDB REST server uses:

HTTP/JSON as transport -protocol mechanism.
HTTPs/JSON as transport -protocol mechanism.

HTTP is unsecured and JSON is a clear text sent over a physical network.

HTTPs is supported on TLS1.2+ versions and only a set of CipherSuites. The Cipher Suites are listed below.

TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,
TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,
TLS_RSA_WITH_AES_256_GCM_SHA384,
TLS_RSA_WITH_AES_256_CBC_SHA,

TGDB REST server provides a built-in self signed certificate mechanism for clients to use.

Authentication & Authorization

The current scheme of authentication is Basic Authentication as described in RFC 7617. It is simple and easy to implement, however comes with its own set of security challenges.

TGDB REST server itself is a proxy to the database, and requires every client to authenticate using their username+password combination.

Since the current communication protocol is JSON, clear text is being sent over the physical network, and the Authentication scheme being Basic Authentication, username+password is never encrypted. This raises significant security concerns using HTTP as a transport of production choice.

Authorization defines access rights on database entities. TGDB provides comprehensive roles, permissions and privileges on database entities. Ensure that the user has the necessary and sufficient permissions and privileges to perform operations

Data Sensitivity

TGDB supports field level encryption, and access control at NodeType, EdgeType. This feature is at the database level, and the native API (Java, GO, and Python) supports field level encryption. However REST server is a stateless communication protocol between client and itself, and there is no mechanism to exchange encryption keys, the communication either requires

Transport to be secure
Encrypt using client’s key and send it as binary
Design the system accordingly.

For instance, point ‘c’ merely states that encrypted fields on a database are on its own NodeType as opposed to being part of nodetype’s attribute. This design can have its own merit/demerit in terms of performance, simplicity, and storage capacity.

Deployment Choices

Security and System Performance dictate deployment choices. At times there could be tradeoffs done to achieve. System Performance is an overarching umbrella that could consider:

Overall throughput of the system
Mean time between recovery
Lifecycle management of entities
Simplicity or complexity of management

Security guidelines can provide the best and efficient ways to secure transport, data, and at the same time be performant. It would be easy to dictate everything to run on HTTPs transport, but it has to pay the cost of encryption/decryption for every request and that may not be necessarily ideal.

Here are some deployment choices that can be useful.

Development can be done on HTTP transport and secured under VPN tunnel
Containerized and isolated environments for Development, QA, Production
On the Production system, deploy it behind a firewall, and have HTTPs transport between application and the REST server.

Variations could be the Authentication Service is exposed on HTTPs, and the rest can use the unsecured HTTP for performance reasons.
Let the user choose which one is appropriate

Follow your company’s security guidelines, and ensure the deployment has considered all aspects of the business needs to run in secured environments with optimum performance.

Appendix

A - Reserved Words

The table shows the list of words that are reserved for internal use. They can be used as attribute names, collection names, header names etc. In general any sequence of characters that begin in “__” and end in “__” are considered to be reserved by the TGDB namespace.

__annot__	__errormessage__	__isarray__	__resultlist__	__to__
__attrtype__	__fetchsize__	__isencrypted__	__scale__	__token__
__batchsize__	__from__	__metadata__	__sortorder__	__traversaldepth__
__body__	__headers__	__name__	__sortresultlimit__	__type__
__deletelist__	__id__	__precision__	__status__	__updatelist__
__errorcode__	__insertlist__	__query__	__systype__	__vers__
