LPAD: Left-Padding a Character String

LPAD uses a specified character and output length to return a character string padded on the left with that character.

Pad a Character String on the Left

LPAD(string, out_length, pad_character)

where:

string

Fixed length alphanumeric

Is a string to pad on the left side.

out_length

Integer

Is the length of the output string after padding.

pad_character

Fixed length alphanumeric

Is a single character to use for padding.

Left-Padding a String

In the following request against the WF_RETAIL data source, LPAD left-pads the PRODUCT_CATEGORY column with @ symbols:

DEFINE FILE WF_RETAIL

LPAD1/A25 = LPAD(PRODUCT_CATEGORY,25,'@');

DIG1/A4 = DIGITS(ID_PRODUCT,4);

END

TABLE FILE WF_RETAIL

SUM DIG1 LPAD1

BY PRODUCT_CATEGORY

ON TABLE SET PAGE NOPAGE

ON TABLE SET STYLE *

TYPE=DATA,FONT=COURIER,SIZE=11,COLOR=BLUE,$

END

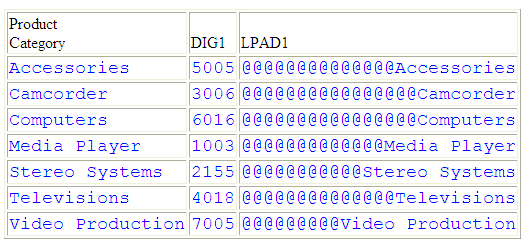

The output is:

LPAD left-pads the PRODUCT_CATEGORY column with @ symbols:

LPAD(PRODUCT_CATEGORY,25,'@')

For Stereo Systems, the output is @@@@@@@@@@@Stereo Systems.

Usage Notes for LPAD

  • To use the single quotation mark (') as the padding character, you must double it and enclose the two single quotation marks within single quotation marks (LPAD(COUNTRY, 20,''''). You can use an amper variable in quotation marks for this parameter, but you cannot use a field, virtual or real.
  • Input can be fixed or variable length alphanumeric.
  • Output, when optimized to SQL, will always be data type VARCHAR.
  • If the output is specified as shorter than the original input, the original data will be truncated, leaving only the padding characters. The output length can be specified as a positive integer or an unquoted &variable (indicating a numeric).
