Configuring Geographic Information

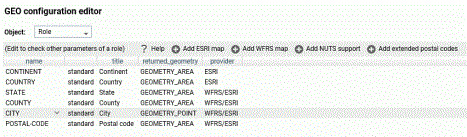

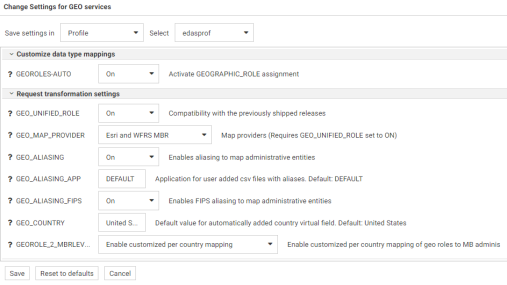

The following standard unified geographic roles are configured by default and cannot be changed. These geographic roles create a hierarchy that can be used to drill down or up between levels of administration in maps, reports, or charts.

• CONTINENT.
• COUNTRY.
• STATE.
• COUNTY.
• CITY.
• POSTAL CODE.

To add a geographic role to the configuration, you can add a new Esri map or a shapefile hosted by the Server and associate a geographic role with the new map. You can also implement NUTS geographic roles support.

Configuring Properties of Geographic Roles

The following describes columns for geographic roles in the configuration editor.

When you have configured the properties, click OK to return to the Geo Configuration Editor.

The new role will display on the list of roles, Click Save to save it in the geographic configuration.

Adding a New Role for an Esri Map

To add an Esri geographic role, click Add ESRI map on the Geographic Configuration Editor.

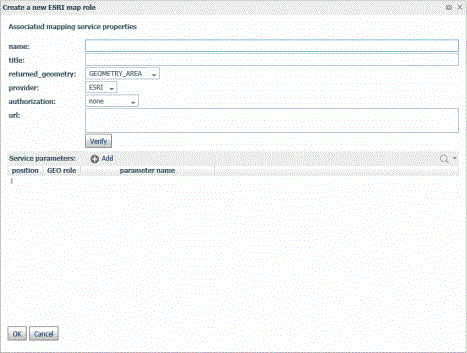

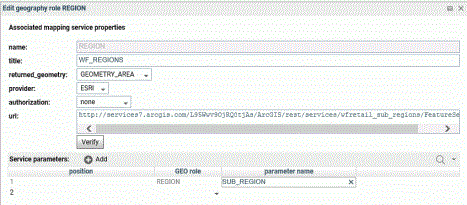

The Create a new ESRI map role dialog opens, as shown in the following image.

Configure the following map service properties.

Adding a New Role for a Server-Hosted Map

A server-hosted map is based on a shapefile. You must upload the shapefile (.dbf) to an application folder accessible to the server. The server will transform it to ibijson format.

An ESRI shape file is actually a collection of at least four files:

• .dbf file. The .dbf file is a standard database file used to store attribute data and object IDs. A .dbf file is mandatory for shape files.
• .shp file. The .shp file is a mandatory Esri file that gives features their geometry. Every shapefile has its own .shp file that represents spatial vector data.
• .shx file. The .shx file is a mandatory Esri shape index position file. This type of file is used to search forward and backward.
• .prj file. The .prj file is an optional file that contains the metadata associated with the shapefiles coordinate and projection system.

All files must have exactly the same name and to be located in the same directory. If they are not, the shapefile conversion will fail. Additionally, the names must not contain spaces.

When there are several possible keys associated with a geometry, a drop-down list of detected key names will be displayed. Select any one of these fields. No selection required when there is a single geometry key.

The shapefile should only be in the GCS_WGS_1984 - World Geodetic System 1984 (decimal degrees) coordinate system.

To add a geographic role for a Server-hosted map, click Add WFRS map on the Geographic Configuration Editor.

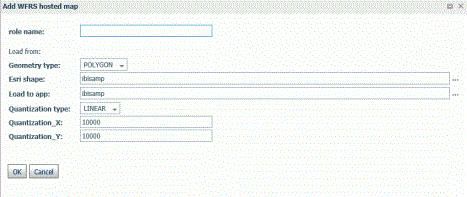

The Add WFRS hosted map dialog opens, as shown in the following image.

Configure the following properties.

If the map has multiple keys, a drop-down list displays so that you can select one.

Click OK when you have finished configuring the properties.

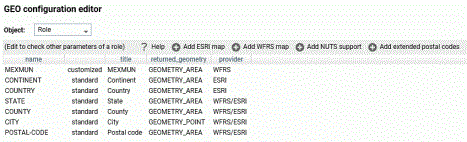

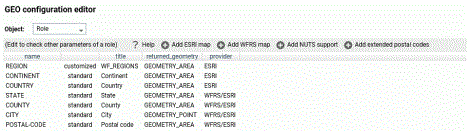

The new role is added to the configuration as a customized role, as shown in the following image.

Click Save to save this role to the configuration.

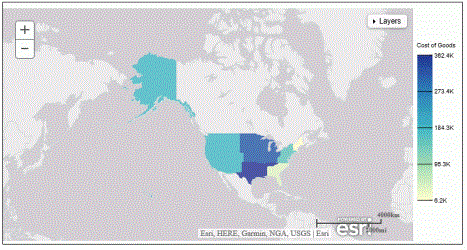

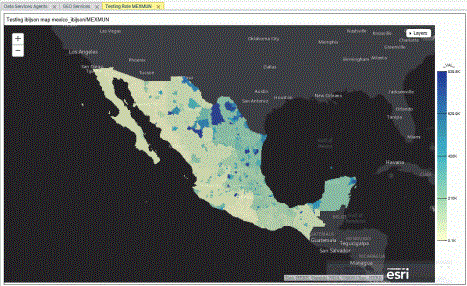

You can test the role by right-clicking the role in the configuration editor and clicking Test. A sample map will be generated, as shown in the following image.

Adding NUTS Support

Nomenclature of territorial units for statistics (NUTS) are geographic roles specific to the European Union.

To add NUTS geographic roles to the configuration, click Add NUTS support on the Geographic Configuration Editor.

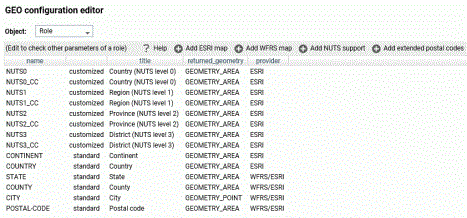

The NUTS geographic roles are added, as shown in the following image.

Click Save to save these roles to the configuration.

Adding Support for Extended Postal Codes

Click Add extended postal codes to add support for Level 1 and Level 2 postal codes used in certain countries.

Customizing Vocabulary Rules

For each geographic role, a set of vocabulary rules define how to recognize when a field name should automatically be assigned to that role. If you right-click a role, you can click Customize vocabulary from the shortcut menu.

Elements in a rule are connected by the Boolean logic operation OR (only one needs to be satisfied). Each vocabulary element contains words enclosed with special characters. Words in the rule element are connected by the Boolean logic operation AND (all need to be satisfied).

A word may be prefixed and/or suffixed with the percent character (%), which is a placeholder for any sequence of characters. If an element contains more than one word, each word has to be prefixed by the character plus (+) or minus (-). Plus indicates that the word must be found in the column name. Minus indicates that word must not be found in the column name.

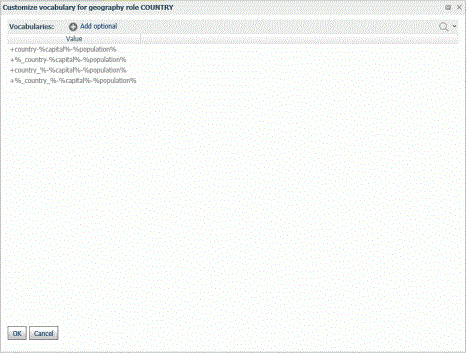

For example, the following are the vocabulary rules for the role COUNTRY.

To add another rule, click Add optional.

When you are finished, click OK.

Click Save to save these rules to the configuration.

You can edit an existing basemap definition or add a custom basemap.

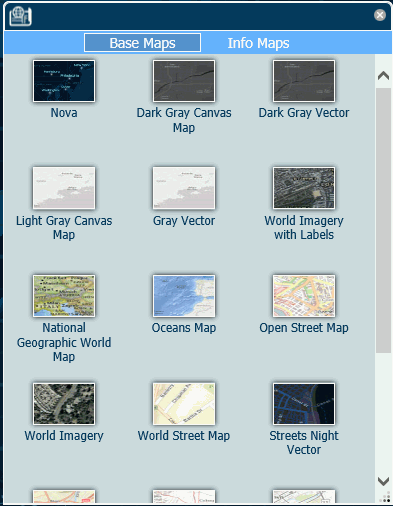

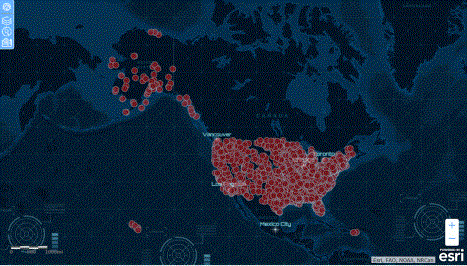

Basemaps that are not vector maps are pre-rendered image tiles. Vector basemaps are delivered from ArcGIS Online as vector tiles that are rendered on the client based on a style file that is delivered with the vector tiles. This provides customization options not available with pre-rendered image tiles.

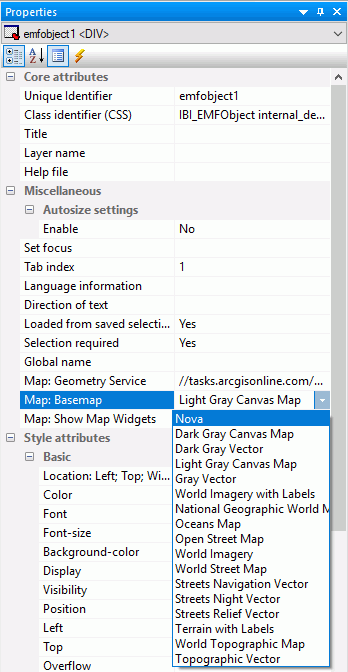

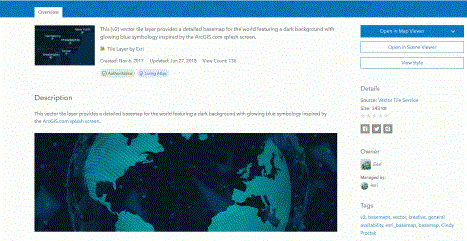

A default set of vector basemaps is configured in the GEO configuration editor in the Server. However, you can configure additional vector basemaps as needed. You can find the basemap URLs and Style URLs at http://www.arcgis.com.

Using Standard Basemaps

To add a new basemap or customize an existing basemap, select Basemap from the Object drop-down list.

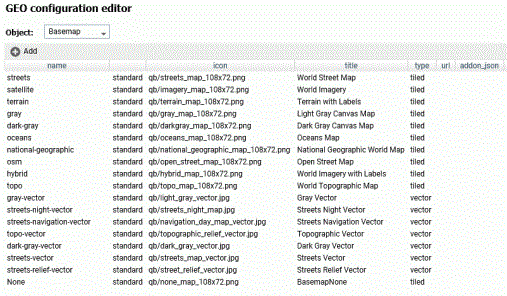

The following image shows the GEO configuration editor with the Basemap object selected, showing the list of standard basemaps.

Configuring Basemap Properties

The following is a description of the properties used for basemap configuration.

  {"baseMapLayers":

   [

     {"url": "url_to_map_service", "styleUrl": "url_to_style"},

     {"url": "url_to_map_service", "styleUrl": "url_to_style"},

      ...

   ]

  }

Editing the Properties of a Standard Basemap

To customize the properties of an existing basemap, right-click the basemap line and click Customize BASEMAP.

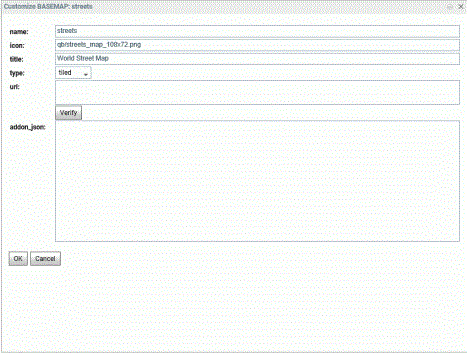

The Customize Basemap dialog opens, as shown in the following image.

Edit the properties you want to change. If you change the URL, you can click Verify to make sure the map service is valid and accessible.

When you are finished, click OK, then click Save on the GEO configuration editor Basemaps page.

Adding a Custom Basemap

To add a new basemap to the configuration, click Add.

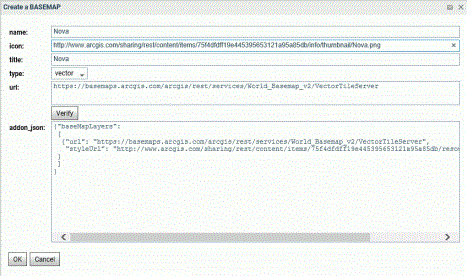

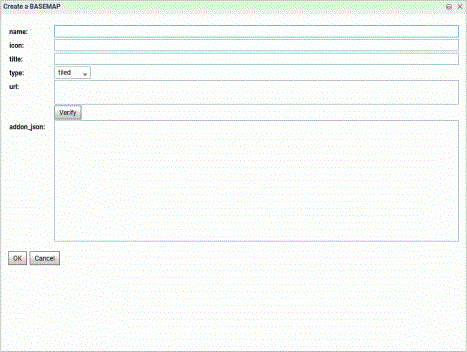

The Create a BASEMAP dialog opens, as shown in the following image.

Enter a name for the basemap, a URL to the thumbnail, a title to display, and the URL to the map service that provides the basemap, and click Verify.

When you have configured the properties, click OK, then click Save on the GEO configuration editor Basemap page.

To add a new context layer or customize an existing context layer, select ContextLayer from the Object drop-down list.

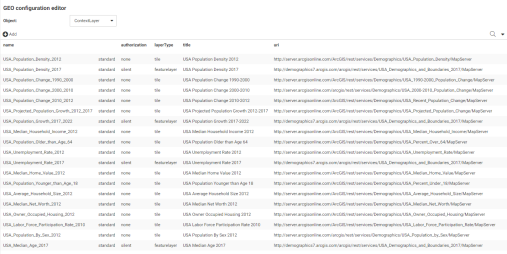

The following image shows the GEO configuration editor with the ContextLayer object selected.

Configuring Context Layer Properties

Following is a description of the properties used for context layer configuration.

"layerObjectType" : "esri/layers/ArcGISDynamicMapServiceLayer",

    "smartMapping": { "webMapInfo": {

        "queryString" : "id:id",

        "itemDataUrl" : "url",

        "layerTypeEx" : "layerType"

}}

"layerObjectType" : "esri/layers/ArcGISTiledMapServiceLayer",

"smartMapping": { "webMapInfo": {

    "queryString" : "id:1234567890abcdefghij1234567890ab",

    "itemDataUrl" :

"https://services5.arcgis.com/1234567890abcdef/arcgis/rest/services/Layer_Name/FeatureServer",

    "layerTypeEx" : "map-image"

    }

}

Customizing the Properties of an Existing Context Layer

To customize the properties of an existing context layer, click the down arrow next to a context layer name or right-click the context layer line and click Customize context layer.

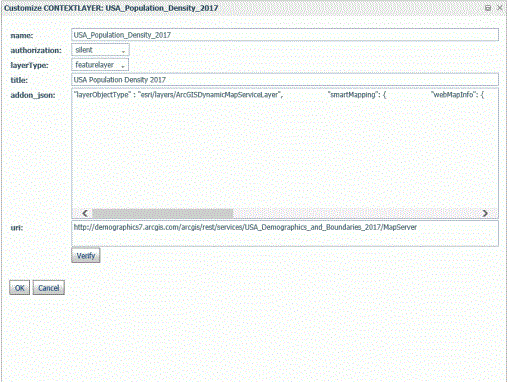

The Create a Custom CONTEXTLAYER dialog opens. The completed dialog may resemble the one shown in the following image.

Edit the properties you want to change. If you change the URI, you can click Verify to make sure the map service is valid and accessible.

When you are finished, click OK, then click Save on the GEO configuration editor Context Layers page.

Adding a New Context Layer

To add a new context layer to the configuration, click Add.

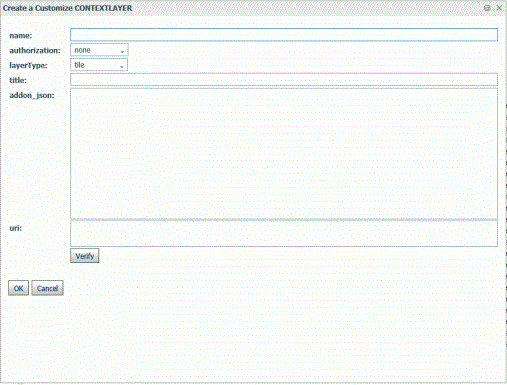

The Create a Customized CONTEXTLAYER dialog opens, as shown in the following image.

Enter a name for the context layer, the authorization type, a layer type, a title to display, any additional JSON needed for rendering the context layer, and the URI to the map service that provides the context layer, and click Verify.

When you have configured the properties, click OK, then click Save on the GEO configuration editor Context Layer page.
