Column Formats and Mapping

When you add transformations using either the Source or Target Transformations window, you can assign formats to the columns that you are adding. There are four types of column formats:

  • Alphanumeric formats. Composed of letters, numbers, or special characters. There are three alphanumeric formats:
    • Fixed Alphanumeric. Used for fixed-length columns. The maximum length is 256.
    • Variable Alphanumeric. Used for variable-length columns. The maximum length is 4,096.
    • Text. Used for text columns, such as MS SQL Server VARCHAR(MAX) or an ORACLE CLOB.
    • String. Used for columns in Relational databases that have a STRING format, which supports text data of unlimited length.
  • Numeric formats. Composed of the digits 0 through 9 and, optionally, a minus sign. There are four numeric formats:
    • Integer. Used for whole numbers, using 4 bytes of storage and a maximum number of 9 positions. Numbers after the decimal are truncated.
    • Float. Used for whole numbers or fractions, using 4 bytes of storage and a maximum number of 9 positions.
    • Double. Used for whole numbers or fractions, using 8 bytes of storage and a maximum number of 15 positions.
    • Decimal. Used for whole numbers, using one byte for every two digits, plus a sign and a maximum number of 15 positions. This type of column will automatically round any number with more than the specified number of decimal places to the number of decimal places in the format. This is recommended for monetary values.

    For more information about numeric formats, see Numeric Format Options.

  • Date and time formats. Composed of dates and times or date and time components. There are three formats:
    • Date. Used for dates and provides combinations of year, month, day, and quarter.
    • Time. Used for times and provides combinations of hour, minute, second, and millisecond.
    • DateTime (Timestamp). Used for both dates and times and provides combinations of year, month, and day for dates, and hour, minute, second, millisecond, and microsecond for time.
  • Hexadecimal. Displays the hexadecimal representation of a field value.
  • BLOB. Represents a Binary Large Object. A BLOB is used to store an image, sound, or some other large, unstructured block of data. The corresponding database data types are:
    • ORACLE - BLOB
    • MS SQL Server - Varbinary (max)
    • Informix - Byte
    • Db2 - BLOB

    A column described as BLOB can only be copied from source to target. No transformations can be performed.

Rules for Mapping and Column Formats

Columns that you map to each other must have the same format, or ibi Data Migrator must be able to translate the source query format into the target format automatically. Details are shown in the following table:

If the Target format is...

...and the Source query format is...

Can you map?

A11

A10

Yes

A10

A11

No. Use the EDIT or SUBSTR functions to make this work.

D6.2

I5

Yes

I10

D6.2

Yes, but you will lose the numbers after the decimal.

A10

D6.2

No

Format a Column as Alphanumeric or Numeric

If you are creating a new or virtual column, you need to assign a format to the column. You can assign a format in two ways:

  • By typing the format into the Format field in the Transformation Calculator.
  • By using the Define Properties dialog.

To use the Define Properties dialog:

    Procedure
  1. From the Transformation Calculator, click the ellipsis (...) button to the right of the Format field.

    The Define Properties dialog opens.

  2. Select a format from the Type dropdown menu.
  3. Click OK.

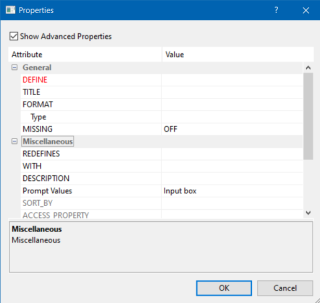

Define Properties dialog

To access the Define Properties dialog from the Transformation Calculator, click the ellipsis (...) button to the right of the Format field. To see the Miscellaneous properties, select the Show Advanced Properties checkbox.

The Define Properties dialog has the following fields and options:

DEFINE

An optional attribute that is used to create a virtual field for reporting.

FORMAT

The format name of the column.

Type

The format type of the column.

Note: The options available will depend on the type of format selected.
MISSING

Indicates if the results can be missing. The following options are available:

  • OFF. The result is never missing.
  • ON. The result is missing only if all missable fields are missing.
  • ON ALL. The result is missing if any missable fields are missing.
REDEFINES

Lets you redefine or recompute a field whose name exists in more than one segment.

WITH

Lets you identify the logical home of the defined calculation, if no fields from the synonym are used in the expression or have been defined.

DESCRIPTION

An optional attribute that enables you to provide comments and other documentation for a field within the Master File. Comments can be up to 2048 characters in length.

Prompt Values

Optional accept values for the define. Choices are:

  • Input box. The user enters a value.
  • Static list of values. A field appears with an ellipsis. When you click it, a dialog opens for adding values.
  • Synonym based dynamic list of values. Fields open for entering a Lookup Synonym, Lookup Field, and Lookup Display Field.
  • Procedure based dynamic list of values. Fields open for entering a Lookup Procedure, Lookup Procedure Parameters, Lookup Field, and Lookup Display Field.
SORT_BY

Is the name of the sort by field.

ACCESS_PROPERTY

To make this a field that will not display in sample data or in the list of available fields, select the INTERNAL checkbox.

GEOGRAPHIC_ROLE

Assigns a geographic role to the field. Choices are:

  • ADDRESS_FULL. Full address.
  • ADDRESS_LINE. One line of address.
  • CITY. City name.
  • CONTINENT. Continent name.
  • COUNTRY. Country name.
  • COUNTY. County name.
  • GEOMETRY_AREA. JSON geometry area.
  • GEOMETRY_LINE. JSON geometry line.
  • GEOMETRY_POINT. JSON geometry point.
  • LATITUDE. Latitude.
  • LONGITUDE. Longitude.
  • POSTAL-CODE. Postal code.
  • STATE. State name.
TEMPORAL_PROPERTY

If the field has a temporal property, select Trend.

USE_STYLE

Defines font, font style, and color properties for the field.

Numeric Format Options

When using a numeric format (integer, float, double, or decimal packed), the following options are available:

Negative

These are the display options for negative numbers:

Default - Minus sign at the left

Positions the minus (-) sign at the left of the number.

- - Minus sign at the right

Positions the minus (-) sign at the right of the number.

B - Bracket negative

Encloses a negative number in parentheses.

C - Credit (CR) negative

Adds the characters CR after a negative number.

Comma

These are the display options for commas:

Default - Suppress

Suppresses the use of a comma in the number.

c - Suppress

Suppresses the use of a comma in the number.

C - Insert

Inserts a comma after every third significant figure. This option takes effect automatically for Double format.

L - Leading zeroes

Adds leading zeros to the full field length.

S - Print blank for zero

Suppresses leading zeros; displays a space if the value is 0.

Abbreviated Display

Choices are:

  • k. Displays the number in thousands, for example. 12.25K.
  • m. Displays the number in millions, for example. 12.25M.
  • b. Displays the number in billions, for example. 12.25B.
  • t. Displays the number in trillions, for example. 12.25T.
  • a. Displays the number automatically using the most useful abbreviation.
Percent Sign

Select either %, which displays a percent sign along with the numeric data, or p, which calculates the percent and adds a percent sign.

E - Scientific notation

Displays the number in scientific notation.

Currency Symbol

These are the extended currency symbol display options, which allow you to select a currency symbol regardless of what is set as the default:

  • N - Fixed $ sign
  • M - Floating $ sign
  • !e - Fixed euro symbol
  • !E - Floating euro symbol
  • !l - Fixed pound sterling sign
  • !L - Floating pound sterling sign
  • !y - Fixed Japanese yen symbol
  • !Y - Floating Japanese yen symbol
  • !d - Fixed dollar sign
  • !D - Fixed dollar sign
Currency

Specifies a field as a currency denominated value.

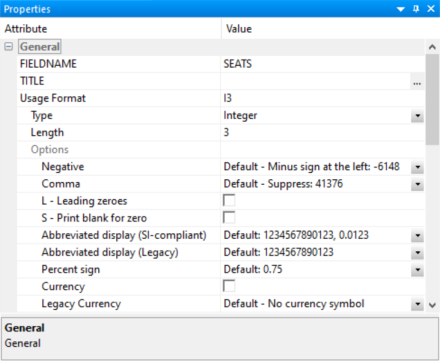

The Define Properties dialog for the Numeric format is shown in the following image.

Format a Column as Date, Time, or DateTime (Timestamp)

    Procedure
  1. In the Transformation Calculator, click the ellipsis (...) button to the right of the Format field.

    The Define Properties dialog opens.

  2. Select Date, Time, or Date and Time from the FORMAT dropdown menu.

    The Date format allows you to choose the display for dates (YYMD, MDY, and so on).

    The Time format allows you to choose the display for time (seconds, milliseconds, and so on) and am/pm.

    The Date and Time format allows you to choose the display for both date and time portions.

Date Type Format Options

The following choices are available from the Define Properties dialog for the date format (the examples illustrate August 21, 2004):

Format

Description

Example

YYMD

Four-digit year/month/day.

2004/08/21

MDYY

Month/day/four-digit year.

08/21/2004

DMYY

Day/month/four-digit year.

21/08/2004

YYQ

Four-digit year/quarter

2004 Q4

QYY

Quarter/four-digit year.

Q4 2004

YYM

Four-digit year/month.

2004/08

MYY

Month/four-digit year.

08/2004

YYJUL

Four-digit year with the month in Julian format. The last three digits are the number of days since January 1.

2004/234

YY

Four-digit year.

2004

Y

Two-digit year.

04

Q

Quarter.

Q3

M

Month.

08

MT

Short month in uppercase.

AUG

Mt

Short month in mixed-case.

Aug

MTR

Full month in uppercase.

AUGUST

Mtr

Full month in mixed-case.

August

W

Three-letter day of the week abbreviation in uppercase.

SAT

w

Three-letter day of the week abbreviation in mixed-case.

Sat

WR

Day of the week in uppercase.

SATURDAY

wr

Day of the week in mixed-case.

Saturday

D

Day.

21

Time Type Formats

The following choices are available from the Define Properties dialog for the time format (the example illustrates 2:05 A.M.):

Format

Description

Example

HH

Hours.

02

HHI

Hours/Minutes.

02:05

HHIS

Hours/Minutes/Seconds.

02:05:27

HHISs

Hours/Minutes/Seconds/Milliseconds.

02:05:27:123

HHISsm

Hours/Minutes/Seconds/Milliseconds/Microseconds.

02:05:27:123456

HI

Minutes.

05

HIS

Minutes/Seconds.

05:27

HISs

Minutes/Seconds/Milliseconds.

05:27:123

HISsm

Minutes/Seconds/Milliseconds/Microseconds.

05:27:123456

HS

Seconds

27

HSs

Seconds/Milliseconds.

27:123

HSsm

Seconds/Milliseconds/Microseconds.

27:123456

Hh

Hours without leading zeros.

2

HhI

Hours without leading zeros/Minutes.

2:05

HhIS

Hours without leading zeros/Minutes/Seconds.

2:05:27

HhISs

Hours without leading zeros/Minutes/Seconds/Milliseconds.

2:05:27:123

HhISsm

Hours without leading zeros/Minutes/Seconds/Milliseconds/Microseconds.

2:05:27:123456

Hi

Minutes without leading zeros.

5

HiS

Minutes without leading zeros/Seconds.

5:27

HiSs

Minutes without leading zeros/Seconds/Milliseconds.

5:27:123

HiSsm

Minutes without leading zeros/Seconds/Milliseconds/Microseconds.

5:27:123456

Date and Time Type Formats

The Date and Time type format combines date, time, and a separator, which are reflected in the format name. For example, HYYMD-H describes a four-digit year, month, and day separated by dashes plus hours.

The following choices are available from the Define Properties dialog for the date component:

Format

Description

Example

HYYMD

Four-digit Year/Month/Day.

2004/08/21

HYMD

Two-digit Year/Month.

04/08

HMD

Month/Day.

08/21

HD

Day

21

The time component is added to the date format name as follows:

Format

Description

Format Name

Example

H

Hours.

HYYMDH

2004/08/21 02

I

Hours/Minutes.

HYYMDI

2004/08/21 02:05

S

Hours/Minutes/Seconds.

HYYMDS

2004/08/21 02:05:27

s

Hours/Minutes/Seconds/Milliseconds.

HYYMDs

2004/08/21 02:05:27:123

m

Hours/Minutes/Seconds/ Milliseconds/Microseconds.

HYYMDm

2004/08/21 02:05:27:123456

The following choices are available from the Define Properties dialog for the separator, which is added to the format name.

Format

Description

Format Name

Example

/

Slash.

HYYMDH

2004/08/21 02

.

Period.

HYYMD.H

2004.08.21 02

-

Dash.

HYYMD-H

2004-08-21 02

Blank

Space

HYYMDBH

2004 08 21 02

None

No separator

HYYMDNH

20040821 02

U

International default.

HYYMDU
