Adding a GIF Image to an HTML Report Heading

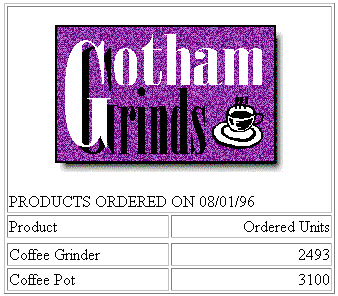

This request adds the Gotham Grinds logo to a report heading. The logo is in a separate image file identified by a relative URL in the IMAGE attribute.

TABLE FILE GGORDER
ON TABLE SUBHEAD
"PRODUCTS ORDERED ON 08/01/96"
SUM QUANTITY AS 'Ordered Units' BY PRODUCT
WHERE PRODUCT EQ 'Coffee Grinder' OR 'Coffee Pot'
WHERE ORDER_DATE EQ '08/01/96'
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=TABHEADING, IMAGE=/IBI_APPS/IBI_HTML/GGDEMO/GOTHAM.GIF, IMAGEBREAK=ON, $
ENDSTYLE
END

IMAGEBREAK, set to ON, generates a line break between the logo and the heading text:

Creating a Report Heading With an Embedded JPEG Image

TABLE FILE EMPLOYEE
ON TABLE SUBHEAD
"Employee Salary Information and Courses"
" "
" "
" "
" "
" "
" "
" "
" "
" "
PRINT CURR_SAL BY COURSE_NAME
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF, $
TYPE=TABHEADING, IMAGE=C:\IBI\APPS\IMAGES\Pencils.jpg,
POSITION=(.5 .5), SIZE=(.5 .5), $
ENDSTYLE
END

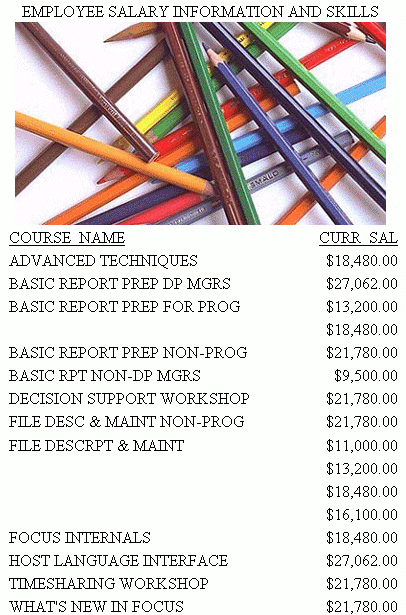

The output is:

Using a File Name in a Data Source Field in an HTML Report

The following illustrates how to embed an image in a SUBHEAD, and use a different image for each value of the BY field on which the SUBHEAD occurs.

DEFINE FILE CAR
FLAG/A12=
DECODE COUNTRY ( 'ENGLAND' 'uk' 'ITALY' 'italy'
   'FRANCE' 'france' 'JAPAN' 'japan' );
END

TABLE FILE CAR
PRINT FLAG NOPRINT AND MODEL AS '' BY COUNTRY NOPRINT AS '' BY CAR AS ''
WHERE COUNTRY EQ 'ENGLAND' OR 'FRANCE' OR 'ITALY' OR 'JAPAN'
ON COUNTRY SUBHEAD
"                     <+0>Cars produced in <ST.COUNTRY"
HEADING CENTER
"Car Manufacturer Report"
" "
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=SUBHEAD, IMAGE=(FLAG), $
TYPE=REPORT, GRID=OFF, $
TYPE=HEADING, SIZE=12, STYLE=BOLD, $
TYPE=SUBHEAD, STYLE=BOLD, $
ENDSTYLE
END

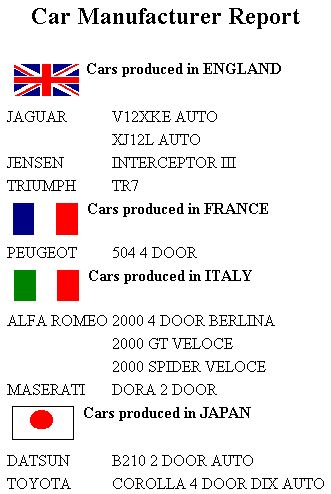

The output is:

Supplying an Image Description Using the ALT Attribute

This request adds the Information Builders logo to a report footing. It uses the WebFOCUS StyleSheet ALT attribute to add descriptive text (Information Builders logo) that identifies the image.

TABLE FILE GGORDER
SUM QUANTITY AS 'Ordered Units'
BY PRODUCT
ON TABLE SUBHEAD
"PRODUCTS ORDERED"
FOOTING
" "
ON TABLE SET ACCESSHTML 508
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF,$
TYPE=FOOTING, IMAGE=/ibi_html/iblogo.gif, ALT='Information Builders logo',$
ENDSTYLE
END

• Include the -MRNOEDIT command at the beginning of the line that references the IMAGE not located in the WebFOCUS repository.
• Include the fully qualified path in the IMAGE parameter.

The WebFOCUS Client Upload Images to be Embedded in Reports Applications setting specifies whether to upload Repository images to the WebFOCUS Reporting Server for embedding in reports and HTML pages. The default is to upload Repository images. For more information on the Upload Images to be Embedded in Reports Applications setting, see the ibi™ WebFOCUS® Security and Administration manual.

The -MRNOEDIT command instructs the WebFOCUS Client to not process the line of code. For more information on the -MRNOEDIT command, see the ibi™ WebFOCUS® Business Intelligence Portal manual.

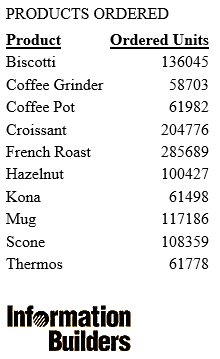

When you run the request, the image displays below the report data, as shown in the following image.

When you hover the mouse over the image, the descriptive text displays in a box if your browser image loader is turned off or if the browser does not display images.

WebFOCUS generates the following HTML code for the image:

<IMG SRC="/ibi_html/ibilogo.gif"
ALT="Information Builders logo">

Adding a Background Image

This request adds a background image to a report. The image file CALM_BKG.GIF resides in the relative address shown.

TABLE FILE GGSALES
SUM UNITS DOLLARS
BY CATEGORY BY PRODUCT
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=REPORT, STYLE=BOLD, GRID=OFF, $
TYPE=REPORT, BACKIMAGE=/IBI_APPS/IBI_HTML/TEMPLATE/CALM_BKG.GIF, $
ENDSTYLE
END

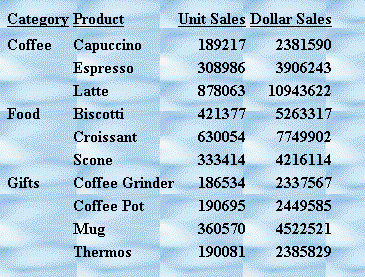

The background is tiled across the report area:

Adding a GIF Image to an HTML Report With Internal Cascading Style Sheet

A URL locates the image file GOTHAM.GIF on a server named WEBSRVR1. The TYPE attribute adds the image to the report heading. POSITION places the image one-quarter inch horizontally and one-tenth inch vertically from the upper-left corner of the report page. The image is one inch wide and one inch high as specified by SIZE.

SET HTMLCSS = ON
TABLE FILE GGSALES
SUM UNITS BY PRODUCT
ON TABLE SUBHEAD
"REPORT ON UNITS SOLD"
" "
" "
" "
" "
" "
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF, $
TYPE=TABHEADING, IMAGE=HTTP://WEBSRVR1/IBI_APPS/IBI_HTML/GGDEMO/GOTHAM.GIF,
     POSITION=(.25 .10), SIZE=(1 1), $
ENDSTYLE
END

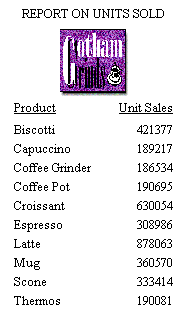

The company logo is positioned and sized in the report heading:

Adding a GIF Image to a PDF Report

The image file for this example is GOTHAM.GIF. The POSITION attribute places the image one-quarter inch horizontally and one-quarter vertically from the upper-left corner of the report page. The image is one-half inch wide and one-half inch high as specified by SIZE.

SET ONLINE-FMT = PDF
TABLE FILE GGSALES
SUM UNITS BY PRODUCT
ON TABLE SUBHEAD
"Report on Units Sold"
" "
" "
" "
" "
" "
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=TABHEADING, IMAGE=GOTHAM.GIF, POSITION=(.25 .25), SIZE=(.5 .5), $
ENDSTYLE
END

The report is:

Adding a PNG Image to a PDF Report

The image file for this sample is Ibi_logo.png. The POSITION attribute places the image to the upper-left corner of the report page. The image is one inch wide and half an inch high, as specified by SIZE.

SET HTMLCSS = ON
TABLE FILE GGSALES
SUM UNITS BY PRODUCT
ON TABLE SUBHEAD
"REPORT ON UNITS SOLD"
" "
" "
" "
" "
" "
ON TABLE SET PAGE-NUM OFF
ON TABLE PCHOLD FORMAT PDF
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF, $
TYPE=TABHEADING, IMAGE=Ibi_logo.png, POSITION=(0 .30), SIZE=(1 0.5), $
ENDSTYLE
END

The report is:

Inserting an Image From a BLOB Field Into a Report Column

The Microsoft SQL Server data source named retaildetail contains product information for a sports clothing and shoe retailer. The Microsoft SQL Server data source named retailimage has the same product ID field as retaildetail and has an image of each product stored in a field named prodimage whose data type is BLOB.

The following Master File describes the Microsoft SQL Server data source named retaildetail.

FILENAME=RETAILDETAIL, SUFFIX=SQLMSS  , $
  SEGMENT=SEG01, SEGTYPE=S0, $
    FIELDNAME=FOCLIST, ALIAS=FOCLIST, USAGE=I5, ACTUAL=I4, $
    FIELDNAME=PRODUCTID, ALIAS=ProductId, USAGE=A5, ACTUAL=A5,
      MISSING=ON, $
    FIELDNAME=DEPARTMENT, ALIAS=Department, USAGE=A10, ACTUAL=A10,
      MISSING=ON, $
    FIELDNAME=CATEGORY, ALIAS=Category, USAGE=A30, ACTUAL=A30,
      MISSING=ON, $
    FIELDNAME=SPORTS, ALIAS=Sports, USAGE=A30, ACTUAL=A30,
      MISSING=ON, $
    FIELDNAME=GENDER, ALIAS=Gender, USAGE=A10, ACTUAL=A10,
      MISSING=ON, $
    FIELDNAME=BRAND, ALIAS=Brand, USAGE=A25, ACTUAL=A25,
      MISSING=ON, $
    FIELDNAME=STYLE, ALIAS=Style, USAGE=A25, ACTUAL=A25,
      MISSING=ON, $
    FIELDNAME=COLOR, ALIAS=Color, USAGE=A25, ACTUAL=A25,
      MISSING=ON, $
    FIELDNAME=NAME, ALIAS=Name, USAGE=A80, ACTUAL=A80,
      MISSING=ON, $
    FIELDNAME=DESCRIPTION, ALIAS=Description, USAGE=A1000, ACTUAL=A1000,
      MISSING=ON, $
    FIELDNAME=PRICE, ALIAS=Price, USAGE=D7.2, ACTUAL=D8,
      MISSING=ON, $

The following Master File describes the Microsoft SQL Server data source named retailimage, which has the same product ID field as retaildetail and has an image of each product stored in a field named prodimage whose data type is BLOB.

FILENAME=RETAILIMAGE, SUFFIX=SQLMSS  , $
  SEGMENT=RETAILIMAGE, SEGTYPE=S0, $
    FIELDNAME=PRODUCTID, ALIAS=PRODUCTID, USAGE=A5, ACTUAL=A5, $
    FIELDNAME=PRODIMAGE, ALIAS=F02BLOB50000, USAGE=BLOB, ACTUAL=BLOB,
      MISSING=ON, $

The following request joins the two data sources and prints product names and prices with the corresponding image. The output is generated in DHTML format.

-* Rel 7705 DHTML and HTML supports including Image stored in
-* BLOB field in report column, heading, footing, subhead, or
-* subfoot
-* Rel 769 supports PDF format
JOIN PRODUCTID IN RETAILDETAIL TO PRODUCTID IN RETAILIMAGE
TABLE FILE RETAILDETAIL
HEADING CENTER
"Product List"
" "
PRINT NAME/A20 PRICE PRODIMAGE AS 'PICTURE'
BY PRODUCTID NOPRINT
BY NAME NOPRINT
ON NAME UNDER-LINE
ON TABLE SET PAGE NOPAGE
-**************************
-* Lines between asterisk lines required for BLOB image support
-* for HTML and DHTML formats.
ON TABLE SET HTMLEMBEDIMG AUTO
-* Required to support IE8 with images larger than 32K
ON TABLE SET HTMLARCHIVE ON
-*Required for image positioning in subheads in HTML reports
ON TABLE SET HTMLCSS ON
-**************************
ON TABLE PCHOLD FORMAT DHTML
ON TABLE SET STYLE *
TYPE=REPORT,COLOR=BLUE,FONT=ARIAL, GRID=OFF,$
TYPE=HEADING, SIZE = 18, COLOR=RED,$
TYPE=DATA,COLUMN=PRODIMAGE,IMAGE=(PRODIMAGE),SIZE=(1 1),$
ENDSTYLE
END

The image is placed in the report column using the following StyleSheet declaration, which names the image field, and establishes the size and position in the column for the image.

TYPE=DATA,COLUMN=PRODIMAGE,IMAGE=(PRODIMAGE),SIZE=(1 1),$

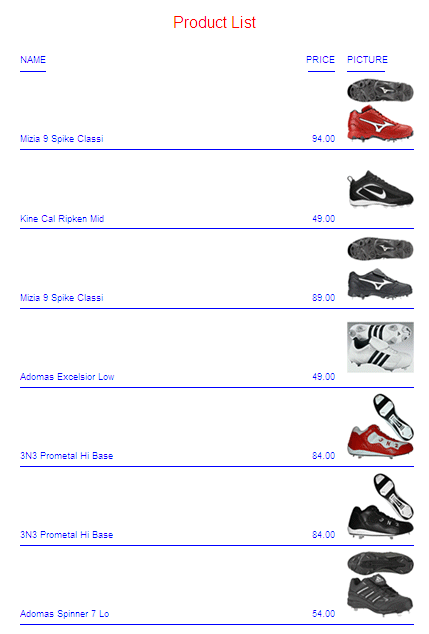

The partial output shows that DHTML format preserves the specified spacing.

The following request generates the output in HTML format.

-* Rel 7705 DHTML and HTML supports including Image stored in
-* BLOB field in report column, heading, footing, subhead, or
-* subfoot
-* Rel 769 supports PDF format
JOIN PRODUCTID IN RETAILDETAIL TO PRODUCTID IN RETAILIMAGE
TABLE FILE RETAILDETAIL
HEADING CENTER
"Product List"
" "
PRINT NAME/A20 PRICE PRODIMAGE AS 'PICTURE'
BY PRODUCTID NOPRINT
BY NAME NOPRINT
ON NAME UNDER-LINE
ON TABLE SET PAGE NOPAGE
-**************************
-* Lines between asterisk lines required for BLOB image support
-* for HTML and DHTML formats.
ON TABLE SET HTMLEMBEDIMG AUTO
-* Required to support IE8 with images larger than 32K
ON TABLE SET HTMLARCHIVE ON
-*Required for image positioning in subheads in HTML reports
ON TABLE SET HTMLCSS ON
-**************************
ON TABLE PCHOLD FORMAT HTML
ON TABLE SET STYLE *
TYPE=REPORT,COLOR=BLUE, GRID=OFF, FONT=ARIAL,$
TYPE=HEADING, SIZE = 18, COLOR=RED,$
TYPE=DATA,COLUMN=PRODIMAGE,IMAGE=(PRODIMAGE),SIZE=(1 1),$
ENDSTYLE
END

The partial output shows that the spacing is different because the browser removes blank spaces for HTML report output.

The following request generates the report output in PDF format.

-* Rel 7705 DHTML and HTML supports including Image stored in
-* BLOB field in report column, heading, footing, subhead, or
-* subfoot
-* Rel 769 supports PDF format
JOIN PRODUCTID IN RETAILDETAIL TO PRODUCTID IN RETAILIMAGE
TABLE FILE RETAILDETAIL
HEADING CENTER
"Product List"
" "
PRINT NAME/A20 PRICE PRODIMAGE AS 'PICTURE'
BY PRODUCTID NOPRINT
BY NAME NOPRINT
ON NAME UNDER-LINE
ON TABLE SET PAGE NOPAGE
-**************************
-* Lines between asterisk lines required for BLOB image support
-* for HTML and DHTML formats.
ON TABLE SET HTMLEMBEDIMG AUTO
-* Required to support IE8 with images larger than 32K
ON TABLE SET HTMLARCHIVE ON
-*Required for image positioning in subheads in HTML reports
ON TABLE SET HTMLCSS ON
-**************************
ON TABLE PCHOLD FORMAT PDF
ON TABLE SET STYLE *
TYPE=REPORT,COLOR=BLUE, GRID=OFF,$
TYPE=HEADING, SIZE = 18, FONT = ARIAL, COLOR=RED,$
TYPE=DATA,COLUMN=PRODIMAGE,IMAGE=(PRODIMAGE),SIZE=(1 1),$
ENDSTYLE
END

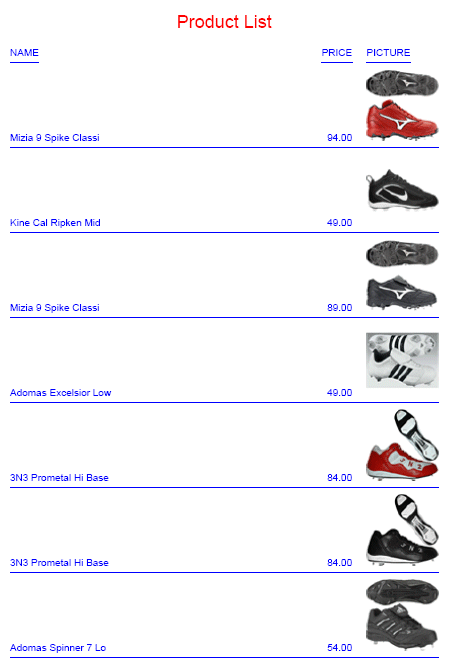

The PDF partial output preserves specified spacing providing results similar to DHTML output.

Inserting an Image From a BLOB Field Into a Subheading

The Microsoft SQL Server data source named retaildetail contains product information for a sports clothing and shoe retailer. The Microsoft SQL Server data source named retailimage has the same product ID field as retaildetail and has an image of each product stored in a field named prodimage whose data type is BLOB.

The following request joins the two data sources and prints product images in a subheading. The output is generated in DHTML format. It can also be generated in HTML or PDF format.

-* Rel 7705 DHTML and HTML supports including Image stored in
-* BLOB field in HTML report column, heading, footing, subhead,
-* or subfoot
-* Rel 769 supports PDF format
-*SET BASEURL='' - Required for embedded images to work. Overrides default
-* setting from WF Client.
SET BASEURL=''
JOIN PRODUCTID IN RETAILDETAIL TO PRODUCTID IN RETAILIMAGE
TABLE FILE RETAILDETAIL
HEADING CENTER
"Product Catalog"
" "
PRINT NAME NOPRINT PRODIMAGE NOPRINT
BY PRODUCTID NOPRINT
ON PRODUCTID SUBHEAD
""
" ID: <10<PRODUCTID "
" Name: <10<NAME "
" Price: <7<PRICE "
" Image: "
""
""
""
""
""
ON TABLE SET PAGE NOPAGE

-**************************
-* Lines between asterisk lines required for BLOB image support
-* for HTML and DHTML formats.
ON TABLE SET HTMLEMBEDIMG AUTO
-* Required to support IE8 with images larger than 32K
ON TABLE SET HTMLARCHIVE ON
-*Required for image positioning in subheads in HTML reports
ON TABLE SET HTMLCSS ON
-**************************
ON TABLE PCHOLD FORMAT DHTML
ON TABLE SET STYLE *
TYPE=REPORT,COLOR=BLUE,FONT = ARIAL,$
TYPE=HEADING, COLOR = RED, SIZE = 16, JUSTIFY=CENTER,$
TYPE=SUBHEAD,BY=PRODUCTID,IMAGE=(PRODIMAGE),SIZE=(1 1), POSITION=(+2 +1),$
ENDSTYLE
END

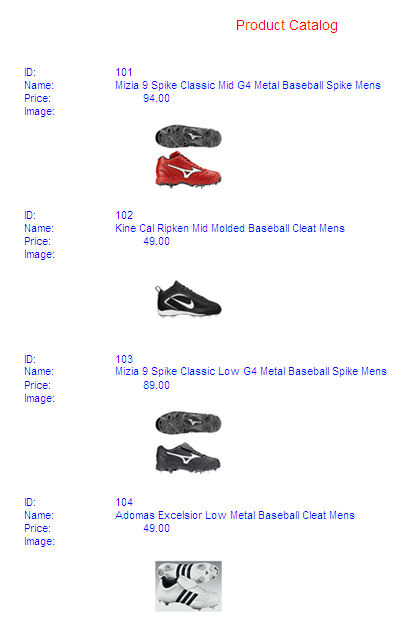

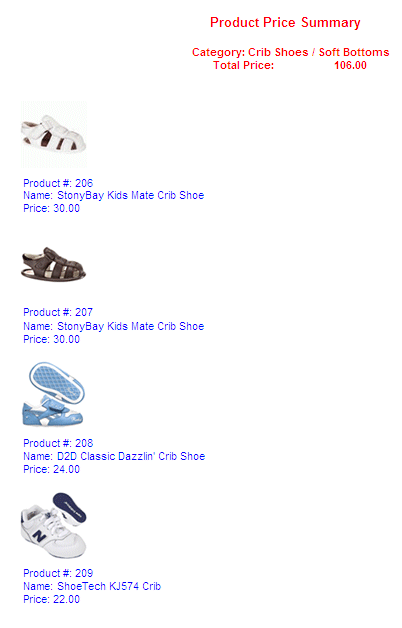

The partial output is.

Sizing an Image From a BLOB Field

The Microsoft SQL Server data source named retaildetail contains product information for a sports clothing and shoe retailer. The Microsoft SQL Server data source named retailimage has the same product ID field as retaildetail and has an image of each product stored in a field named prodimage whose data type is BLOB.

The following request joins the two data sources and displays the same image on three columns of output using different sizes and different PRESERVERATIO settings. Note that PRESERVERATIO=ON is not supported with images in PNG format.

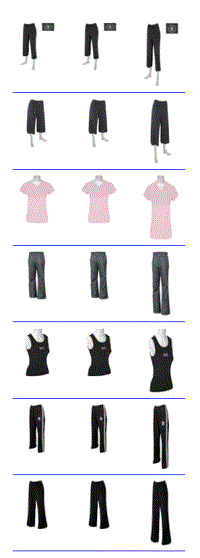

The output is generated in DHTML format. It can also be generated in HTML or PDF format.

-* Rel 7705 DHTML and HTML supports including Image stored in
-* BLOB field in report column, heading, footing, subhead, or
-* subfoot
-* Rel 769 supports PDF format
JOIN PRODUCTID IN RETAILDETAIL TO PRODUCTID IN RETAILIMAGE
TABLE FILE RETAILDETAIL
PRINT PRODIMAGE AS '' PRODIMAGE AS '' PRODIMAGE AS ''
BY STYLE NOPRINT
WHERE NAME CONTAINS 'Pant' OR 'Tank'
ON STYLE UNDER-LINE
ON TABLE SET PAGE NOPAGE
-**************************
-* Lines between asterisk lines required for BLOB image support
-* for HTML and DHTML formats.
ON TABLE SET HTMLEMBEDIMG AUTO
-* Required to support IE8 with images larger than 32K
ON TABLE SET HTMLARCHIVE ON
-*Required for image positioning in subheads in HTML reports
ON TABLE SET HTMLCSS ON
-**************************
ON TABLE PCHOLD FORMAT DHTML
ON TABLE SET STYLE *
TYPE=REPORT,COLOR=BLUE,FONT = ARIAL,$
TYPE=DATA,COLUMN=P1,IMAGE=(PRODIMAGE),SIZE=(.75 .75),$
TYPE=DATA,COLUMN=P2,IMAGE=(PRODIMAGE),SIZE=(.75 1),PRESERVERATIO=ON,$
TYPE=DATA,COLUMN=P3,IMAGE=(PRODIMAGE),SIZE=(.75 1),PRESERVERATIO=OFF,$
ENDSTYLE
END

Note that PRESERVERATIO=OFF is specified for the second column to preserve the image height and width ratio for that column even though the styling SIZE height specifies a different value than the first column image styling. In addition, PRESERVERATIO=OFF is specified for the third column, so for that column the image height to width ratio is not preserved and is rendered as specified by the styling SIZE height and width values specified in the request (FEX).

The partial output follows.

Inserting an Image From a BLOB Field in a Summary Report

In order to insert an image from a BLOB field in a report that displays summary data, you must include two display commands in the request, a SUM command for the summary information and a PRINT or LIST command for displaying the image and any other detail data.

The Microsoft SQL Server data source named retaildetail contains product information for a sports clothing and shoe retailer. The Microsoft SQL Server data source named retailimage has the same product ID field as retaildetail and has an image of each product stored in a field named prodimage whose data type is BLOB.

The following request joins the two data sources. It contains two display commands, a SUM command and a PRINT command. The SUM command aggregates the total price for each category and displays this category name and total price in a subheading, The PRINT command displays the image for each item in the category along with its individual product number and price in a subfooting.

The output is generated in DHTML format. It can also be generated in HTML or PDF format.

-* Rel 7705 DHTML and HTML supports including images stored in
-* BLOB field in report column, heading, footing, subhead, or
-* subfoot
-* Rel 769 supports PDF format
SET PRINTPLUS=ON
JOIN PRODUCTID IN RETAILDETAIL TO PRODUCTID IN RETAILIMAGE
TABLE FILE RETAILDETAIL
HEADING CENTER
"Product Price Summary"
" "
SUM PRICE NOPRINT
BY CATEGORY NOPRINT
ON CATEGORY SUBHEAD
" Category: <CATEGORY "
" Total Price: <PRICE "
" "

PRINT PRICE NOPRINT PRODIMAGE NOPRINT
BY CATEGORY NOPRINT
BY PRODUCTID NOPRINT
ON PRODUCTID SUBFOOT
" "
" "
" "
" "
" "
" "
" Product #: <PRODUCTID "
" Name: <NAME "
" Price: <FST.PRICE "
ON TABLE SET PAGE NOPAGE
-**************************
-* Lines between asterisk lines required for BLOB image support
-* for HTML and DHTML formats.
ON TABLE SET HTMLEMBEDIMG AUTO
-* Required to support IE8 with images larger than 32K
ON TABLE SET HTMLARCHIVE ON
-*Required for image positioning in subheads in HTML reports]
ON TABLE SET HTMLCSS ON
-**************************
ON TABLE PCHOLD FORMAT DHTML
ON TABLE SET STYLE *
TYPE=REPORT,COLOR=BLUE,FONT=ARIAL,$
TYPE=HEADING, COLOR=RED, SIZE=14, STYLE=BOLD, JUSTIFY=CENTER,$
TYPE=SUBHEAD, COLOR=RED, SIZE=12, STYLE=BOLD, JUSTIFY=CENTER,$
TYPE=SUBFOOT,BY=PRODUCTID,IMAGE=(PRODIMAGE),SIZE=(1 1), POSITION=(0 0),$
TYPE=SUBFOOT,BY=PRODUCTID,OBJECT=FIELD, ITEM=1, WRAP=5,$
ENDSTYLE
END

The output for the first category is:
