Including the Department Name in a Page Heading and Footing

This request includes the field name DEPARTMENT in both the page heading and footing text. The command HEADING is not required in the request because the page heading text appears before the command PRINT.

TABLE FILE EMPLOYEE
"<DEPARTMENT : BANK, EMPLOYEES AND SALARIES"
PRINT CURR_SAL
BY DEPARTMENT NOPRINT BY BANK_ACCT
BY LAST_NAME BY FIRST_NAME
ON DEPARTMENT PAGE-BREAK
FOOTING
"<DEPARTMENT EMPLOYEES WITH ELECTRONIC TRANSFER ACCOUNTS"
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET WEBVIEWER ON
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

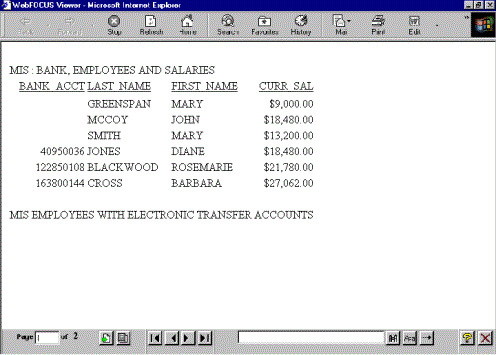

The output displays the output for a multi-page HTML report. On the first page of output, the value of DEPARTMENT in the page heading and footing is MIS.

On the second page of output, the value of DEPARTMENT is PRODUCTION.

Displaying a Less Than Symbol in a Heading

The following request computes the difference between REVENUE_US and COGS_US and displays those rows in which the difference is less than 100,000.

TABLE FILE WF_RETAIL_LITE
HEADING CENTER
" Difference <<  100,000"
" "
SUM COGS_US REVENUE_US
COMPUTE Difference/D20.2 = REVENUE_US - COGS_US;
BY PRODUCT_CATEGORY
WHERE TOTAL Difference LT 100000
ON TABLE SET PAGE NOLEAD
ON TABLE SET STYLE *
GRID=OFF,$
ENDSTYLE
END

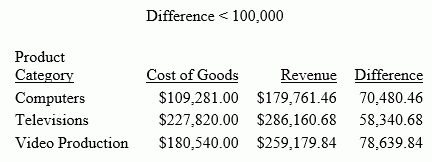

The heading displays the text Difference < 100,000, as shown in the following image.

Retaining Trailing Blanks in an Alphanumeric Field

Trailing blanks are not retained in standard HTML output. When the output type is HTML, STYLEMODE is set to FULL by default. To retain trailing blanks in the alphanumeric field DEPARTMENT, the STYLEMODE setting has been changed to FIXED in this request and the delimiters < and > have been included around the field name in the sort footing text.

SET STYLEMODE = FIXED
TABLE FILE EMPLOYEE
SUM SALARY
BY DEPARTMENT SUBFOOT
"<DEPARTMENT> DEPARTMENT TOTAL SALARY IS <SALARY"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

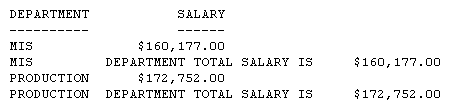

Values for DEPARTMENT appear in the sort footing as MIS and PRODUCTION.

Using the Prefix Operator TOT in a Page Heading

This request uses the prefix operator TOT to generate grand totals for three fields.

DEFINE FILE SALES
ACTUAL_SALES/D8.2 = UNIT_SOLD - RETURNS;
SALES/F5.1 = 100 * ACTUAL_SALES / UNIT_SOLD;
END
TABLE FILE SALES
"SUMMARY OF ACTUAL SALES"
"UNITS SOLD <TOT.UNIT_SOLD"
"RETURNS <TOT.RETURNS"
"TOTAL SOLD <TOT.ACTUAL_SALES"
" "
"BREAKDOWN BY PRODUCT"
PRINT UNIT_SOLD AND RETURNS AND ACTUAL_SALES
BY PROD_CODE
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT PDF
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

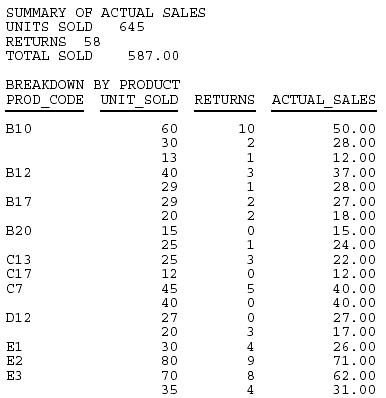

The totals appear in the page heading.

Using Multiple Prefix Operators in a Page Heading

This request uses the prefix operators MAX, MIN, AVE, and TOT. It does not require a display command because the page heading text contains data fields.

TABLE FILE SALES
"MOST UNITS SOLD WERE <MAX.UNIT_SOLD"
"LEAST UNITS SOLD WERE <MIN.UNIT_SOLD"
"AVERAGE UNITS SOLD WERE <AVE.UNIT_SOLD"
"TOTAL UNITS SOLD WERE <TOT.UNIT_SOLD"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

The prefix operators generate summary data in the page heading.

Using Multiple Prefix Operators in a Sort Footing

This request uses the prefix operators CNT and AVE in a sort footing. The output does not contain columns of data. All data is included in the sort footing itself.

TABLE FILE EMPLOYEE
BY DEPARTMENT NOPRINT SUBFOOT
"NUMBER OF EMPLOYEES IN DEPARTMENT <DEPARTMENT = <CNT.LAST_NAME"
"WITH AVERAGE SALARY OF <AVE.CURR_SAL"
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF, $
ENDSTYLE
END

The sort footing is a summary report on the number of employees in a department and their average salary.

The prefix operators generate summary data in the page heading.

NUMBER OF EMPLOYEES IN DEPARTMENT MIS = 6
WITH AVERAGE SALARY OF $18,000.33
NUMBER OF EMPLOYEES IN DEPARTMENT PRODUCTION = 6
WITH AVERAGE SALARY OF $19,047.00

Including a Text Field in a Sort Footing

In this example, you create a Master File named TXTFLD.MAS and a corresponding FOCUS data source named TXTFLD.FOC.

1. Create and save the Master File.

   FILENAME = TXTFLD, SUFFIX = FOC,$
   SEGNAME=TXTSEG, SEGTYPE = S1,$
      FIELDNAME = CATALOG, FORMAT = A10, $
      FIELDNAME = TEXTFLD,     FORMAT = TX50,$

2. Create and save the following MODIFY procedure. This procedure creates and populates the data source in a Windows environment.

   CREATE FILE TXTFLD
   MODIFY FILE TXTFLD
   FIXFORM CATALOG/10 TEXTFLD
   DATA
   COURSE100 This course provides the junior programmer
   with the skills needed to code simple reports.%$
   COURSE200 This course provides the advanced programmer with
   techniques helpful in developing complex
   applications.%$
   END

3. Run the MODIFY procedure to populate the data source.
4. Create and save the following report request.

   TABLE FILE TXTFLD
   BY CATALOG SUBFOOT
   "<TEXTFLD"
   ON TABLE SET PAGE-NUM OFF
   ON TABLE SET ONLINE-FMT HTML
   ON TABLE SET STYLESHEET *
   TYPE=REPORT, GRID=OFF,$
   ENDSTYLE
   END

5. Run the report request.

   The output is:

   CATALOGCOURSE 100
   This course provides the junior programmer with
   the skills needed to code simple reports
   COURSE 200
   This course provides the advanced programmer with
   techniques helpful in developing complex
   applications.

   The horizontal space occupied by the text field is determined by the number of characters specified in the FORMAT attribute in the Master File. In the sample Master File, TX50 means 50 characters wide.

Including the Current Date in a Report Heading

This request includes today's date on the second line of the report heading, highlighted in bold.

TABLE FILE GGSALES
PRINT BUDDOLLARS DOLLARS
BY STCD
WHERE STCD EQ 'R1019'
ON TABLE SUBHEAD
"Sales Report for Store Code R1019"
"&DATE"
ON TABLE SET PAGE-NUM OFF
ON TABLE SET ONLINE-FMT HTML
ON TABLE SET STYLESHEET *
TYPE=REPORT, GRID=OFF,$
TYPE=TABHEADING, LINE=1, FONT='TIMES', SIZE=10, STYLE=BOLD, $
TYPE=TABHEADING, LINE=2, COLOR=BLUE, $
ENDSTYLE
END

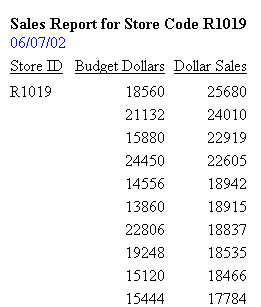

The output is:
