Storage Mode

In Publication Service, the adapter provides two storage modes for you to copy the columns from the source table to the publishing table. The storage mode you choose depends on your specific requirements.

Publish by Value

With Publish by Value, all specified columns in the source table are copied to the publishing table. Publishing by Value is fast, but does not support some data types, for example, Oracle LONG and LONG RAW.

When you use Publish by Value, the following restrictions apply on publishing tables:

•

Publishing tables cannot contain columns with LONG data types. If you have a source table that contains a column with a LONG data type, that column cannot be specified for inclusion in the publishing table. This is because the trigger generated by the palette cannot copy the LONG column value through the :new construct.

This is an Oracle restriction documented in the Oracle SQL Reference manual. The problem is not detected by Oracle during trigger creation. However, when the trigger fires and it attempts to copy the LONG column value to the publishing table, the database connection will hang for some time and then eventually terminate.

•

When you define parent-child relationships between tables, the publishing table that is created for a parent table cannot contain a column with a LONG data type. However, a child table can contain a column with a LONG data type. This is because data in child table rows is not copied using the :new construct.

•

LONG RAW data is not allowed in the publishing table.

These restrictions do not apply to publishing tables when you use Publish by Reference, and LONG or LONG RAW are non-key types.

In the following example, the publishing table P_CUSTOMER is created for the source table, CUSTOMER. When CUSTOMER is updated, the new data is copied to P_CUSTOMER. The adapter will poll P_CUSTOMER and publish the new data.

Note	In this example, loop detection is enabled. If a subscription exists that uses the same subject and CUSTOMER as the destination table, any changes to CUSTOMER will not be published repeatedly.

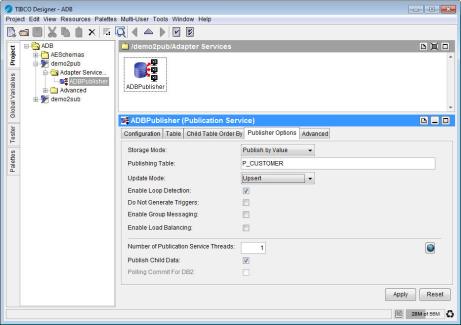

Figure 291: Selecting Publish by Value as Storage Mode

Publish by Reference

With Publish by Reference, only key column values are copied to the publishing table. You can use this option to publish data directly from the source table without copying the data from the source table to a publishing table firstly. A trigger, a stored procedure, and a publishing table are created, but the publishing table contains the necessary adapter fields and only the key fields of the source table.

The advantage of Publish by Reference is that the data to be published is stored just once. Also, data types, such as Oracle LONG and LONG RAW are supported for Publish by Reference.

A key column or substitute key column is required when you use the Publish by Reference option, because the publishing table contains only key values. If no column is specified, the publication is not added.

Note

When you use the Publish by Reference storage mode, note the following conditions: • To use a view or another database object as the source table, you can configure the adapter to publish data by a referred object, where key columns are stored in the publishing table and data to be published is selected from the referred object. For details, see Publishing by Reference Object. • No matter if a single table or parent-child tables are used as a source table, even if you do not specify a referred object, the adapter can run properly without additional configurations for Publication Service. • You can load a source table from the default schema or add a table from a different schema. By default, the publishing table is created in the default schema. However, if you specify a prefix in the publishing table name, the publishing table is created in the schema with the specified prefix. • A referred object can be a table or a view in the default schema. However, if you add a prefix in the referred object name, the table or view in the schema with the specified prefix is used for reference. • If you specify a table or view as a referred object, the referred object must contain columns with the same names and data types as the primary key columns in the source table. The primary key values in the source table must be the same as the primary key values or the subset of primary key values in the referred object. • The Publish to ActiveSpaces option does not support the Publish by Reference Object option. Because of this, if the Publish to ActiveSpaces check box is selected for Publication Service, the Referred Object field is not displayed in the Publisher Options tab. The Publish to ActiveSpaces check box is deprecated in the release.

In the following example, the publisher adapter is configured to publish data from the P_CUSTOMER table with a key field CUSTID. The publishing table is created with the necessary fields and the CUSTID field. When a row in the P_CUSTOMER table is modified, the trigger fires, populates fields, and copies the CUSTID value to the publishing table. When the adapter polls the publishing table, it detects the new row and selects from the P_CUSTOMER table by using the CUSTID value found in the publishing table. Then the message is published.

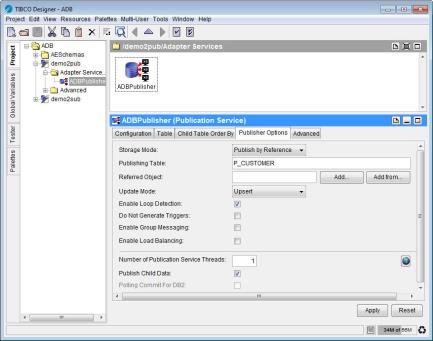

Figure 292: Selecting Publish by Reference as Storage Mode
