Creating and Configuring an Adapter Configuration

After creating a project, you have to create and configure an adapter configuration to store all the configuration information.

1. Right-click the project that you have created and click New > Other to open the New wizard.
2. In the "Select a wizard" dialog, select TIBCO Adapters > Adapter for SAP > Adapter for SAP Configuration, and click then Next.
3. In the Create new Adapter for SAP Configuration dialog, if you do not want to use the default file name for the adapter configuration, enter a new name in the File name field.
4. Click Finish.

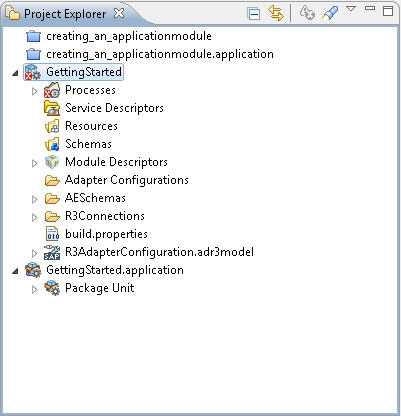

   An adapter configuration is created in the project. The Adapter Configurations, AESchemas and R3Connections folders are also created automatically in the project.



5. In the Project Explorer view, expand the Module Descriptors folder and double-click the Module Properties resource.
6. In the Module Properties editor, enter values for the following properties in the User tab:
   • SAPAppServer

     The network name of the machine that hosts SAP applications

   • SAPClient

     The SAP client number

   • SAPSystemNumber

     The SAP system number

   • SAPUserName

     The user name to log on to a specific SAP client

   • SAPPassword

     The valid password corresponding to a user name

7. Click Save.
8. In the Adapter for SAP Configuration editor, click Test Connection in the Default Client Connection panel to check whether the adapter configuration can connect to the SAP system.
