complexType XmlRecurringInstance

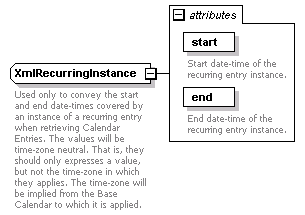

diagram
namespace	http://basic.api.dac.n2.tibco.com
used by	element  XmlRecurringExclusionDetail/occurrence
attributes	Name   Type   Use   Default   Fixed   Annotation start   xs:dateTime   required         documentation Start date-time of the recurring entry instance. end   xs:dateTime   required         documentation End date-time of the recurring entry instance.
annotation	documentation Used only to convey the start and end date-times covered by an instance of a recurring entry when retrieving Calendar Entries. The values will be time-zone neutral. That is, they should only expresses a value, but not the time-zone in which they applies. The time-zone will be implied from the Base Calendar to which it is applied.
source	<xs:complexType name="XmlRecurringInstance">   <xs:annotation>     <xs:documentation>Used only to convey the start and end date-times covered by an instance of a recurring entry when retrieving Calendar Entries. The values will be time-zone neutral. That is, they should only expresses a value, but not the time-zone in which they applies. The time-zone will be implied from the Base Calendar to which it is applied.</xs:documentation>   </xs:annotation>   <xs:attribute name="start" type="xs:dateTime" use="required">     <xs:annotation>       <xs:documentation>Start date-time of the recurring entry instance.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="end" type="xs:dateTime" use="required">     <xs:annotation>       <xs:documentation>End date-time of the recurring entry instance.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute XmlRecurringInstance/@start

type	xs:dateTime
properties	use  required
annotation	documentation Start date-time of the recurring entry instance.
source	<xs:attribute name="start" type="xs:dateTime" use="required">   <xs:annotation>     <xs:documentation>Start date-time of the recurring entry instance.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute XmlRecurringInstance/@end

type	xs:dateTime
properties	use  required
annotation	documentation End date-time of the recurring entry instance.
source	<xs:attribute name="end" type="xs:dateTime" use="required">   <xs:annotation>     <xs:documentation>End date-time of the recurring entry instance.</xs:documentation>   </xs:annotation> </xs:attribute>
