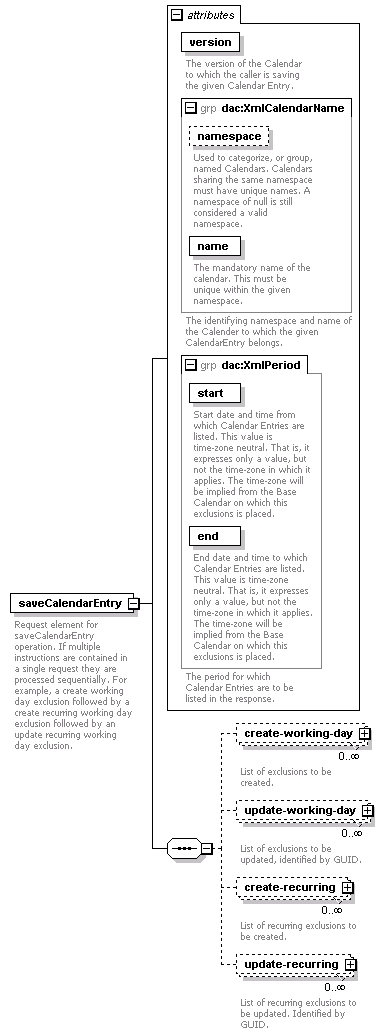

element saveCalendarEntry

diagram
namespace	http://workcal.api.dac.n2.tibco.com
properties	content  complex
children	create-working-day update-working-day create-recurring update-recurring
attributes	Name   Type   Use   Default   Fixed   Annotation version   XmlLockVersion   required         documentation The version of the Calendar to which the caller is saving the given Calendar Entry. namespace   xs:string   optional         documentation Used to categorize, or group, named Calendars. Calendars sharing the same namespace must have unique names. A namespace of null is still considered a valid namespace. name   xs:string   required         documentation The mandatory name of the calendar. This must be unique within the given namespace. start   xs:dateTime   required         documentation Start date and time from which Calendar Entries are listed. This value is time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. end   xs:dateTime   required         documentation End date and time to which Calendar Entries are listed. This value is time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed.
annotation	documentation Request element for saveCalendarEntry operation. If multiple instructions are contained in a single request they are processed sequentially. For example, a create working day exclusion followed by a create recurring working day exclusion followed by an update recurring working day exclusion.
source	<xs:element name="saveCalendarEntry">   <xs:annotation>     <xs:documentation>Request element for saveCalendarEntry operation. If multiple instructions are contained in a single request they are processed sequentially. For example, a create working day exclusion followed by a create recurring working day exclusion followed by an update recurring working day exclusion.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="create-working-day" type="dac:XmlNewWorkingDayExclusion" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>List of exclusions to be created.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="update-working-day" type="dac:XmlExistingWorkingDayExclusion" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>List of exclusions to be updated, identified by GUID.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="create-recurring" type="dac:XmlNewRecurringExclusion" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>List of recurring exclusions to be created.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="update-recurring" type="dac:XmlExistingRecurringExclusion" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>List of recurring exclusions to be updated. Identified by GUID.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>     <xs:attribute name="version" type="dac:XmlLockVersion" use="required">       <xs:annotation>         <xs:documentation>The version of the Calendar to which the caller is saving the given Calendar Entry.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attributeGroup ref="dac:XmlCalendarName">       <xs:annotation>         <xs:documentation>The identifying namespace and name of the Calender to which the given CalendarEntry belongs.</xs:documentation>       </xs:annotation>     </xs:attributeGroup>     <xs:attributeGroup ref="dac:XmlPeriod">       <xs:annotation>         <xs:documentation>The period for which Calendar Entries are to be listed in the response.</xs:documentation>       </xs:annotation>     </xs:attributeGroup>   </xs:complexType> </xs:element>

attribute saveCalendarEntry/@version

type	XmlLockVersion
properties	use  required
annotation	documentation The version of the Calendar to which the caller is saving the given Calendar Entry.
source	<xs:attribute name="version" type="dac:XmlLockVersion" use="required">   <xs:annotation>     <xs:documentation>The version of the Calendar to which the caller is saving the given Calendar Entry.</xs:documentation>   </xs:annotation> </xs:attribute>

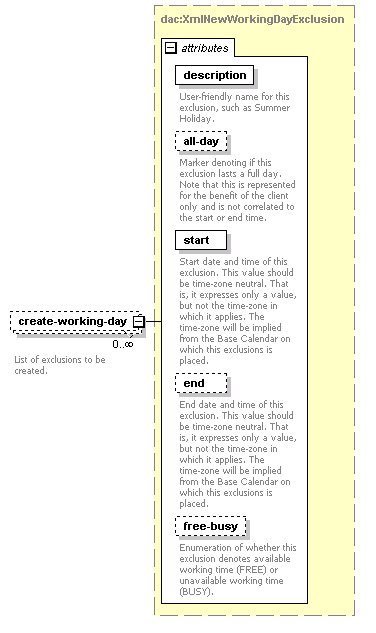

element saveCalendarEntry/create-working-day

diagram
type	XmlNewWorkingDayExclusion
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation description   xs:string   required         documentation User-friendly name for this exclusion, such as Summer Holiday. all-day   xs:boolean      false      documentation Marker denoting if this exclusion lasts a full day. Note that this is represented for the benefit of the client only and is not correlated to the start or end time. start   xs:dateTime   required         documentation Start date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. end   xs:dateTime   optional         documentation End date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. free-busy   XmlFreeBusyType   optional   BUSY      documentation Enumeration of whether this exclusion denotes available working time (FREE) or unavailable working time (BUSY).
annotation	documentation List of exclusions to be created.
source	<xs:element name="create-working-day" type="dac:XmlNewWorkingDayExclusion" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>List of exclusions to be created.</xs:documentation>   </xs:annotation> </xs:element>

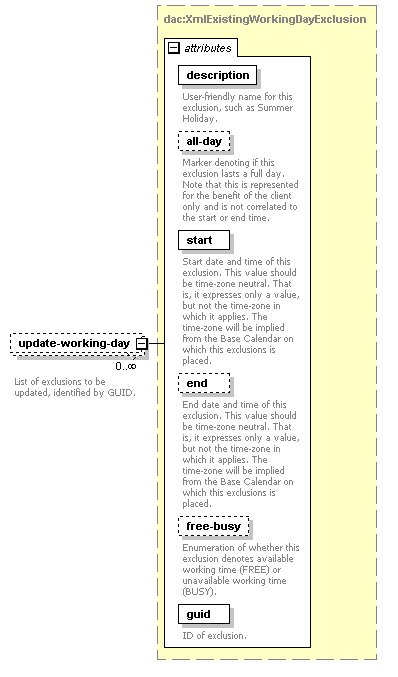

element saveCalendarEntry/update-working-day

diagram
type	XmlExistingWorkingDayExclusion
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation description   xs:string   required         documentation User-friendly name for this exclusion, such as Summer Holiday. all-day   xs:boolean      false      documentation Marker denoting if this exclusion lasts a full day. Note that this is represented for the benefit of the client only and is not correlated to the start or end time. start   xs:dateTime   required         documentation Start date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. end   xs:dateTime   optional         documentation End date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. free-busy   XmlFreeBusyType   optional   BUSY      documentation Enumeration of whether this exclusion denotes available working time (FREE) or unavailable working time (BUSY). guid   XmlGuidType   required         documentation ID of exclusion.
annotation	documentation List of exclusions to be updated, identified by GUID.
source	<xs:element name="update-working-day" type="dac:XmlExistingWorkingDayExclusion" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>List of exclusions to be updated, identified by GUID.</xs:documentation>   </xs:annotation> </xs:element>

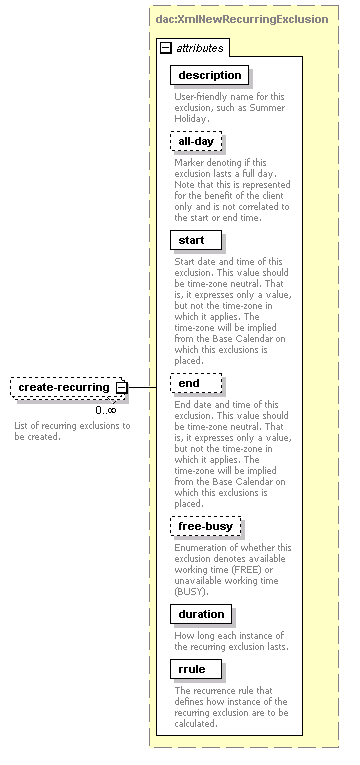

element saveCalendarEntry/create-recurring

diagram
type	XmlNewRecurringExclusion
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation description   xs:string   required         documentation User-friendly name for this exclusion, such as Summer Holiday. all-day   xs:boolean      false      documentation Marker denoting if this exclusion lasts a full day. Note that this is represented for the benefit of the client only and is not correlated to the start or end time. start   xs:dateTime   required         documentation Start date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. end   xs:dateTime   optional         documentation End date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. free-busy   XmlFreeBusyType   optional   BUSY      documentation Enumeration of whether this exclusion denotes available working time (FREE) or unavailable working time (BUSY). duration   xs:duration   required         documentation How long each instance of the recurring exclusion lasts. rrule   XmlRecurrenceRule   required         documentation The recurrence rule that defines how instance of the recurring exclusion are to be calculated.
annotation	documentation List of recurring exclusions to be created.
source	<xs:element name="create-recurring" type="dac:XmlNewRecurringExclusion" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>List of recurring exclusions to be created.</xs:documentation>   </xs:annotation> </xs:element>

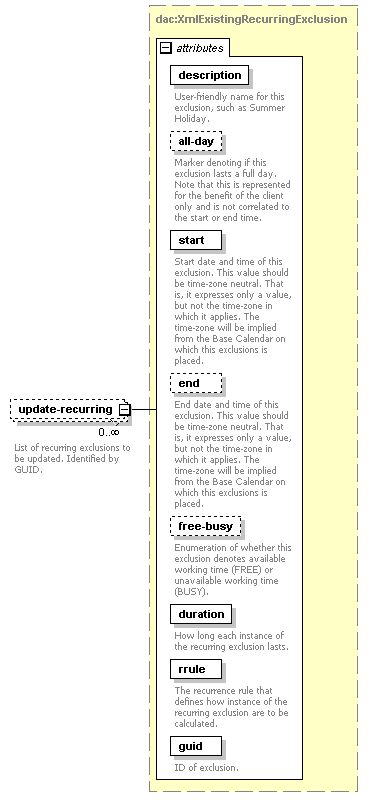

element saveCalendarEntry/update-recurring

diagram
type	XmlExistingRecurringExclusion
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation description   xs:string   required         documentation User-friendly name for this exclusion, such as Summer Holiday. all-day   xs:boolean      false      documentation Marker denoting if this exclusion lasts a full day. Note that this is represented for the benefit of the client only and is not correlated to the start or end time. start   xs:dateTime   required         documentation Start date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. end   xs:dateTime   optional         documentation End date and time of this exclusion. This value should be time-zone neutral. That is, it expresses only a value, but not the time-zone in which it applies. The time-zone will be implied from the Base Calendar on which this exclusions is placed. free-busy   XmlFreeBusyType   optional   BUSY      documentation Enumeration of whether this exclusion denotes available working time (FREE) or unavailable working time (BUSY). duration   xs:duration   required         documentation How long each instance of the recurring exclusion lasts. rrule   XmlRecurrenceRule   required         documentation The recurrence rule that defines how instance of the recurring exclusion are to be calculated. guid   XmlGuidType   required         documentation ID of exclusion.
annotation	documentation List of recurring exclusions to be updated. Identified by GUID.
source	<xs:element name="update-recurring" type="dac:XmlExistingRecurringExclusion" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>List of recurring exclusions to be updated. Identified by GUID.</xs:documentation>   </xs:annotation> </xs:element>
