complexType PushDestinationDetail

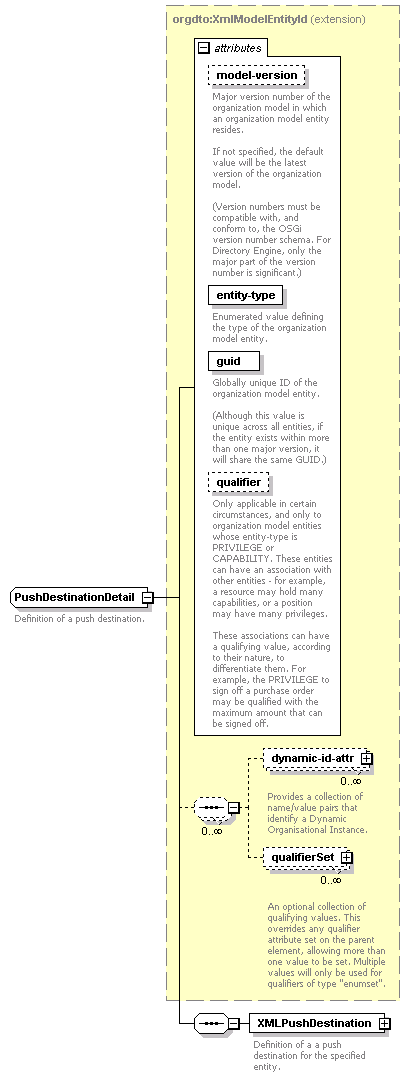

diagram
namespace	http://exporter.api.de.n2.tibco.com
type	extension of XmlModelEntityId
properties	base  orgdto:XmlModelEntityId
children	dynamic-id-attr qualifierSet XMLPushDestination
used by	element  ExportResource/push-destination
attributes	Name   Type   Use   Default   Fixed   Annotation model-version   xs:int   optional   -1      documentation Major version number of the organization model in which an organization model entity resides. If not specified, the default value will be the latest version of the organization model. (Version numbers must be compatible with, and conform to, the OSGi version number schema. For Directory Engine, only the major part of the version number is significant.) entity-type   OrganisationalEntityType   required         documentation Enumerated value defining the type of the organization model entity. guid   xs:string   required         documentation Globally unique ID of the organization model entity. (Although this value is unique across all entities, if the entity exists within more than one major version, it will share the same GUID.) qualifier   xs:string   optional         documentation Only applicable in certain circumstances, and only to organization model entities whose entity-type is PRIVILEGE or CAPABILITY. These entities can have an association with other entities - for example, a resource may hold many capabilities, or a position may have many privileges. These associations can have a qualifying value, according to their nature, to differentiate them. For example, the PRIVILEGE to sign off a purchase order may be qualified with the maximum amount that can be signed off.
annotation	documentation Definition of a push destination.
source	<xs:complexType name="PushDestinationDetail">   <xs:annotation>     <xs:documentation>Definition of a push destination.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="orgdto:XmlModelEntityId">       <xs:sequence>         <xs:element name="XMLPushDestination">           <xs:annotation>             <xs:documentation>Definition of a a push destination for the specified entity.</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:choice>               <xs:element name="target" type="xs:string" maxOccurs="unbounded">                 <xs:annotation>                   <xs:documentation>Value to be used for this push destination. This is only supplied if the value is not retrieved from a parameter descriptor (defined in param-descriptor).</xs:documentation>                 </xs:annotation>               </xs:element>               <xs:element name="param-descriptor" type="xs:string">                 <xs:annotation>                   <xs:documentation>Unique ID of a prameter descriptor whose value should be used for the push destination. </xs:documentation>                 </xs:annotation>               </xs:element>             </xs:choice>             <xs:attribute name="name" type="xs:string" use="required">               <xs:annotation>                 <xs:documentation>Unique name of this push destination.</xs:documentation>               </xs:annotation>             </xs:attribute>             <xs:attribute name="channel-type" type="xs:string" use="required">               <xs:annotation>                 <xs:documentation>Enumerated type defining the presentation technology used by the channel associated with this push destination.</xs:documentation>               </xs:annotation>             </xs:attribute>             <xs:attribute name="channel-ID" type="xs:string" use="required">               <xs:annotation>                 <xs:documentation>Unique ID of the channel associated with this push destination.</xs:documentation>               </xs:annotation>             </xs:attribute>             <xs:attribute name="enabled" type="xs:boolean" use="required">               <xs:annotation>                 <xs:documentation>Boolean value indicating whether this push destination is currently enabled (TRUE) or not (FALSE).</xs:documentation>               </xs:annotation>             </xs:attribute>           </xs:complexType>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element PushDestinationDetail/XMLPushDestination

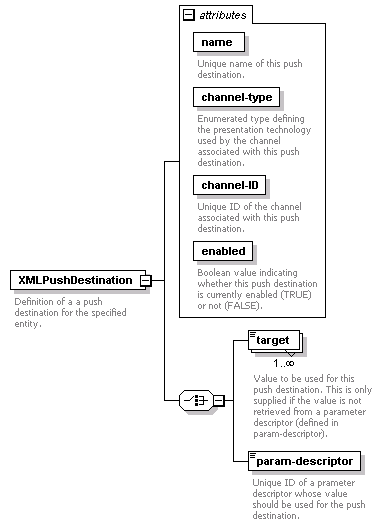

diagram
properties	content  complex
children	target param-descriptor
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string   required         documentation Unique name of this push destination. channel-type   xs:string   required         documentation Enumerated type defining the presentation technology used by the channel associated with this push destination. channel-ID   xs:string   required         documentation Unique ID of the channel associated with this push destination. enabled   xs:boolean   required         documentation Boolean value indicating whether this push destination is currently enabled (TRUE) or not (FALSE).
annotation	documentation Definition of a a push destination for the specified entity.
source	<xs:element name="XMLPushDestination">   <xs:annotation>     <xs:documentation>Definition of a a push destination for the specified entity.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice>       <xs:element name="target" type="xs:string" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Value to be used for this push destination. This is only supplied if the value is not retrieved from a parameter descriptor (defined in param-descriptor).</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="param-descriptor" type="xs:string">         <xs:annotation>           <xs:documentation>Unique ID of a prameter descriptor whose value should be used for the push destination. </xs:documentation>         </xs:annotation>       </xs:element>     </xs:choice>     <xs:attribute name="name" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>Unique name of this push destination.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="channel-type" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>Enumerated type defining the presentation technology used by the channel associated with this push destination.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="channel-ID" type="xs:string" use="required">       <xs:annotation>         <xs:documentation>Unique ID of the channel associated with this push destination.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="enabled" type="xs:boolean" use="required">       <xs:annotation>         <xs:documentation>Boolean value indicating whether this push destination is currently enabled (TRUE) or not (FALSE).</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute PushDestinationDetail/XMLPushDestination/@name

type	xs:string
properties	use  required
annotation	documentation Unique name of this push destination.
source	<xs:attribute name="name" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>Unique name of this push destination.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute PushDestinationDetail/XMLPushDestination/@channel-type

type	xs:string
properties	use  required
annotation	documentation Enumerated type defining the presentation technology used by the channel associated with this push destination.
source	<xs:attribute name="channel-type" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>Enumerated type defining the presentation technology used by the channel associated with this push destination.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute PushDestinationDetail/XMLPushDestination/@channel-ID

type	xs:string
properties	use  required
annotation	documentation Unique ID of the channel associated with this push destination.
source	<xs:attribute name="channel-ID" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>Unique ID of the channel associated with this push destination.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute PushDestinationDetail/XMLPushDestination/@enabled

type	xs:boolean
properties	use  required
annotation	documentation Boolean value indicating whether this push destination is currently enabled (TRUE) or not (FALSE).
source	<xs:attribute name="enabled" type="xs:boolean" use="required">   <xs:annotation>     <xs:documentation>Boolean value indicating whether this push destination is currently enabled (TRUE) or not (FALSE).</xs:documentation>   </xs:annotation> </xs:attribute>

element PushDestinationDetail/XMLPushDestination/target

diagram
type	xs:string
properties	minOcc  1 maxOcc  unbounded content  simple
annotation	documentation Value to be used for this push destination. This is only supplied if the value is not retrieved from a parameter descriptor (defined in param-descriptor).
source	<xs:element name="target" type="xs:string" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Value to be used for this push destination. This is only supplied if the value is not retrieved from a parameter descriptor (defined in param-descriptor).</xs:documentation>   </xs:annotation> </xs:element>

element PushDestinationDetail/XMLPushDestination/param-descriptor

diagram
type	xs:string
properties	content  simple
annotation	documentation Unique ID of a prameter descriptor whose value should be used for the push destination.
source	<xs:element name="param-descriptor" type="xs:string">   <xs:annotation>     <xs:documentation>Unique ID of a prameter descriptor whose value should be used for the push destination. </xs:documentation>   </xs:annotation> </xs:element>
