complexType XmlExtensionPointSetting

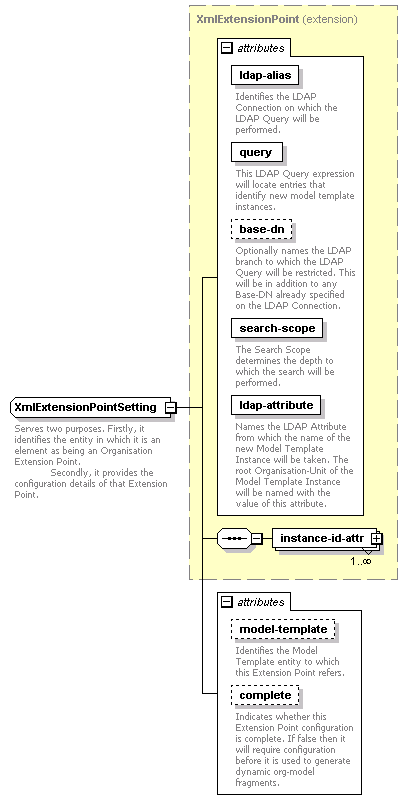

diagram
namespace	http://base.api.de.bpm.tibco.com
type	extension of XmlExtensionPoint
properties	base  XmlExtensionPoint
children	instance-id-attr
used by	element  XmlOrgUnit/extension-point
attributes	Name   Type   Use   Default   Fixed   Annotation ldap-alias   xs:string   required         documentation Identifies the LDAP Connection on which the LDAP Query will be performed. query   xs:string   required         documentation This LDAP Query expression will locate entries that identify new model template instances. base-dn   xs:string   optional         documentation Optionally names the LDAP branch to which the LDAP Query will be restricted. This will be in addition to any Base-DN already specified on the LDAP Connection. search-scope   XmlLdapSearchScope   required         documentation The Search Scope determines the depth to which the search will be performed. ldap-attribute   xs:string   required         documentation Names the LDAP Attribute from which the name of the new Model Template Instance will be taken. The root Organisation-Unit of the Model Template Instance will be named with the value of this attribute. model-template   xs:string            documentation Identifies the Model Template entity to which this Extension Point refers. complete   xs:boolean      true      documentation Indicates whether this Extension Point configuration is complete. If false then it will require configuration before it is used to generate dynamic org-model fragments.
annotation	documentation Serves two purposes. Firstly, it identifies the entity in which it is an element as being an Organisation Extension Point.             Secondly, it provides the configuration details of that Extension Point.
source	<xs:complexType name="XmlExtensionPointSetting">   <xs:annotation>     <xs:documentation>Serves two purposes. Firstly, it identifies the entity in which it is an element as being an Organisation Extension Point.             Secondly, it provides the configuration details of that Extension Point.             </xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="XmlExtensionPoint">       <xs:attribute name="model-template" type="xs:string">         <xs:annotation>           <xs:documentation>Identifies the Model Template entity to which this Extension Point refers.</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attribute name="complete" type="xs:boolean" default="true">         <xs:annotation>           <xs:documentation>Indicates whether this Extension Point configuration is complete. If false then it will require configuration before it is used to generate dynamic org-model fragments.</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute XmlExtensionPointSetting/@model-template

type	xs:string
annotation	documentation Identifies the Model Template entity to which this Extension Point refers.
source	<xs:attribute name="model-template" type="xs:string">   <xs:annotation>     <xs:documentation>Identifies the Model Template entity to which this Extension Point refers.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute XmlExtensionPointSetting/@complete

type	xs:boolean
properties	default  true
annotation	documentation Indicates whether this Extension Point configuration is complete. If false then it will require configuration before it is used to generate dynamic org-model fragments.
source	<xs:attribute name="complete" type="xs:boolean" default="true">   <xs:annotation>     <xs:documentation>Indicates whether this Extension Point configuration is complete. If false then it will require configuration before it is used to generate dynamic org-model fragments.</xs:documentation>   </xs:annotation> </xs:attribute>
