element getLdapEntryResponse

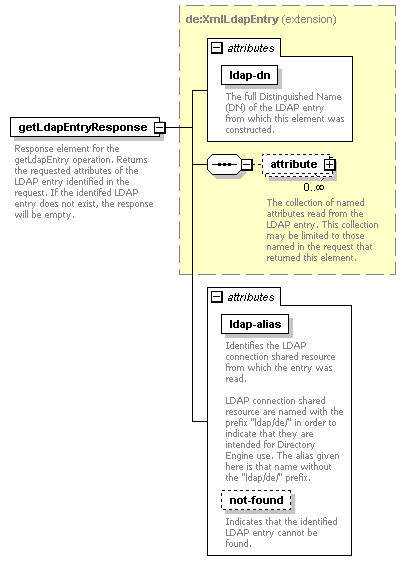

diagram
namespace	http://directory.api.de.bpm.tibco.com
type	extension of XmlLdapEntry
properties	content  complex
children	attribute
attributes	Name   Type   Use   Default   Fixed   Annotation ldap-dn   xs:string   required         documentation The full Distinguished Name (DN) of the LDAP entry from which this element was constructed. ldap-alias   xs:string   required         documentation Identifies the LDAP connection shared resource from which the entry was read. LDAP connection shared resource are named with the prefix "ldap/de/" in order to indicate that they are intended for Directory Engine use. The alias given here is that name without the "ldap/de/" prefix. not-found   xs:boolean      false      documentation Indicates that the identified LDAP entry cannot be found.
annotation	documentation Response element for the getLdapEntry operation. Returns the requested attributes of the LDAP entry identified in the request. If the identifed LDAP entry does not exist, the response will be empty.
source	<xs:element name="getLdapEntryResponse">   <xs:annotation>     <xs:documentation>Response element for the getLdapEntry operation. Returns the requested attributes of the LDAP entry identified in the request. If the identifed LDAP entry does not exist, the response will be empty.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="de:XmlLdapEntry">         <xs:attribute name="ldap-alias" type="xs:string" use="required">           <xs:annotation>             <xs:documentation>Identifies the LDAP connection shared resource from which the entry was read. LDAP connection shared resource are named with the prefix "ldap/de/" in order to indicate that they are intended for Directory Engine use. The alias given here is that name without the "ldap/de/" prefix.</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="not-found" type="xs:boolean" default="false">           <xs:annotation>             <xs:documentation>Indicates that the identified LDAP entry cannot be found.</xs:documentation>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute getLdapEntryResponse/@ldap-alias

type	xs:string
properties	use  required
annotation	documentation Identifies the LDAP connection shared resource from which the entry was read. LDAP connection shared resource are named with the prefix "ldap/de/" in order to indicate that they are intended for Directory Engine use. The alias given here is that name without the "ldap/de/" prefix.
source	<xs:attribute name="ldap-alias" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>Identifies the LDAP connection shared resource from which the entry was read. LDAP connection shared resource are named with the prefix "ldap/de/" in order to indicate that they are intended for Directory Engine use. The alias given here is that name without the "ldap/de/" prefix.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute getLdapEntryResponse/@not-found

type	xs:boolean
properties	default  false
annotation	documentation Indicates that the identified LDAP entry cannot be found.
source	<xs:attribute name="not-found" type="xs:boolean" default="false">   <xs:annotation>     <xs:documentation>Indicates that the identified LDAP entry cannot be found.</xs:documentation>   </xs:annotation> </xs:attribute>
