element listContainersResponse

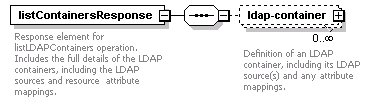

diagram
namespace	http://directory.api.de.bpm.tibco.com
properties	content  complex
children	ldap-container
annotation	documentation Response element for listLDAPContainers operation. Includes the full details of the LDAP containers, including the LDAP sources and resource  attribute mappings.
source	<xs:element name="listContainersResponse">   <xs:annotation>     <xs:documentation>Response element for listLDAPContainers operation. Includes the full details of the LDAP containers, including the LDAP sources and resource  attribute mappings.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:annotation>       <xs:documentation>A list of the configured LDAP Containers.</xs:documentation>     </xs:annotation>     <xs:sequence>       <xs:element name="ldap-container" type="de:XmlContainer" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Definition of an LDAP container, including its LDAP source(s) and any attribute mappings.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element listContainersResponse/ldap-container

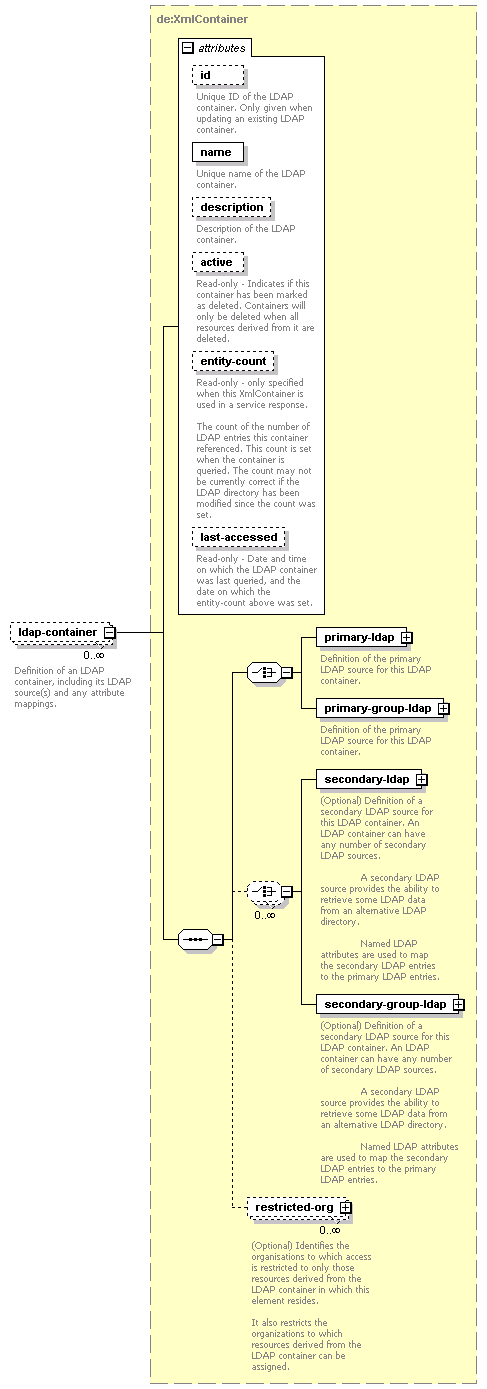

diagram
type	XmlContainer
properties	minOcc  0 maxOcc  unbounded content  complex
children	primary-ldap primary-group-ldap secondary-ldap secondary-group-ldap restricted-org
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:long   optional   0      documentation Unique ID of the LDAP container. Only given when updating an existing LDAP container. name   xs:string   required         documentation Unique name of the LDAP container. description   xs:string   optional         documentation Description of the LDAP container. active   xs:boolean      true      documentation Read-only - Indicates if this container has been marked as deleted. Containers will only be deleted when all resources derived from it are deleted. entity-count   xs:int   optional         documentation Read-only - only specified when this XmlContainer is used in a service response. The count of the number of LDAP entries this container referenced. This count is set when the container is queried. The count may not be currently correct if the LDAP directory has been modified since the count was set. last-accessed   xs:dateTime   optional         documentation Read-only - Date and time on which the LDAP container was last queried, and the date on which the entity-count above was set.
annotation	documentation Definition of an LDAP container, including its LDAP source(s) and any attribute mappings.
source	<xs:element name="ldap-container" type="de:XmlContainer" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Definition of an LDAP container, including its LDAP source(s) and any attribute mappings.</xs:documentation>   </xs:annotation> </xs:element>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
