complexType NamedParameterMetadata

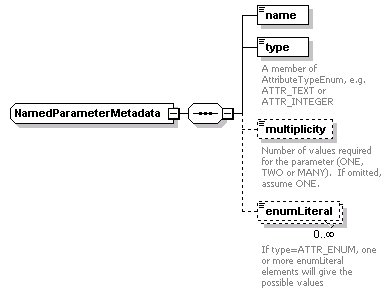

diagram
namespace	http://api.bds.tibco.com
children	name type multiplicity enumLiteral
used by	element  ViewSpecificationWithID/parameter
source	<xs:complexType name="NamedParameterMetadata">   <xs:sequence>     <xs:element name="name" type="xs:string"/>     <xs:element name="type" type="AttributeTypeEnum">       <xs:annotation>         <xs:documentation>A member of AttributeTypeEnum, e.g. ATTR_TEXT or ATTR_INTEGER</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="multiplicity" type="ParameterValueMultiplicityEnum" minOccurs="0">       <xs:annotation>         <xs:documentation>Number of values required for the parameter (ONE, TWO or MANY).  If omitted, assume ONE.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="enumLiteral" type="xs:string" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>If type=ATTR_ENUM, one or more enumLiteral elements will give the possible values</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element NamedParameterMetadata/name

diagram
type	xs:string
properties	content  simple
source	<xs:element name="name" type="xs:string"/>

element NamedParameterMetadata/type

diagram
type	AttributeTypeEnum
properties	content  simple
facets	Kind  Value  Annotation enumeration  ATTR_TEXT enumeration  ATTR_ID enumeration  ATTR_URI enumeration  ATTR_DATE enumeration  ATTR_TIME enumeration  ATTR_DATETIME enumeration  ATTR_DATETIMETZ enumeration  ATTR_DURATION enumeration  ATTR_INTEGER enumeration  ATTR_DECIMAL enumeration  ATTR_BOOLEAN enumeration  ATTR_ENUM enumeration  OBJECT
annotation	documentation A member of AttributeTypeEnum, e.g. ATTR_TEXT or ATTR_INTEGER
source	<xs:element name="type" type="AttributeTypeEnum">   <xs:annotation>     <xs:documentation>A member of AttributeTypeEnum, e.g. ATTR_TEXT or ATTR_INTEGER</xs:documentation>   </xs:annotation> </xs:element>

element NamedParameterMetadata/multiplicity

diagram
type	ParameterValueMultiplicityEnum
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  ONE enumeration  TWO enumeration  MANY
annotation	documentation Number of values required for the parameter (ONE, TWO or MANY).  If omitted, assume ONE.
source	<xs:element name="multiplicity" type="ParameterValueMultiplicityEnum" minOccurs="0">   <xs:annotation>     <xs:documentation>Number of values required for the parameter (ONE, TWO or MANY).  If omitted, assume ONE.</xs:documentation>   </xs:annotation> </xs:element>

element NamedParameterMetadata/enumLiteral

diagram
type	xs:string
properties	minOcc  0 maxOcc  unbounded content  simple
annotation	documentation If type=ATTR_ENUM, one or more enumLiteral elements will give the possible values
source	<xs:element name="enumLiteral" type="xs:string" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>If type=ATTR_ENUM, one or more enumLiteral elements will give the possible values</xs:documentation>   </xs:annotation> </xs:element>
