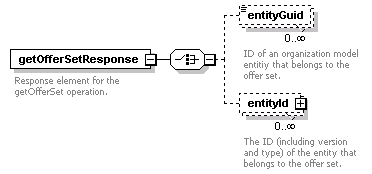

element getOfferSetResponse

diagram
namespace	http://api.brm.n2.tibco.com
properties	content  complex
children	entityGuid entityId
annotation	documentation Response element for the getOfferSet operation.
source	<xs:element name="getOfferSetResponse">   <xs:annotation>     <xs:documentation>Response element for the getOfferSet operation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice>       <xs:element name="entityGuid" type="xs:string" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>ID of an organization model entitiy that belongs to the offer set.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="entityId" type="orgdto:XmlModelEntityId" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>The ID (including version and type) of the entity that belongs to the offer set.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:choice>   </xs:complexType> </xs:element>

element getOfferSetResponse/entityGuid

diagram
type	xs:string
properties	minOcc  0 maxOcc  unbounded content  simple
annotation	documentation ID of an organization model entitiy that belongs to the offer set.
source	<xs:element name="entityGuid" type="xs:string" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>ID of an organization model entitiy that belongs to the offer set.</xs:documentation>   </xs:annotation> </xs:element>

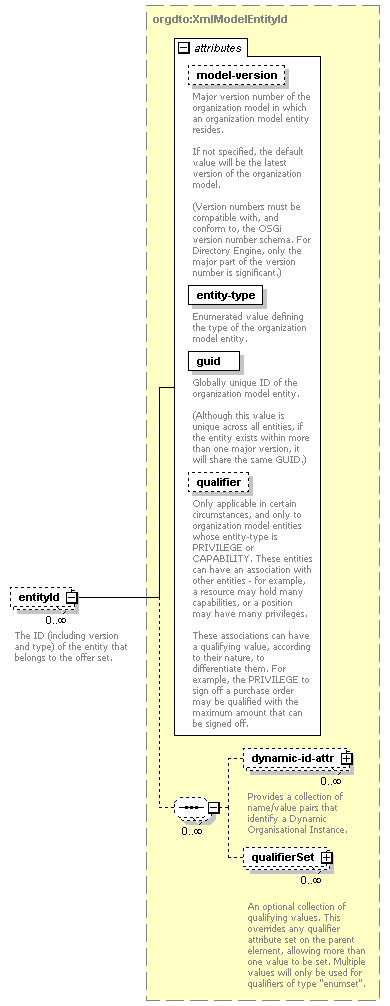

element getOfferSetResponse/entityId

diagram
type	XmlModelEntityId
properties	minOcc  0 maxOcc  unbounded content  complex
children	dynamic-id-attr qualifierSet
attributes	Name   Type   Use   Default   Fixed   Annotation model-version   xs:int   optional   -1      documentation Major version number of the organization model in which an organization model entity resides. If not specified, the default value will be the latest version of the organization model. (Version numbers must be compatible with, and conform to, the OSGi version number schema. For Directory Engine, only the major part of the version number is significant.) entity-type   OrganisationalEntityType   required         documentation Enumerated value defining the type of the organization model entity. guid   xs:string   required         documentation Globally unique ID of the organization model entity. (Although this value is unique across all entities, if the entity exists within more than one major version, it will share the same GUID.) qualifier   xs:string   optional         documentation Only applicable in certain circumstances, and only to organization model entities whose entity-type is PRIVILEGE or CAPABILITY. These entities can have an association with other entities - for example, a resource may hold many capabilities, or a position may have many privileges. These associations can have a qualifying value, according to their nature, to differentiate them. For example, the PRIVILEGE to sign off a purchase order may be qualified with the maximum amount that can be signed off.
annotation	documentation The ID (including version and type) of the entity that belongs to the offer set.
source	<xs:element name="entityId" type="orgdto:XmlModelEntityId" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>The ID (including version and type) of the entity that belongs to the offer set.</xs:documentation>   </xs:annotation> </xs:element>
