element listTimeZonesResponse

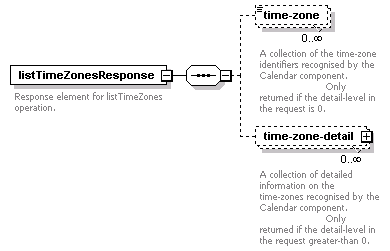

diagram
namespace	http://workcal.api.dac.n2.tibco.com
properties	content  complex
children	time-zone time-zone-detail
annotation	documentation Response element for listTimeZones operation.
source	<xs:element name="listTimeZonesResponse">   <xs:annotation>     <xs:documentation>Response element for listTimeZones operation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="time-zone" type="xs:string" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>A collection of the time-zone identifiers recognised by the Calendar component.                       Only returned if the detail-level in the request is 0.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="time-zone-detail" type="XmlTimeZone" minOccurs="0" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>A collection of detailed information on the time-zones recognised by the Calendar component.                       Only returned if the detail-level in the request greater-than 0.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element listTimeZonesResponse/time-zone

diagram
type	xs:string
properties	minOcc  0 maxOcc  unbounded content  simple
annotation	documentation A collection of the time-zone identifiers recognised by the Calendar component.                       Only returned if the detail-level in the request is 0.
source	<xs:element name="time-zone" type="xs:string" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>A collection of the time-zone identifiers recognised by the Calendar component.                       Only returned if the detail-level in the request is 0.</xs:documentation>   </xs:annotation> </xs:element>

element listTimeZonesResponse/time-zone-detail

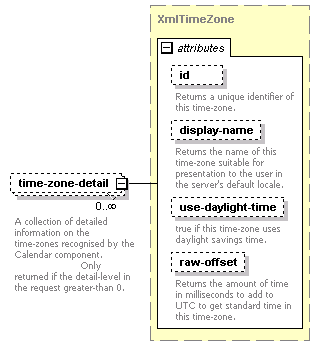

diagram
type	XmlTimeZone
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string            documentation Returns a unique identifier of this time-zone. display-name   xs:string            documentation Returns the name of this time-zone suitable for presentation to the user in the server's default locale. use-daylight-time   xs:boolean            documentation true if this time-zone uses daylight savings time. raw-offset   xs:int            documentation Returns the amount of time in milliseconds to add to UTC to get standard time in this time-zone.
annotation	documentation A collection of detailed information on the time-zones recognised by the Calendar component.                       Only returned if the detail-level in the request greater-than 0.
source	<xs:element name="time-zone-detail" type="XmlTimeZone" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>A collection of detailed information on the time-zones recognised by the Calendar component.                       Only returned if the detail-level in the request greater-than 0.</xs:documentation>   </xs:annotation> </xs:element>
