complexType XmlUpdatePushDestinations

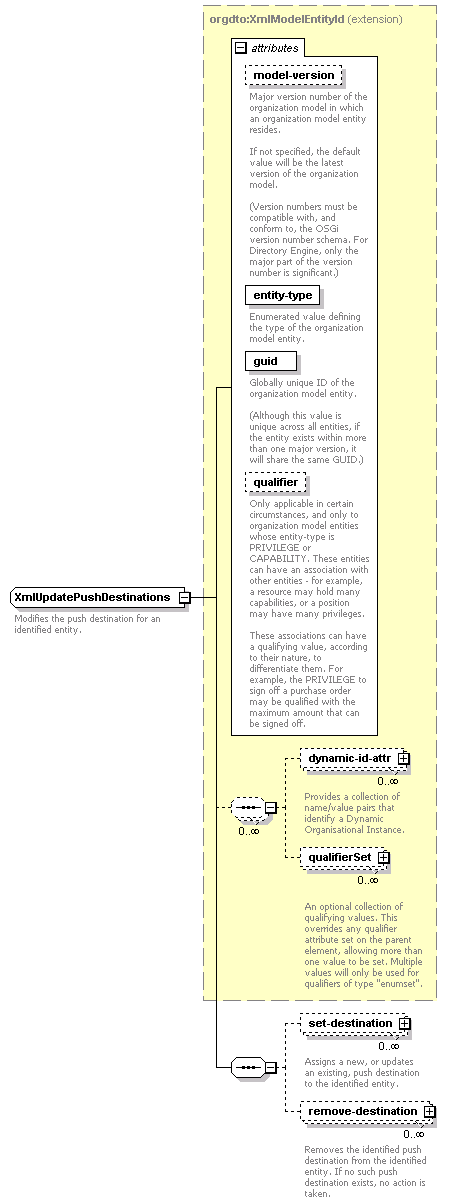

diagram
namespace	http://orgmodel.api.de.bpm.tibco.com
type	extension of XmlModelEntityId
properties	base  orgdto:XmlModelEntityId
children	dynamic-id-attr qualifierSet set-destination remove-destination
used by	element  updatePushDestinations
attributes	Name   Type   Use   Default   Fixed   Annotation model-version   xs:int   optional   -1      documentation Major version number of the organization model in which an organization model entity resides. If not specified, the default value will be the latest version of the organization model. (Version numbers must be compatible with, and conform to, the OSGi version number schema. For Directory Engine, only the major part of the version number is significant.) entity-type   OrganisationalEntityType   required         documentation Enumerated value defining the type of the organization model entity. guid   xs:string   required         documentation Globally unique ID of the organization model entity. (Although this value is unique across all entities, if the entity exists within more than one major version, it will share the same GUID.) qualifier   xs:string   optional         documentation Only applicable in certain circumstances, and only to organization model entities whose entity-type is PRIVILEGE or CAPABILITY. These entities can have an association with other entities - for example, a resource may hold many capabilities, or a position may have many privileges. These associations can have a qualifying value, according to their nature, to differentiate them. For example, the PRIVILEGE to sign off a purchase order may be qualified with the maximum amount that can be signed off.
annotation	documentation Modifies the push destination for an identified entity.
source	<xs:complexType name="XmlUpdatePushDestinations">   <xs:annotation>     <xs:documentation>Modifies the push destination for an identified entity.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="orgdto:XmlModelEntityId">       <xs:sequence>         <xs:element name="set-destination" type="de:XmlPushDestination" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Assigns a new, or updates an existing, push destination to the identified entity.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="remove-destination" type="de:XmlPushDestinationId" minOccurs="0" maxOccurs="unbounded">           <xs:annotation>             <xs:documentation>Removes the identified push destination from the identified entity. If no such push destination exists, no action is taken.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

element XmlUpdatePushDestinations/set-destination

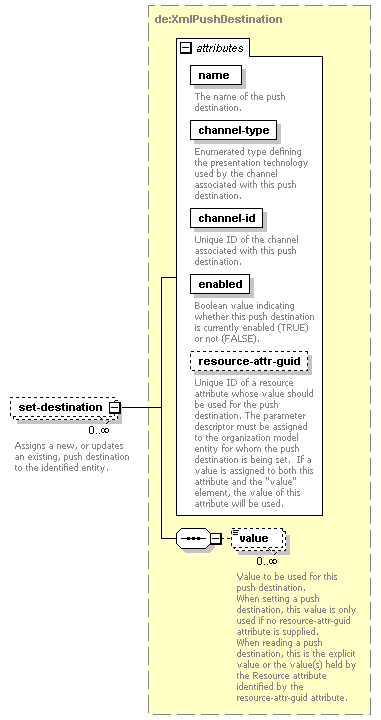

diagram
type	XmlPushDestination
properties	minOcc  0 maxOcc  unbounded content  complex
children	value
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string   required         documentation The name of the push destination. channel-type   ChannelType   required         documentation Enumerated type defining the presentation technology used by the channel associated with this push destination. channel-id   xs:string   required         documentation Unique ID of the channel associated with this push destination. enabled   xs:boolean   required         documentation Boolean value indicating whether this push destination is currently enabled (TRUE) or not (FALSE). resource-attr-guid   xs:string   optional         documentation Unique ID of a resource attribute whose value should be used for the push destination. The parameter descriptor must be assigned to the organization model entity for whom the push destination is being set.  If a value is assigned to both this attribute and the "value" element, the value of this attribute will be used.
annotation	documentation Assigns a new, or updates an existing, push destination to the identified entity.
source	<xs:element name="set-destination" type="de:XmlPushDestination" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Assigns a new, or updates an existing, push destination to the identified entity.</xs:documentation>   </xs:annotation> </xs:element>

element XmlUpdatePushDestinations/remove-destination

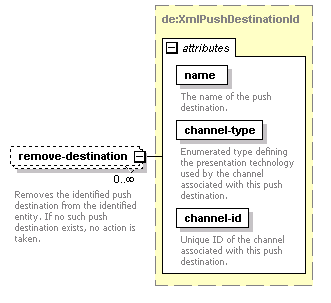

diagram
type	XmlPushDestinationId
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string   required         documentation The name of the push destination. channel-type   ChannelType   required         documentation Enumerated type defining the presentation technology used by the channel associated with this push destination. channel-id   xs:string   required         documentation Unique ID of the channel associated with this push destination.
annotation	documentation Removes the identified push destination from the identified entity. If no such push destination exists, no action is taken.
source	<xs:element name="remove-destination" type="de:XmlPushDestinationId" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Removes the identified push destination from the identified entity. If no such push destination exists, no action is taken.</xs:documentation>   </xs:annotation> </xs:element>
