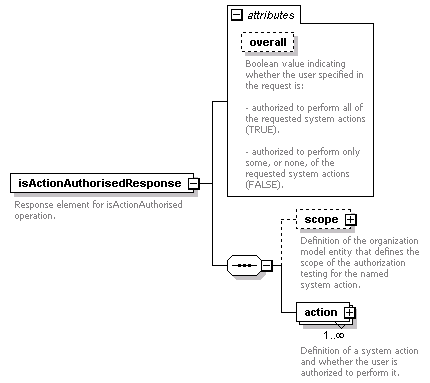

element isActionAuthorisedResponse

diagram
namespace	http://security.api.de.n2.tibco.com
properties	content  complex
children	scope action
attributes	Name   Type   Use   Default   Fixed   Annotation overall   xs:boolean            documentation Boolean value indicating whether the user specified in the request is:                    - authorized to perform all of the requested system actions (TRUE). - authorized to perform only some, or none, of the requested system actions (FALSE).
annotation	documentation Response element for isActionAuthorised operation.
source	<xs:element name="isActionAuthorisedResponse">   <xs:annotation>     <xs:documentation>Response element for isActionAuthorised operation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="scope" type="orgdto:XmlModelEntityId" minOccurs="0">         <xs:annotation>           <xs:documentation>Definition of the organization model entity that defines the scope of the authorization testing for the named system action.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="action" maxOccurs="unbounded">         <xs:annotation>           <xs:documentation>Definition of a system action and whether the user is authorized to perform it.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:complexContent>             <xs:extension base="XmlSystemAction">               <xs:attribute name="authorised" type="xs:boolean">                 <xs:annotation>                   <xs:documentation>Boolean value indicating whether the user specified in the request: - has the necessary privileges to perform the named system action (TRUE). - does not have the necessary privileges to perform the named system action (FALSE).</xs:documentation>                 </xs:annotation>               </xs:attribute>             </xs:extension>           </xs:complexContent>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute name="overall" type="xs:boolean">       <xs:annotation>         <xs:documentation>Boolean value indicating whether the user specified in the request is:                    - authorized to perform all of the requested system actions (TRUE). - authorized to perform only some, or none, of the requested system actions (FALSE).</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute isActionAuthorisedResponse/@overall

type	xs:boolean
annotation	documentation Boolean value indicating whether the user specified in the request is:                    - authorized to perform all of the requested system actions (TRUE). - authorized to perform only some, or none, of the requested system actions (FALSE).
source	<xs:attribute name="overall" type="xs:boolean">   <xs:annotation>     <xs:documentation>Boolean value indicating whether the user specified in the request is:                    - authorized to perform all of the requested system actions (TRUE). - authorized to perform only some, or none, of the requested system actions (FALSE).</xs:documentation>   </xs:annotation> </xs:attribute>

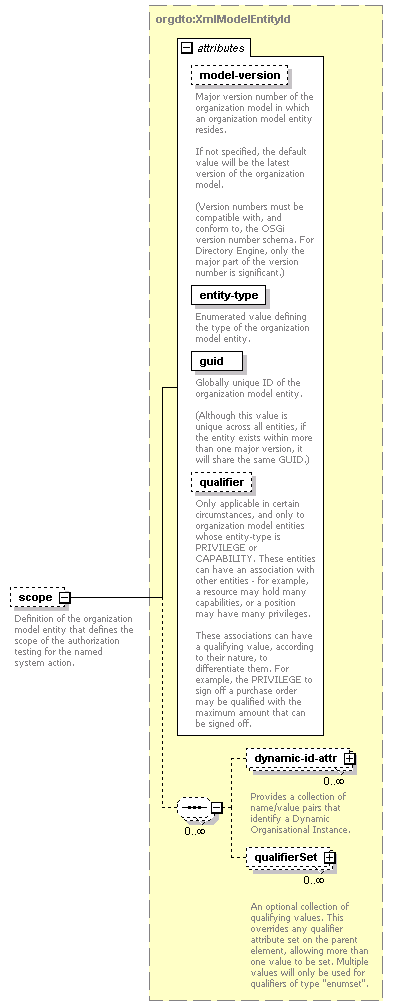

element isActionAuthorisedResponse/scope

diagram
type	XmlModelEntityId
properties	minOcc  0 maxOcc  1 content  complex
children	dynamic-id-attr qualifierSet
attributes	Name   Type   Use   Default   Fixed   Annotation model-version   xs:int   optional   -1      documentation Major version number of the organization model in which an organization model entity resides. If not specified, the default value will be the latest version of the organization model. (Version numbers must be compatible with, and conform to, the OSGi version number schema. For Directory Engine, only the major part of the version number is significant.) entity-type   OrganisationalEntityType   required         documentation Enumerated value defining the type of the organization model entity. guid   xs:string   required         documentation Globally unique ID of the organization model entity. (Although this value is unique across all entities, if the entity exists within more than one major version, it will share the same GUID.) qualifier   xs:string   optional         documentation Only applicable in certain circumstances, and only to organization model entities whose entity-type is PRIVILEGE or CAPABILITY. These entities can have an association with other entities - for example, a resource may hold many capabilities, or a position may have many privileges. These associations can have a qualifying value, according to their nature, to differentiate them. For example, the PRIVILEGE to sign off a purchase order may be qualified with the maximum amount that can be signed off.
annotation	documentation Definition of the organization model entity that defines the scope of the authorization testing for the named system action.
source	<xs:element name="scope" type="orgdto:XmlModelEntityId" minOccurs="0">   <xs:annotation>     <xs:documentation>Definition of the organization model entity that defines the scope of the authorization testing for the named system action.</xs:documentation>   </xs:annotation> </xs:element>

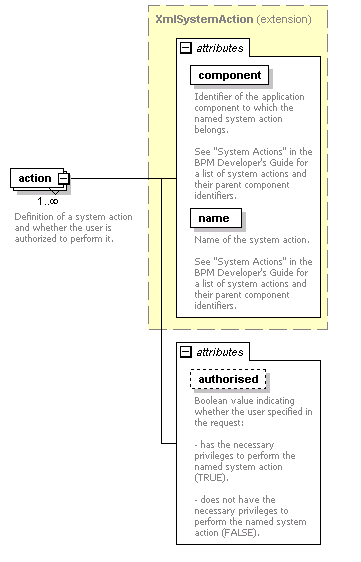

element isActionAuthorisedResponse/action

diagram
type	extension of XmlSystemAction
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation component   xs:string   required         documentation Identifier of the application component to which the named system action belongs. See "System Actions" in the BPM Developer's Guide for a list of system actions and their parent component identifiers. name   xs:string   required         documentation Name of the system action. See "System Actions" in the BPM Developer's Guide for a list of system actions and their parent component identifiers. authorised   xs:boolean            documentation Boolean value indicating whether the user specified in the request: - has the necessary privileges to perform the named system action (TRUE). - does not have the necessary privileges to perform the named system action (FALSE).
annotation	documentation Definition of a system action and whether the user is authorized to perform it.
source	<xs:element name="action" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Definition of a system action and whether the user is authorized to perform it.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="XmlSystemAction">         <xs:attribute name="authorised" type="xs:boolean">           <xs:annotation>             <xs:documentation>Boolean value indicating whether the user specified in the request: - has the necessary privileges to perform the named system action (TRUE). - does not have the necessary privileges to perform the named system action (FALSE).</xs:documentation>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute isActionAuthorisedResponse/action/@authorised

type	xs:boolean
annotation	documentation Boolean value indicating whether the user specified in the request: - has the necessary privileges to perform the named system action (TRUE). - does not have the necessary privileges to perform the named system action (FALSE).
source	<xs:attribute name="authorised" type="xs:boolean">   <xs:annotation>     <xs:documentation>Boolean value indicating whether the user specified in the request: - has the necessary privileges to perform the named system action (TRUE). - does not have the necessary privileges to perform the named system action (FALSE).</xs:documentation>   </xs:annotation> </xs:attribute>
