complexType XmlMappedAttributeValue

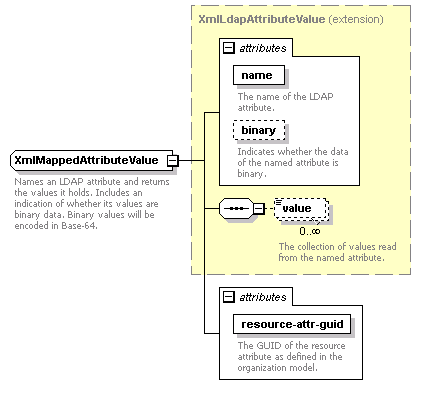

diagram
namespace	http://base.api.de.bpm.tibco.com
type	extension of XmlLdapAttributeValue
properties	base  XmlLdapAttributeValue
children	value
used by	element  getCandidateDetailResponse/attribute
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string   required         documentation The name of the LDAP attribute. binary   xs:boolean      false      documentation Indicates whether the data of the named attribute is binary. resource-attr-guid   xs:string   required         documentation The GUID of the resource attribute as defined in the organization model.
annotation	documentation Names an LDAP attribute and returns the values it holds. Includes an indication of whether its values are binary data. Binary values will be encoded in Base-64.
source	<xs:complexType name="XmlMappedAttributeValue">   <xs:annotation>     <xs:documentation>Names an LDAP attribute and returns the values it holds. Includes an indication of whether its values are binary data. Binary values will be encoded in Base-64.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="XmlLdapAttributeValue">       <xs:attribute name="resource-attr-guid" type="xs:string" use="required">         <xs:annotation>           <xs:documentation>The GUID of the resource attribute as defined in the organization model.</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute XmlMappedAttributeValue/@resource-attr-guid

type	xs:string
properties	use  required
annotation	documentation The GUID of the resource attribute as defined in the organization model.
source	<xs:attribute name="resource-attr-guid" type="xs:string" use="required">   <xs:annotation>     <xs:documentation>The GUID of the resource attribute as defined in the organization model.</xs:documentation>   </xs:annotation> </xs:attribute>
