Accessing a shared project

(Short description required.)

Note: In order to access a previously committed project with a different CPD installation or with a different user/workspace, ensure you have completed the SVN repository setup as detailed in Setting up MDM Process Designer to use the Subversion Repository.

Procedure

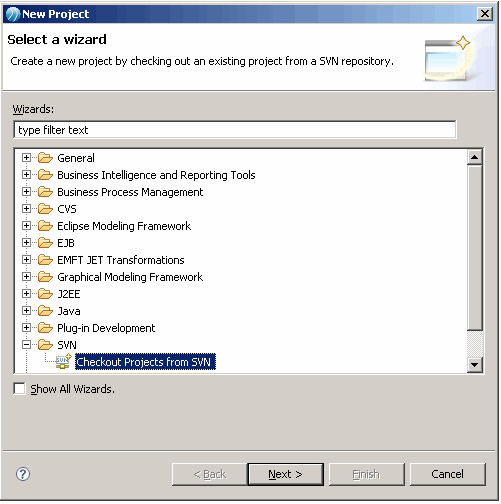

  1. Select File - > New - > Project. Select SVN- > Checkout Projects from SVN. Click Next.

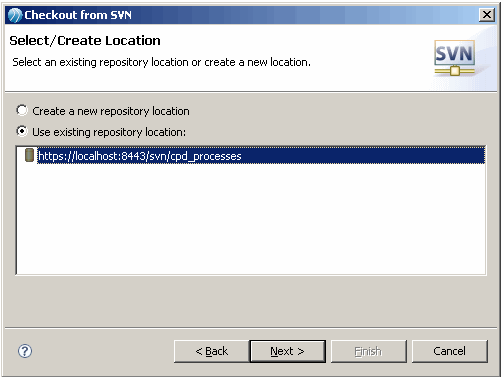

  2. Select the repository to access by selecting the Use existing repository location option. Click Next.

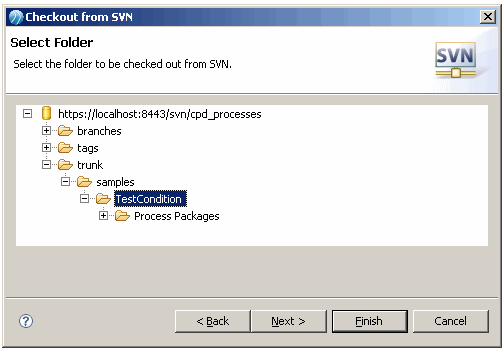

  3. Select the node in the tree control which indicates the project name. Click Next to map this project to your workspace.

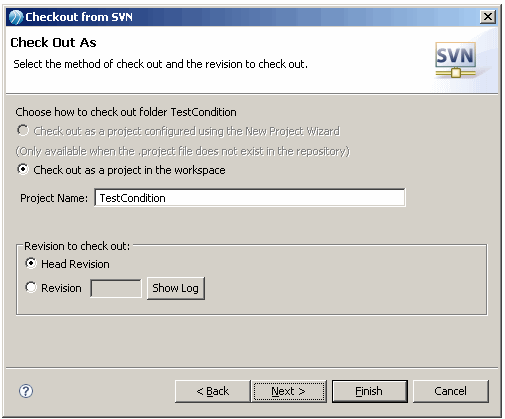

  4. Optionally, change the project name and click Finish. The project will now be available in the Modeling perspective.
