Decision Table Related Preferences

You can change the preferences related to Decision Manager from the preferences given in the TIBCO BusinessEvents Studio.

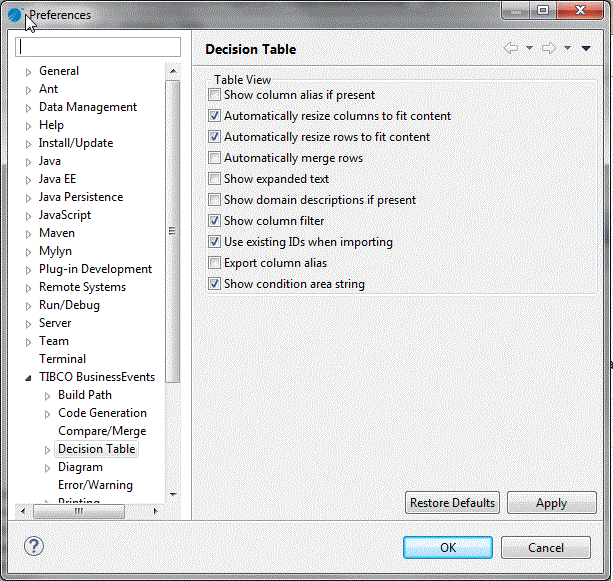

Decision Table View Preferences

The following Table View preferences set the initial state of the decision table. Text in parentheses shows the names of corresponding buttons in the Decision Table editor. The settings can be toggled in the UI, but their initial state is set by preferences you set.

Show column alias if present
Automatically resize columns to fit content (Fit Content button)
Automatically resize rows to fit content
Automatically merge rows (Merge Rows button)
Show expanded text (Show Text button)
Show domain descriptions if present.
Show column filter
Show titled border
Use existing IDs when importing
Export column alias
Show condition area string

Decision Table Analyzer Preferences

You can control the following behavior of the decision table analyzer, as well as its appearance:

Option	Description
Initially Show Table Analyzer View	Checkbox to show or hide the Table Analyzer view whenever a decision table is displayed. Also, to highlight rules in a decision table, which can be triggered on selecting the values in the analyzer view.
Highlight Partial Ranges	Checkbox to highlight rows whose condition falls completely or partially within the specified condition range.
Use Domain Model for Table Completeness	Select the checkbox to report any uncovered domain entries.
Analyze while opening table	Checkbox to analyze the decision table while opening it. If there is any equal set of conditions but with different set of actions, theanalyzer will report it. If multiple rules can be combined into one, the analyzer will report them.

Decision Table Appearance Preferences

These preferences let you set the color scheme for decision tables. For each item in the list, you can set color preferences. For condition data and action data you can specify a font.

Domain Model Preferences

You can set the domain model preferences for the decision tables using this tab. The following options are available under the Domain Model preferences.

Option	Description
Allow custom values	If selected, custom values can be entered for the attributes associated to the domain. If the check box is cleared, you can only select from the domain values drop-down list.
