Configuring a Process

After creating a project, an empty process is created. You can add activities to the empty process to complete a task. For example, place messages into a configured queue.

Prerequisites

Ensure that you have created an empty process when Creating a Project.

Procedure

  1. In the Project Explorer view, click the created project and open the empty process from the Processes folder.

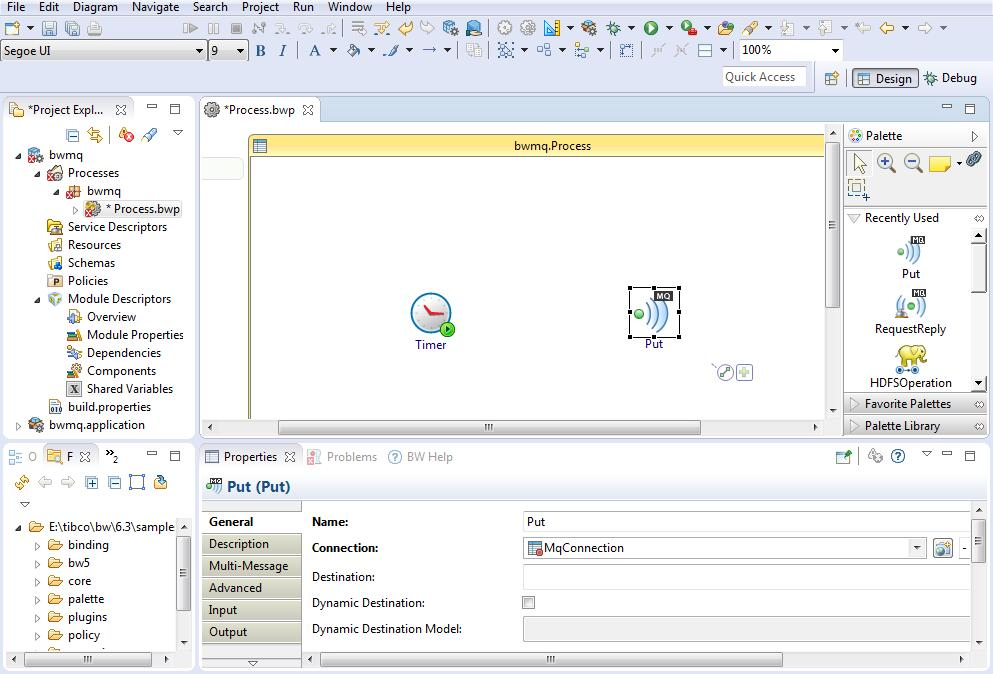

  2. Select an activity from the Palette view and drop it in the Process editor. For example, select and drop the Timer activity from the General Activities palette, and the Put activity from the MQ palette.

  3. Drag the icon to create a transition between the added activities.
  4. Configure the added activities, as described in WebSphere MQ Palette.
    Note: A WebSphere MQ Connection shared resource is required when configuring activities. See Creating a WebSphere MQ Connection for more details on how to create a WebSphere MQ Connection shared resource.
  5. Click File > Save to save the project.
