DBRequester Schema

When you create a new DBRequester schema, a corresponding section is created on the Schemas page.

Tabs on the Schemas Page

The Schemas page consists of the following tabs:

The Configuration tab contains the following fields for the Data Requester activity:

Shared Resource > Schemas Page > Configuration Tab for Data Requester activity
Field Description
Name Name of the database that you want to put your table in.
Description Description of the table.
Mode The mode of operation - Request-Reply or Remote Procedure Call.
Use Custom Operations Enable creating custom schema for your operations.

Displayed only when the mode is RPC.

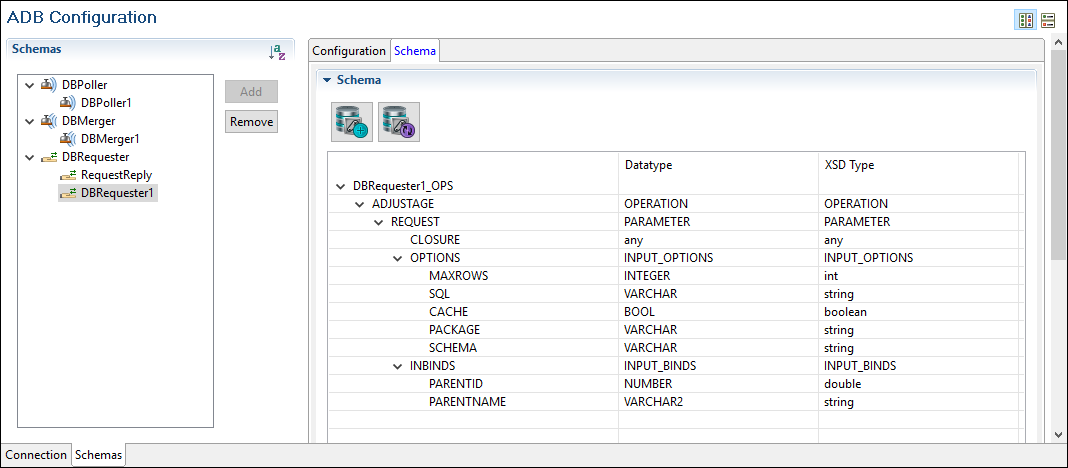

The Schema tab is displayed for both - the Request Reply and RPC modes. However, the Add Operation button is enabled only when the mode is RPC and a custom operation is selected. The Refresh button is enabled only when the mode is RPC, a custom operation is selected, and the operation is added by using the Add Operation button. The Schema tab contains the following UI options:

Shared Resource > Schemas Page > Schema Tab for Data Requester activity
Icon/Option Description
Add a stored procedure.
Reflect the changes made in the stored procedures added earlier and displays a newly added procedure.
