Configuring a Process

After creating a project, an empty process is created. You can add activities to the empty process to complete a task.

Prerequisites

Ensure that you have created an empty process when creating a project. See Creating a Project for more information.

Procedure

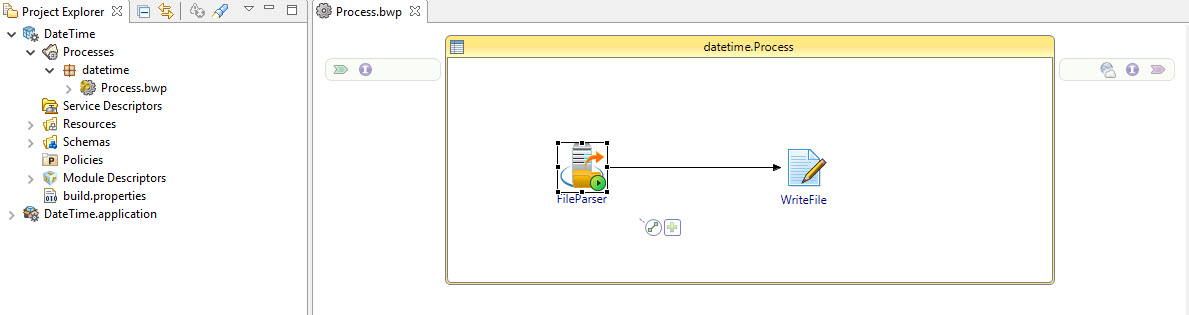

  1. In the Project Explorer view, click the created project and open the empty process from the Processes folder
  2. Select activities from the palette view and drop them in the Process editor.
    For example, select and drop the Log activity from the General Activities palette, and the FileParser activity from the Files for Unix and Windows Palette library.
  3. Click an activity in the Process editor and drag the icon to create a transition between the added activities.
  4. Configure the added FileParser activities, as described in FileParser Activity.
  5. Click File > Save to save the process.
