Plug-in Overview

ActiveMatrix BusinessWorks™ Plug-in for MDM provides a way for external applications to connect to the MDM system.

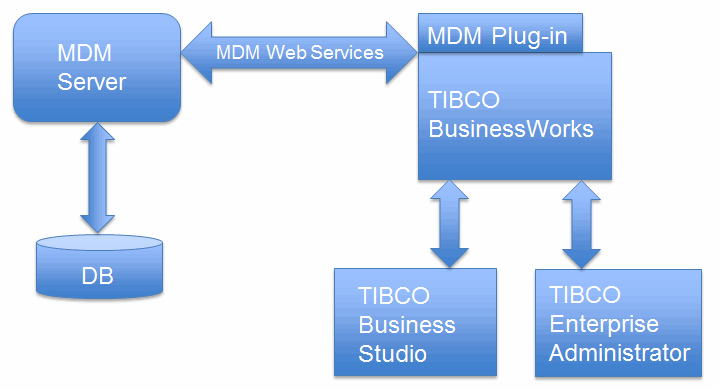

The following figure shows how the plug-in works with other products:

  • TIBCO ActiveMatrix BusinessWorks™ is an easy-to-use integration product suite for enterprise, web, and mobile applications.
  • TIBCO® Enterprise Administrator provides a centralized administrative interface to manage and monitor the plug-in applications deployed in an enterprise.
  • TIBCO MDM is an enterprise application that allows you to ensure that your master data is consistent, complete, and accurate throughout your organization, enterprise systems, and partners. It provides a comprehensive approach to manage and synchronize master data within your organization. See TIBCO MDM documentation at https://docs.tibco.com/.
  • TIBCO ActiveMatrix BusinessWorks™ Plug-in for MDM plugs into ActiveMatrix BusinessWorks™, which bridges ActiveMatrix BusinessWorks™ with TIBCO MDM.

ActiveMatrix BusinessWorks™ supports plug-ins that extend the palette functionality. After installing the plug-in, an MDM Palette and an MDM Shared Resource become available in TIBCO Business Studio™. You can add the activities to the business processes you are designing, and integrate them into the process flow. At runtime, the plug-in activities are executed as part of the ActiveMatrix BusinessWorks™ process execution.

By adding the plug-in activities to your business process, you can:
  • Add, modify, item correct, query, delete, and search records. You can do CRUD operations on records and conduct index entity fuzzy queries with these activities.
  • Upload record data to the data source, and import records to repositories.
  • Query, reassign, approve, reject, and close work items generated by the TIBCO MDM server.
  • Get event information for a specified event ID, and wait for an event to complete.
