Testing a Process

After configuring a process, you can test the process to check whether the process completes your task.

1. In the toolbar, click Run > Debug Configurations, or click Debug > Debug Configurations.
2. Click BusinessWorks Application > BWApplication in the left panel of the opened dialog. By default, all applications in the current workspace are selected in the Applications tab. Ensure that only the application you want to debug is selected in the Applications tab in the right panel.
3. Click Debug to test the process in the selected application.

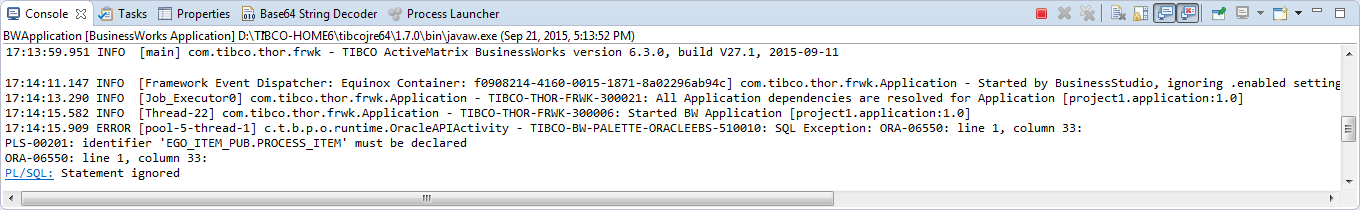

   TIBCO Business Studio switches to the Debug perspective. The debug information is displayed in the Console view, as shown in the following figure.



4. In the Debug tab in the upper-left corner, expand the running process, and click an activity.
5. In the upper-right corner, click the Job Data tab, and then click the Output tab to check the activity output.

   The following figure shows a sample of the activity output:
