Creating and Utilizing an Oracle Tuxedo Schema Shared Resource

After creating a project, you can add an Oracle Tuxedo Schema shared resource to generate XSD schemas for Oracle Tuxedo services in the Oracle Tuxedo system.

Prerequisites

The Oracle Tuxedo Schema shared resource is available at the Resources level. Ensure that you have created a project. See Creating a Project for details.

Procedure

  1. In the Project Explorer view, expand the created project.
  2. Right-click the Resources folder, then click New > Oracle Tuxedo Schema.
    The Oracle Tuxedo Schema Configuration wizard opens.

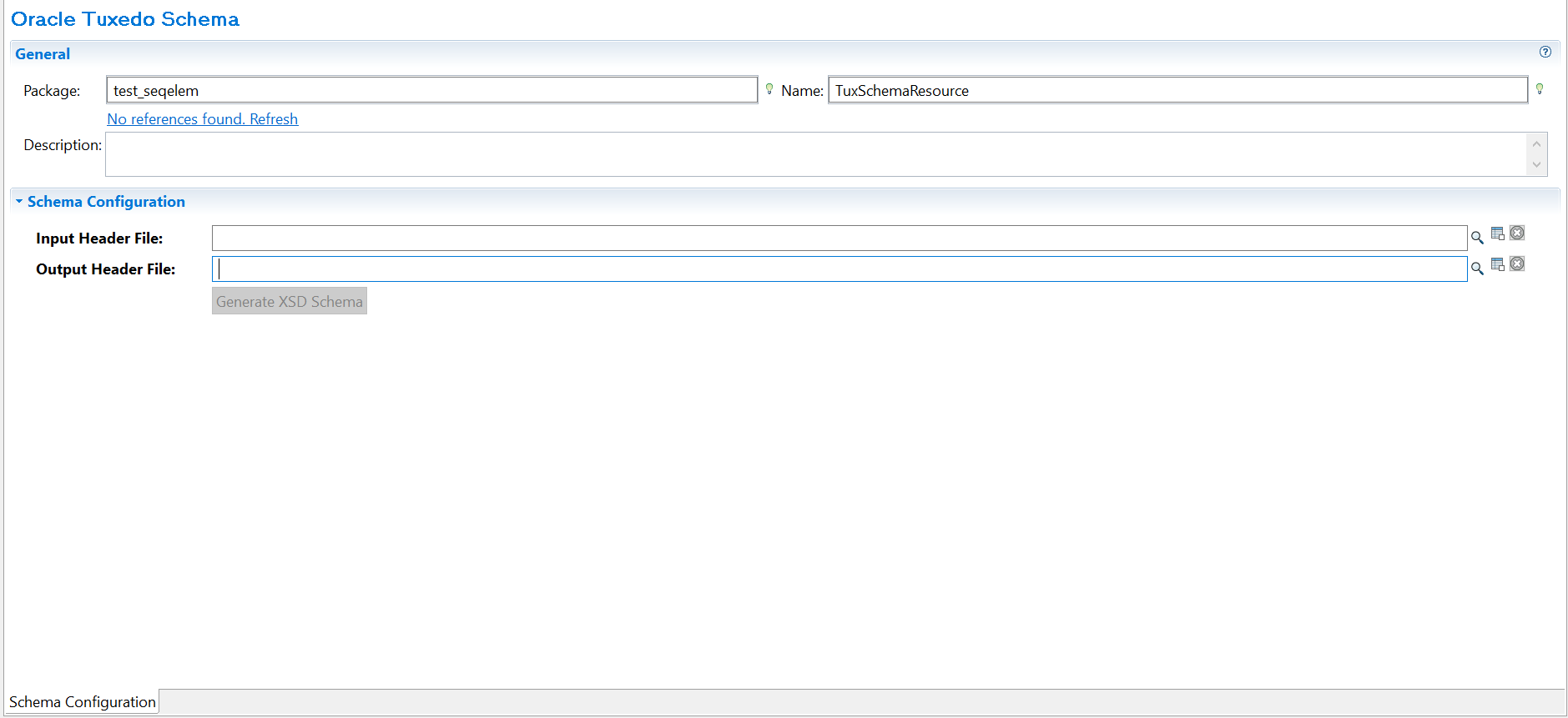

  3. In the Oracle Tuxedo Schema Configuration dialog, package name, and resource name of the Oracle Tuxedo Schema are provided by default. If you do not want to use the default configurations, change them accordingly and click Finish to create the Oracle Tuxedo Schema shared resource.



  4. Click to locate an Input Header File in your computer.
  5. Select the appropriate header file. Click OK.
  6. Click to locate an Output Header File in your computer.
  7. Select the appropriate header file. Click OK.
  8. The Generate XSD Schema button is enabled only when you specify input and output header files in their respective fields. Click the Generate XSD Schema button.
    A pop-up will appear stating that the XSD schema files have been generated.
  9. Click OK.
