Get
Get retrieves items from TIBCO Fulfillment Subscriber Inventory by a primary key. The amount of information included in the returned data can be controlled by setting flags on the request message. For performance reasons, it is best practice to retrieve as little information as required as part of a Get operation invocation.
Activity | Impact | Description |
---|---|---|
Retrieving multiple entities in a single operation call | Low | The more entities that are retrieved in a single call, the longer the operation will take to complete. Retrieving multiple items in a single call still takes less time than retrieving each item individually using separate operation calls. |
Including party name | High | Including party names requires a query against the database. |
Including parent party | High | Including parent parties requires a query against the database. |
Including parent party name | Low | Including parent party is only relevant if the parent parties are included. Setting this flag has a low incremental impact over the high impact of including the parent party because the names are retrieved at the same time during the same query. |
Including characteristics or characteristic names | Low | Including characteristics or characteristic names increases the size of the response message. |
Including orders, orderIds, or orderRefs | Low | Including orders, order IDs, or orderRefs increases the size of the response message. |
Including relationships or relationship types | Low | Including relationships. relationship types, or reverse relationships increases the size of the response message. |
Including reverse relationships | High | Including reverse relationships requires a query against the database. |
Returning deleted entities | Low | Returning deleted entities increases the number of records in the response message. |
Locking entities | Medium | Locking any entity on a request requires a multi-step process rather than a simple data retrieve. This causes the operation to take longer to return. |

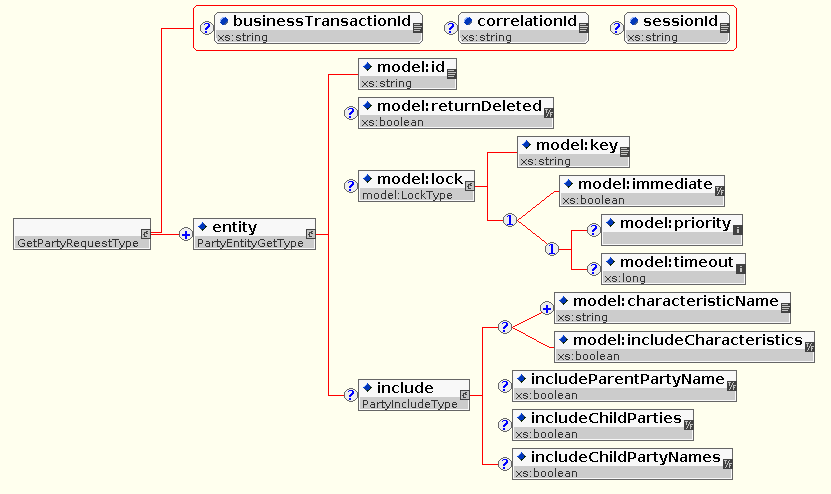

Get Request
This message is sent by the client application to the TIBCO Fulfillment Subscriber Inventory system.
Element | Type | Cardinality | Description |
---|---|---|---|
entity | ItemEntityGetType
or PartyEntityGettype |
Mandatory | This is the entity definition retrieved. |
entity/Id | String | Mandatory | This is the unique identifier for the item to retrieve. |
entity/returnDeleted | Boolean | Optional |
If this element is true and an item has been logically deleted, it will be returned. If this element is false or omitted and an item has been logically deleted, it will not be returned. If an item has been physically deleted using the Purge operation, it will never be returned. |
entity/lock | LockType | Optional | This is the lock request type. If this is omitted, no lock attempt will occur. |
entity/lock/key | String | Mandatory | This is the key for the lock. |
entity/lock/immediate | Boolean | Choice | This indicates an immediate lock request. |
entity/lock/priority | int | Choice / Optional default=5 (from 1 to 10) | This is the priority of the lock request. |
entity/lock/timeout | int | Choice / Optional default=no timeout | This is the timeout of the lock request in seconds. |
entity/include | ItemIncludeType
or PartyIncludeType |
Optional | This is the include type and the definition of what to include on the response. |
entity/characteristicName | String | Choice | This is the list of characteristics to return. |
entity/includeCharacteristics | Boolean | Choice | This indicates if all or no characteristics should be returned. |
includeParentPartyName | Boolean | Optional | This indicates if the parent party name should be searched. |
Element | Type | Cardinality | Description |
---|---|---|---|
include/includePartyName | Boolean | Optional | This indicates if the party name should be returned. |
include/includeParentParty | Boolean | Optional | This indicates if the parent party should be returned. |
include/includeOrders | Boolean | Optional | This indicates if all or no orders should be returned. |
include/orderId | String | Choice | This is to search for specific order IDs. |
include/orderRef | String | Choice | This is to search for specific order references. |
includeRelationships | Boolean | Choice | This indicates if all or no characteristics should be returned. |
relationshipType | String | Choice | This indicates the array of relationship types to return. |
includeReverseRelationships | Boolean | Optional | This indicates if the reverse relationships should be returned. |

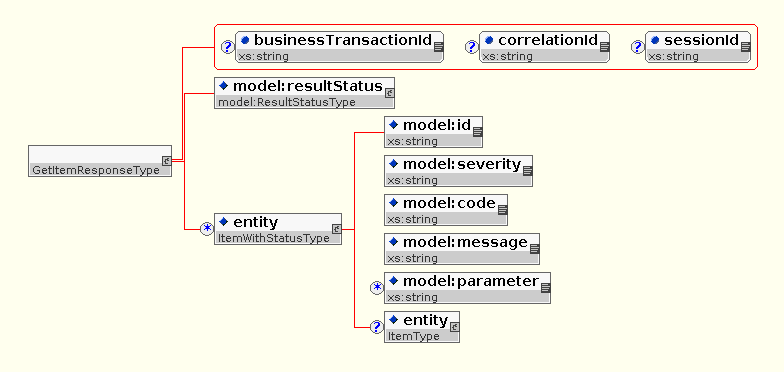

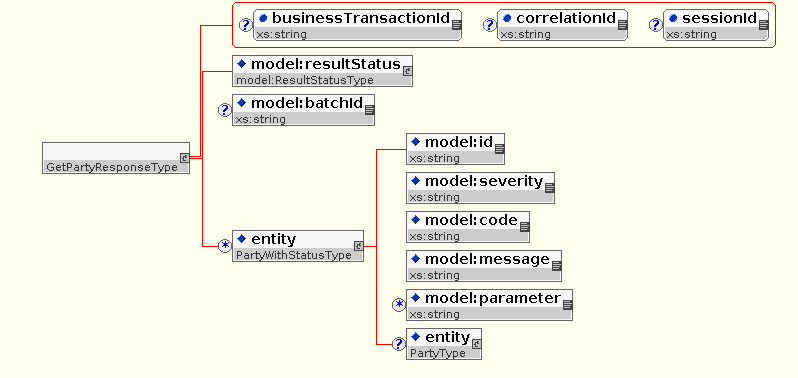

Get Response
This message is sent by the TIBCO Fulfillment Subscriber Inventory system to the requesting application to return the results of the operation invocation.
Element | Type | Cardinality | Description |
---|---|---|---|
resultStatus | ResultStatusType | Mandatory | This is the result status type and the operation invocation status. |
entity | ItemWithStatusType
or PartyWithStatusType |
Mandatory | This is the entity type returning the individual result status.
If none of the entities could be retrieved due to a system error, this set is empty. If any of the entities could be retrieved, there is one entity for each requested item. The returned entity order is the same as the original requested item order. |
entity/Id | String | Optional | This is the unique identifier for the retrieved entity. |
entity/entity | ItemType
or PartyType |
Optional | This is the entity type of the retrieved entity. If the entity was not found, this will be omitted. |
entity/entity/ref | entity/entity/ref | String | This is the reference of the retrieved entity. |
entity/entity/name | String | Optional | This is the name of the retrieved entity. |
entity/entity/type | String | Optional | This is the type of the retrieved entity. |
entity/entity/subType | String | Optional | This the sub type of the retrieved entity. |
entity/entity/status | String | Optional | This is the status of the retrieved entity. |
entity/entity/id | String | Optional | This is the unique identifier for the retrieved entity. |
entity/entity/characteristic | CharacteristicType | Optional | This defines the characteristics of the retrieved entity, such as ID, name, and value. |
entity/entity/ownedBy | String | Optional | This defines who owns the retrieved entity. |
entity/entity/createdBy | String | Optional | This defines who created the retrieved entity. |
entity/entity/createdDate | dateTime | Optional | This is the date the retrieved entity was created. |
entity/entity/lastUpdatedBy | String | Optional | This defines who last updated the retrieved entity. |
entity/entity/lastUpdatedDate | dateTime | Optional | This is the date the retrieved entity was last updated. |
entity/entity/version | Long | Optional | This is the version of the retrieved entity. |
entity/entity/batchId | String | Optional | This is the batch ID associated with the retrieved entity. |
entity/entity/lock | LockInformation | Optional | This is the lock information for the retrieved entity. See the "Lock Information" section in Get Sub Elements for more details on the sub elements of this element. |
entity/entity/deleted | Boolean | Optional | This indicates if the retrieved entity is logically deleted. |
entity/entity/parentParty | PartyReference | Optional | This defines the parent party of the retrieved entity. |
Element | Type | Cardinality | Description |
---|---|---|---|
entity/entity/productId | String | Optional | This is the product ID associated with the retrieved item. |
entity/entity/productVersion | String | Optional | This is the product version associated with the retrieved item. |
entity/entity/party | PartyReference | Optional | This is the party reference associated with the retrieved item. |
entity/entity/order | OrderType | Optional | This is the order type associated with the retrieved item. See the "Get Order" section in Get Sub Elements for more details on the sub elements of this element. |
entity/entity/relationship | RetrievedRelationshipType | Optional | This is the relationship type associated with the retrieved item. |
entity/entity/startDate | dateTime | Optional | This is the start date of the retrieved item. |
entity/entity/endDate | dateTime | Optional | This is the end type of the retrieved item. |
entity/entity/parentParty | PartyReference | Optional | This is the parent party reference associated with the retrieved item. |
relationship/reverse | Boolean | Optional | Set this to true to indicate a reverse relationship. It is set to false by default (meaning forward relationship). This is used to differentiate forward and reverse relationships when relationships are fetched. Reverse relationship/id will contain the originator item. |
Element | Type | Cardinality | Description |
---|---|---|---|
entity/entity/childParty | PartyReference | Optional | This is the child party reference associated with the retrieved party. |
parentParty/id | String | Optional | This is the parent party ID associated with the retrieved party. |
parentParty/name | String | Optional | This is the parent party name associated with the retrieved party. |
childParty/id | String | Optional | This is the child party ID associated with the retrieved party. |
childParty/name | String | Optional | This is the child party name associated with the retrieved party. |
- Get Sub Elements
The following are the sub elements for the get operation.
