Combining Relationship Tab within Another Group

After displaying a relationship as a separate tab it can be further grouped within another attribute group or a combined group.

1. Display the relationship in a separate tab. For more information refer, Displaying Related Records in a Relationship as a Tab.
2. Combine two or more group tabs into single group tab. For more information refer, Combining Two or More Attribute Groups into a Single Tab.
3. Include the relationship tab within a ’Combined Group’ and add the relationship name specified within the group tab.
4. To add the relationship name within a group, change the record UI rendering to show a relationship tab within another group by defining the following XML in $MQ_COMMON_DIR/enterprise_name/htmlprops/recordui-render.xml.

   The sample XML is as follows:

   <recordui>

   <catalog id="123456">

   <relationshipShowAsTab>

   <relationship>

   <name>AccountToAddress</name>

   <tabname>Tab For AccountToAddress</tabname>

   </relationship>

   </relationshipShowAsTab>

   <grouptab>

   <group name="Combined Group">

   <item>Location_Details</item>

   <item>Time_Details</item>

   <item>AccountToAddress</item>

   </group>

   </grouptab>

   </catalog>

   </recordui>

5. Save the XML file.

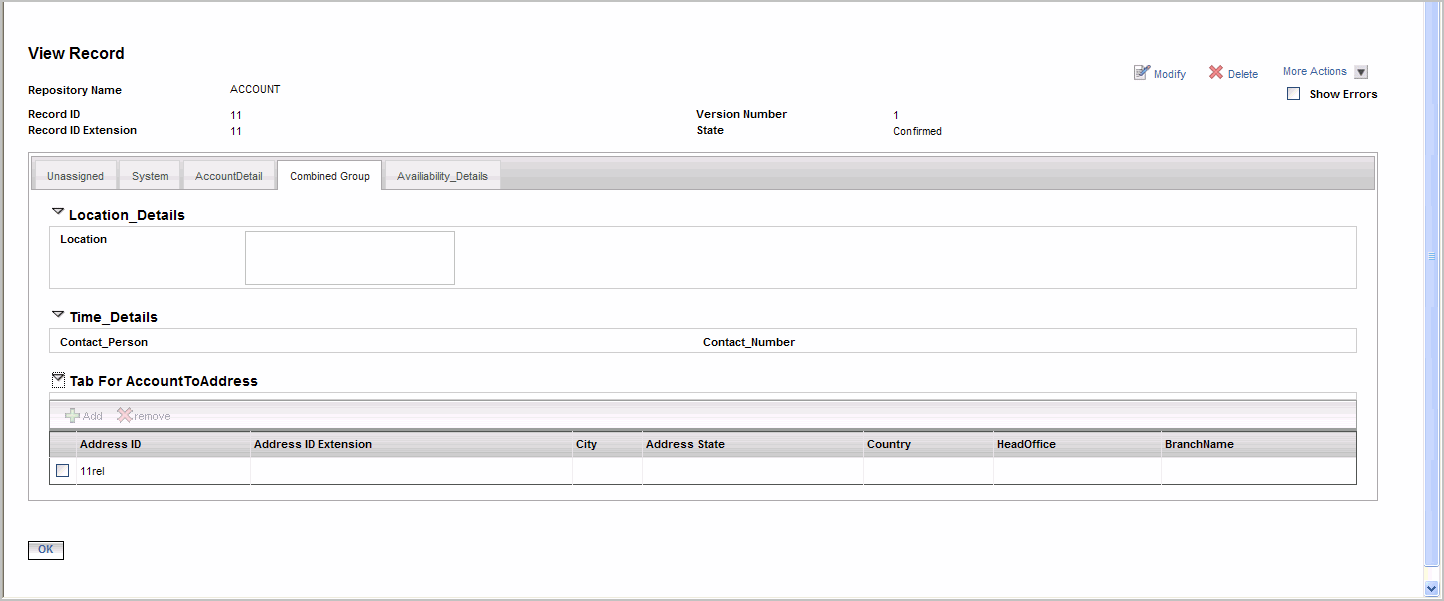

   • The Relationship is displayed as a separate Relationship Tab.

   • The Relationship Tab is combined within another Group.
