Tag Rulebases

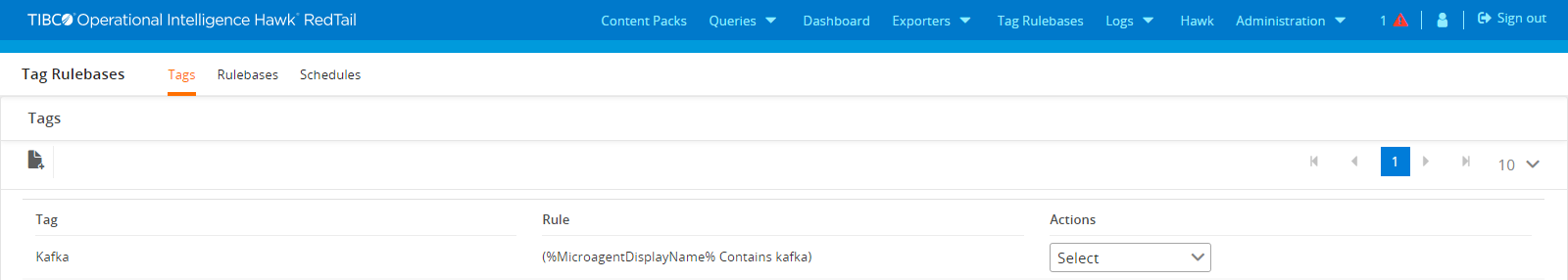

Tags are way to group Microagents. You can create a Microagent group based on the condition provided during the creation of the tag. As shown in the following figure, all the Microagents with display name having kafka as a sub-string will be tagged as Kafka tag. The user can create rules to match Microagents and group them under given tag which will create a tag based rulebase. A tag-based rulebase allows you to create high-level rulebases with tags that can match with microagents so that the rulebase can be automatically deployed to all the relevant Hawk agents in the domain.
Actions
Click Tag Rulebases in TIBCO OI Hawk RedTail - Container Edition UI to open the Tag Rulebases page. The following actions are available on the Tag Rulebases tab:
|
•
|
Add new tag - Click the Add icon ( ) to create a new schedule for the Hawk agent. For details, see Creating a Tag. |
|
•
|
Edit a tag - Go to the Actions column and then select the Edit option to edit the parameters of the existing tag. For details, see Editing a Tag. |
|
•
|
Delete a tag - Go to the Actions column and then select the Delete option to delete an existing tag. For details, see Deleting a tag. |
The following actions are available on the Rulebases tab for Tag Rulebases:
|
•
|
Create a new rulebase - Click the Add icon () to create a new rulebase for the Hawk agent. For details, see Adding a Rulebase. |
|
•
|
Import a rulebase - Click the Import icon ( ) to import an existing rulebase (the .json file) to the Hawk agent. For details, see Importing a Rulebase. |
|
•
|
Export a rulebase - Click the Export icon ( ) or go to the Actions column and select the Export option to export an existing rulebase (the .json file) to the Hawk agent. For details, see Exporting a Rulebase. |
|
•
|
Edit a rulebase - Go to the Actions column and then select the Edit option to edit the information of an existing rulebase. For details, see Editing a Rulebase. |
|
•
|
Delete a rulebase - Go to the Actions column and then select the Delete option to delete an existing rulebase. |
The following actions are available on the Schedules tab for Tag Rulebases:
|
•
|
Add new schedule - Click the Add icon () to create a new schedule for the Hawk agent. For details, see Adding a Schedule. |
|
•
|
Delete schedule - Click the delete icon ( ) to delete the schedule. For details, see Deleting a Schedule. |
|
•
|
Add inclusion period - Click the Add icon () on the inclusion period, for the selected schedule, to specify the time period when you would like the system to apply the rule or rulebases depending on whether the conditions are met. You can define the following parameters in the inclusion period of a schedule: |
For details, see Adding Inclusion Periods to a Schedule.
|
•
|
Add exclusion period - Click the Add icon () on the exclusion period for the selected schedule to specify the time period when you would like the system to ignore the rule or rulebases. For details, see Adding Exclusion Period to a Schedule. |
