Using the ZGY Queue Manager

The ZGY Queue Manager tool can be used to monitor and manage the queue of live-links that have been submitted for realization using the Live-link Manager tool. See the Live-link Manager Overview section of this guide for an overview of the live-link ZGY realization workflow.

The ZGY Queue Manager can be opened by clicking on the ZGY Queue Manager iconin the Live-link Manager tool bar or in the Windows task tray. The task tray icon is provided so that the queue manager can be opened when Petrel is not running.

The ZGY Queue Manager shows all of the pending live-links and the currently running live-link realization. Entries disappear from the list when the running live-link's ZGY file has been generated. The next pending live-link will then change to a running status.

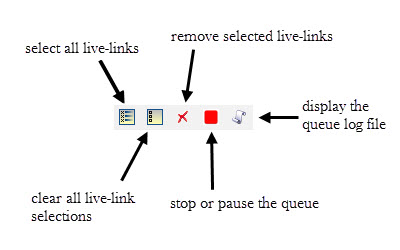

ZGY Queue Manager Tool Bar

The queue manager provides a tool bar that can be used to manage the queue.

Select All

The select all tool bar button selects all of the live-links listed in the queue manager.

Clear Selections

De-selects all selected live-links.

Remove

Removes all selected live-links that have a state of Pending. A confirmation window is displayed if the Running live-link is selected when the remove button is pressed to make sure you want to abort the realization that is currently underway. Aborting the running live-link will remove the partially written ZGY file.

Stop

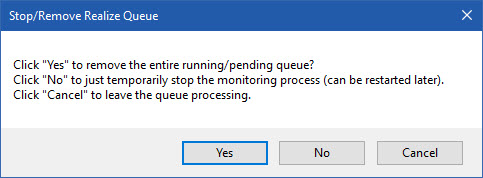

Clicking on the stop button displays a window asking if you want to clear out the entire queue or if you just want to temporarily pause the queue.

Click on the Yes button to remove all of the queue entries and abort the currently running live-link realization. Click on the No button to leave the entries in place and suspend the queue processing after the currently running live-link has completed. Click on the Cancel button to dismiss the prompt and continue processing the queue.

Display Log File

Opens the queue's log file.
