tibrvMsgData_GetSize()

Function

Declaration

tibrv_status tibrvMsgData_GetSize(
    char**       buffer,
    tibrv_u32*    size);

Purpose

Get the data size from a wire buffer for a decoder.

Remarks

This layer 1 function helps decoders extract data from a message’s wire buffer. It does only part of the work that tibrvMsgData_GetBytes() does (see tibrvMsgData_GetSize):

Procedure

1.

Read the size information from the wire buffer (starting at the position *buffer) and store it in the size parameter.

2.

Advance *buffer to point to the end of the size information, which is the start of the actual data.

3.

Return.

After tibrvMsgData_GetSize() returns, the decoder can obtain the data by copying *size bytes from the location *buffer. We recommend using the more complete function tibrvMsgData_GetBytes(); this function gives programmers finer control over pointer advancement (along with the responsibility to advance that pointer appropriately).

Parameter	Description
buffer	The decoder supplies the address of the wire buffer within the message. The function advances *buffer to point to the location at the end of the size (which is the beginning of the data).
size	The decoder supplies a location. This function stores the size of the actual data in that location.

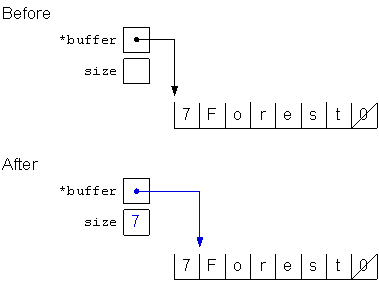

Figure 200: tibrvMsgData_GetSize

See Also

tibrvMsgData_Decoder

tibrvMsgData_GetBytes()
