tibrvMsgData_SetSize()

Function

Declaration

tibrv_status tibrvMsgData_SetSize(
    char**       buffer,
    tibrv_u32    size);

Purpose

Write the size of data into a wire buffer for an encoder.

Remarks

This layer 1 function helps encoders write size information to a message’s wire buffer. It does only part of the work that tibrvMsgData_CopyBytes() does (see tibrvMsgData_SetSize):

Procedure

1.

Write the size information into the wire buffer, starting at the position *buffer.

2.

Advance *buffer to point to the end of the size information, which will become the start of the actual data.

3.

Return.

After tibrvMsgData_SetSize() returns, the encoder can continue by writing the data starting at the (advanced) position *buffer. We recommend using the more complete function tibrvMsgData_CopyBytes() to write the size and data with one call; when finer control is required, programmers can use this function instead, with corresponding responsibility.

When using this function, the encoder must first use tibrvMsgData_ByteSize() to measure the wire size from the data length.

Parameter	Description
buffer	The encoder supplies the address of a location within the message’s wire buffer. This function writes the size into the destination message, and advances this buffer pointer.
size	Size to copy into the wire buffer.

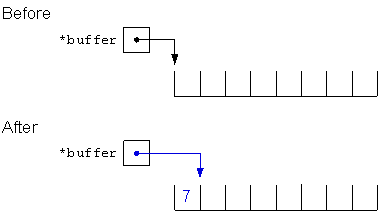

Figure 202: tibrvMsgData_SetSize

See Also

tibrvMsgData_ByteSize()

tibrvMsgData_CopyBytes()

tibrvMsgData_Encoder
