Local Network Interfaces Configuration
This page lets you configure local networks for a routing table entry.
To display this page, click the number of local networks in a row of the Routers page.
For background information, see Local Network.
|
Note |
This page is not the same as the page described in Local Networks. |

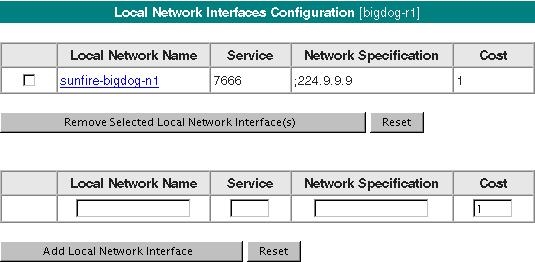

Figure 102: rvrd Local Network Interfaces Configuration Page
|
Item |
Description |
|
existing local networks |
The upper table lists local networks. Each row represents one local network. |
|
Local Network Name |
The name of a local network. Local network names must be globally unique. To configure subject gating for a local network, click its name in the table of existing local networks. For more information, see Local Network. |
|
Service |
The UDP service for communication on a local network. Programs within the local network communicate using this service. For more information, see Specifying the UDP Service. |
|
Network Specification |
The network specification for a local network. For more information, see Constructing the Network Parameter. |
|
Cost |
Path cost for routing between a local network and the routing daemon. For more information, see Load Balancing. |
|
Add Local Network Interface |
To add a new local network, type the specifications and click this button. |
