About This Application

The Cluster Monitor application is a ready-to-run and configurable StreamBase application that can be used to monitor the performance of clusters and nodes in a StreamBase Runtime fabric. The application consists of a StreamBase monitoring EventFlow fragment and a Live Datamart server fragment. The application:

Dynamically discovers cluster elements (nodes, JVMs).
Dynamically discovers changes to the cluster population.
Provides StreamBase performance data for EventFlow and LiveView JVMs.
Provides StreamBase Runtime performance data for nodes.
Publishes results into a set of LiveView tables.
Provides a set of LiveView Web cards that present a customizable view of the data.

Using the default configuration, the Live Datamart server automatically enables LiveView Web as the client to display cluster monitoring data.

Running the Cluster Monitor

To run the Cluster Monitor application, enter a node name to install to. For example, monitor.your cluster name.
- On Windows, you must use a StreamBase Command Prompt.
- On macOS and Linux, you must use a shell with a StreamBase-ready environment, as described in Configure Shells for StreamBase.
The epadmin command line below wraps to the next two lines for clarity but must be entered as one command:
```
epadmin install node nodename=monitor.clustername
  substitutions="NODE_NAME=monitor.clustername"
  application=$TIBCO_EP_HOME/distrib/tibco/sb/applications/cluster-monitor.zip
```

Start the node. Run:

epadmin servicename=monitor.clustername start node

Optionally, configure the discovery port for the cluster that you want to monitor by setting the discoveryPort option in the servicediscoveryadapter configuration file. The default is discoveryPort=54321.

Viewing Cluster Statistics in LiveView Web

Once the node is started and the Cluster Monitor application is running, open a browser to view cluster data for the started node (at least one node must be installed to view any meaningful data in LiveView Web).

Enter: http://localhost:10080/lvweb. The Cluster Monitor application uses the default LiveView Web port, 10080. If 10080 is already in use, enter a different port number per local practice.

LiveView Web displays cluster statistics using the following set of LiveView Web cards:

Services

Percentage of Shared Memory in Use

Host Machine CPU Utilization

Node Transaction Rate and Average Latency

EventFlow/LiveView Amount of Heap Memory In Use

EventFlow/LiveView Total Queue Depth

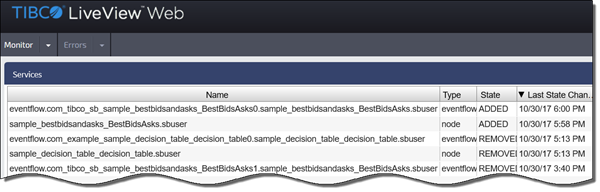

Look for output similar to the following in LiveView Web, depending on the LiveView Web card selected:

Configuration Options

The following monitoring behavior parameters are configurable:

Service discovery
Credentials for statistics collection
Administration commands
Table naming
Table aging
LiveView Datamart listener port

You can change the Cluster Monitor application's configuration:

At node or application installation time by replacing the default node.conf configuration file, using the nodedeploy name-value pair in the node HOCON configuration file. The node.conf file is located in the cluster-monitor.zip file.
While the Cluster Monitor is running, by loading and activating a service discovery adapter configuration, a cluster monitor configuration or both.

After activating a new configuration, restart the Cluster Monitor application with the following command:

epadmin servicename=MONITOR_NODE_NAME restart container engine=cluster-monitor

Note

Replace MONITOR_NODE_NAME with the name of the node where the Cluster Monitor application is installed.

Tables

The Cluster Monitor contains a Services table showing services that were discovered, including their current state. All other tables are dynamically created and contain the same first three columns:

service: The service name.
id: A generated per-row unique identifier. This is the primary index.
time: A time stamp for the row.

The following statistics tables are configured by default:

StreamBaseInfo
NodeInfo

Using epadmin Command Tables

Any epadmin target command that generates output may be used. For example, the pre-configured NodeInfo table is equivalent to the following epadmin command:

epadmin servicename=monitor.sb10 display history seconds=1

By default, the generated table name for epadmin commands is t_COMMAND_TARGET. For the command shown above, this becomes t_display_history. This may be changed via configuration.

The first three columns are common to both epadmin command tables and the StreamBaseInfo table.

The remaining columns consist of the epadmin command output. The output column names are discovered and converted to meet Live Datamart column name requirements:

A leading c_ prefix is inserted.
Non alpha-numeric characters are converted to underscores.
Multiple underscore sequences are converted to single underscores.

For example, the column name: Shared Memory Size (bytes), is converted to: c_Shared_Memory_Size_bytessec.

Table Aging

Two configurable parameters control the automatic removal of rows from the monitor's tables.

rowAgeLimitSeconds: Rows older than this limit will be periodically removed.
rowCheckIntervalSeconds: How often tables are checked for row removal.

Statistics Collection Authentication

The Cluster Monitor application attempts to connect to each discovered service, authenticating each using the configured credentials. The epadmin commands use the administrationAuthentication section of the ClusterMonitor configuration file, as shown in Runtime ClusterMonitor Configuration. By default, no credentials are configured. The application is only able to monitor services running on the local node, started by the same user who installed the Cluster Monitor.

The configuration supports a single set of credentials for epadmin commands, and a single set of credentials for EventFlow and LiveView services. For simplicity, TIBCO recommends configuring a common login credential throughout the target cluster.

To configure EventFlow and LiveView services information, use the EventFlow section of the ClusterMonitor configuration.
