Included schema common.xsd
Properties
attribute form default unqualified
element form default qualified

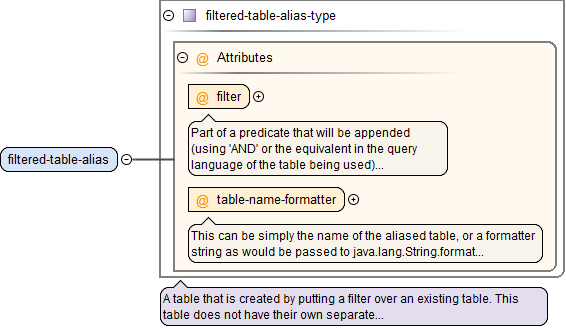

Element filtered-table-aliases-type / filtered-table-alias
Diagram
Diagram common_xsd.tmp#filtered-table-alias-type_filter common_xsd.tmp#filtered-table-alias-type_table-name-formatter common_xsd.tmp#filtered-table-alias-type
Type filtered-table-alias-type
Properties
content complex
maxOccurs unbounded
Attributes
QName Type Use Annotation
filter xs:string required
Part of a predicate that will be appended (using 'AND' or the equivalent in the query language of the table being used)
to all queries coming to the aliased table.  This predicate should be in the query language of the base table.
table-name-formatter xs:string required
This can be simply the name of the aliased table, or a formatter string as would be passed to java.lang.String.format method,
where %s will be replaced with the name of the base table.

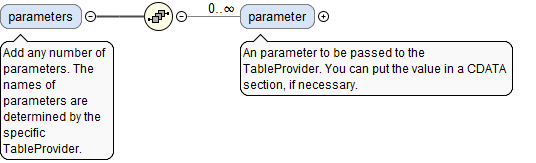

Element external-server-connection-type / parameters
Annotations

Add any number of parameters. The names of parameters are determined by the specific TableProvider.
Diagram
Diagram common_xsd.tmp#external-server-connection-type_external-server-connection-type_parameters_parameter
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children parameter
Instance

<parameters>
  <parameter key="">{0,unbounded}</parameter>
</parameters>
Element external-server-connection-type / parameters / parameter
Annotations

An parameter to be passed to the TableProvider. You can put the value in a CDATA section, if necessary.
Diagram
Diagram common_xsd.tmp#parameter-type_key common_xsd.tmp#parameter-type
Type parameter-type
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
key optional
The key that identifies the parameter. This is specific to the class receiving this parameter. The key is case-sensitive.

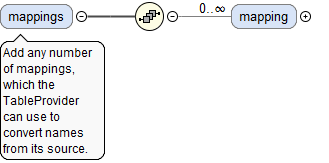

Element external-server-connection-type / mappings
Annotations

Add any number of mappings, which the TableProvider can use to convert names from its source.
Diagram
Diagram common_xsd.tmp#external-server-connection-type_external-server-connection-type_mappings_mapping
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children mapping
Instance

<mappings>
  <mapping formatter="" selector="">{0,unbounded}</mapping>
</mappings>
Element external-server-connection-type / mappings / mapping
Diagram
Diagram common_xsd.tmp#mapping-type_selector common_xsd.tmp#mapping-type_formatter common_xsd.tmp#mapping-type_filtered-table-aliases common_xsd.tmp#mapping-type
Type mapping-type
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children filtered-table-aliases
Instance

<mapping formatter="" selector="">
  <filtered-table-aliases>{0,1}</filtered-table-aliases>
</mapping>
Attributes
QName Type Use Annotation
formatter xs:string optional
Formatter string for java.util.String.format that will be used to create the replacement name from the selection in the selector.
selector xs:string required
Regular expression that will select the names to pass through. To use only part of the name in the formatter, enclose in parentheses the portion of the regex that selects that portion.

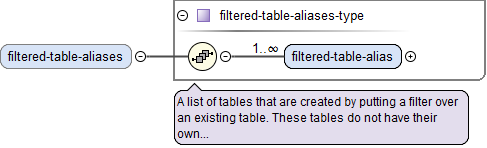

Element mapping-type / filtered-table-aliases
Diagram
Diagram common_xsd.tmp#filtered-table-aliases-type_filtered-table-alias common_xsd.tmp#filtered-table-aliases-type
Type filtered-table-aliases-type
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children filtered-table-alias
Instance

<filtered-table-aliases>
  <filtered-table-alias filter="" table-name-formatter="">{1,unbounded}</filtered-table-alias>
</filtered-table-aliases>

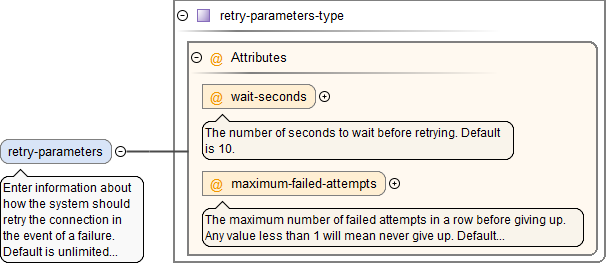

Element external-server-connection-type / retry-parameters
Annotations

Enter information about how the system should retry the connection in the event of a failure. Default is unlimited retries every 120 seconds.
Diagram
Diagram common_xsd.tmp#retry-parameters-type_wait-seconds common_xsd.tmp#retry-parameters-type_maximum-failed-attempts common_xsd.tmp#retry-parameters-type
Type retry-parameters-type
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use Annotation
maximum-failed-attempts xs:int 0 optional
The maximum number of failed attempts in a row before giving up. Any value less than 1 will mean never give up. Default is 0.
wait-seconds xs:int 10 optional
The number of seconds to wait before retrying. Default is 10.
Element external-connection-wrapper
Diagram
Diagram common_xsd.tmp#external-connection-wrapper_connection
Properties
content complex
Model
Children connection
Instance

<external-connection-wrapper>
  <connection id="" table-provider-class="" type="">{1,1}</connection>
</external-connection-wrapper>

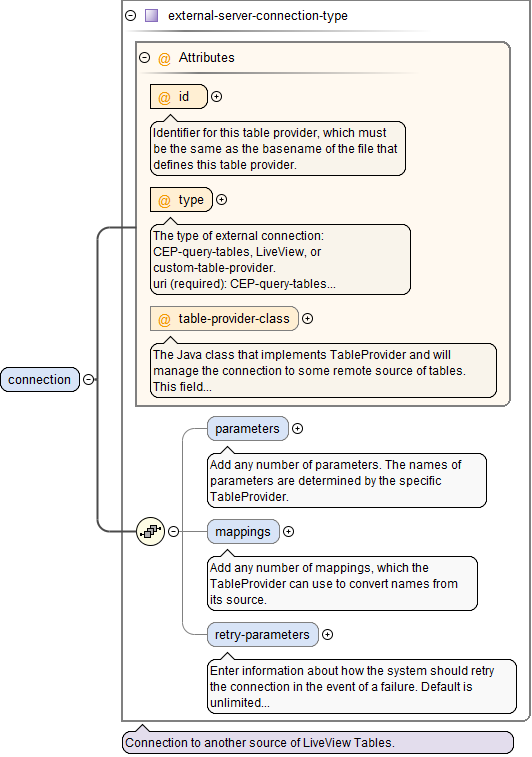

Element external-connection-wrapper / connection
Diagram
Diagram common_xsd.tmp#external-server-connection-type_id common_xsd.tmp#external-server-connection-type_type common_xsd.tmp#external-server-connection-type_table-provider-class common_xsd.tmp#external-server-connection-type_parameters common_xsd.tmp#external-server-connection-type_mappings common_xsd.tmp#external-server-connection-type_retry-parameters common_xsd.tmp#external-server-connection-type
Type external-server-connection-type
Properties
content complex
Model
Children mappings, parameters, retry-parameters
Instance

<connection id="" table-provider-class="" type="">
  <parameters>{0,1}</parameters>
  <mappings>{0,1}</mappings>
  <retry-parameters maximum-failed-attempts="0" wait-seconds="10">{0,1}</retry-parameters>
</connection>
Attributes
QName Type Use Annotation
id xs:string required
Identifier for this table provider, which must be the same as the basename of the file that defines this table provider.
table-provider-class xs:string optional
The Java class that implements TableProvider and will manage the connection to some remote source of tables. This field is required if you have specified a type of custom-table-provider.
type external-connection-type-type required
The type of external connection: CEP-query-tables, LiveView, or custom-table-provider.

uri (required): CEP-query-tables expects the URI parameter, stating the URI of the server. Sample:
sb://com.streambase.liveview:10000.

uri (required): LiveView expects the same URI parameter, but with the LiveView port. Sample:
lv://com.streambase.liveview:10080

username: The username for connecting to the CEP server that the external LiveView server is based on.

password (optional): The password for connecting to the CEP server that the external LiveView server is based on.

liveview.streambase.connection.pool.max.connections
(optional): default = 200

liveview.streambase.connection.pool.queries.per.connections
(optional): default = 10000

liveview.streambase.connection.pool.publishers.per.connections
(optional): default = 10000

liveview.streambase.connection.pool.connection.xmlrpc.timeout.millis
(optional): default = 5000
Complex Type filtered-table-aliases-type
Annotations

A list of tables that are created by putting a filter over an existing table.
These tables do not have their own separate storage, the filter is simply appended to the predicate to a query, and then the augmented query is applied to the original table.
Diagram
Diagram common_xsd.tmp#filtered-table-aliases-type_filtered-table-alias
Used by
Model
Children filtered-table-alias

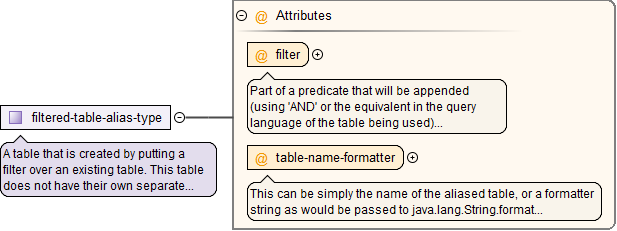

Complex Type filtered-table-alias-type
Annotations

A table that is created by putting a filter over an existing table.
This table does not have their own separate storage, the filter is simply appended to the predicate to a query,
and then the augmented query is applied to the original table.
Diagram
Diagram common_xsd.tmp#filtered-table-alias-type_filter common_xsd.tmp#filtered-table-alias-type_table-name-formatter
Used by
Attributes
QName Type Use Annotation
filter xs:string required
Part of a predicate that will be appended (using 'AND' or the equivalent in the query language of the table being used)
to all queries coming to the aliased table.  This predicate should be in the query language of the base table.
table-name-formatter xs:string required
This can be simply the name of the aliased table, or a formatter string as would be passed to java.lang.String.format method,
where %s will be replaced with the name of the base table.
Complex Type external-server-connection-type
Annotations

Connection to another source of LiveView Tables.
Diagram
Diagram common_xsd.tmp#external-server-connection-type_id common_xsd.tmp#external-server-connection-type_type common_xsd.tmp#external-server-connection-type_table-provider-class common_xsd.tmp#external-server-connection-type_parameters common_xsd.tmp#external-server-connection-type_mappings common_xsd.tmp#external-server-connection-type_retry-parameters
Used by
Model
Children mappings, parameters, retry-parameters
Attributes
QName Type Use Annotation
id xs:string required
Identifier for this table provider, which must be the same as the basename of the file that defines this table provider.
table-provider-class xs:string optional
The Java class that implements TableProvider and will manage the connection to some remote source of tables. This field is required if you have specified a type of custom-table-provider.
type external-connection-type-type required
The type of external connection: CEP-query-tables, LiveView, or custom-table-provider.

uri (required): CEP-query-tables expects the URI parameter, stating the URI of the server. Sample:
sb://com.streambase.liveview:10000.

uri (required): LiveView expects the same URI parameter, but with the LiveView port. Sample:
lv://com.streambase.liveview:10080

username: The username for connecting to the CEP server that the external LiveView server is based on.

password (optional): The password for connecting to the CEP server that the external LiveView server is based on.

liveview.streambase.connection.pool.max.connections
(optional): default = 200

liveview.streambase.connection.pool.queries.per.connections
(optional): default = 10000

liveview.streambase.connection.pool.publishers.per.connections
(optional): default = 10000

liveview.streambase.connection.pool.connection.xmlrpc.timeout.millis
(optional): default = 5000
Complex Type parameter-type
Diagram
Diagram common_xsd.tmp#parameter-type_key
Type extension of xs:string
Used by
Attributes
QName Type Use Annotation
key optional
The key that identifies the parameter. This is specific to the class receiving this parameter. The key is case-sensitive.
Complex Type mapping-type
Diagram
Diagram common_xsd.tmp#mapping-type_selector common_xsd.tmp#mapping-type_formatter common_xsd.tmp#mapping-type_filtered-table-aliases
Used by
Model
Children filtered-table-aliases
Attributes
QName Type Use Annotation
formatter xs:string optional
Formatter string for java.util.String.format that will be used to create the replacement name from the selection in the selector.
selector xs:string required
Regular expression that will select the names to pass through. To use only part of the name in the formatter, enclose in parentheses the portion of the regex that selects that portion.

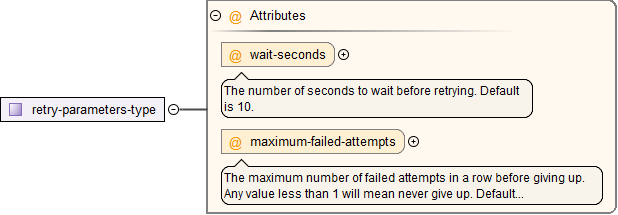

Complex Type retry-parameters-type
Diagram
Diagram common_xsd.tmp#retry-parameters-type_wait-seconds common_xsd.tmp#retry-parameters-type_maximum-failed-attempts
Used by
Attributes
QName Type Default Use Annotation
maximum-failed-attempts xs:int 0 optional
The maximum number of failed attempts in a row before giving up. Any value less than 1 will mean never give up. Default is 0.
wait-seconds xs:int 10 optional
The number of seconds to wait before retrying. Default is 10.
Simple Type external-connection-type-type
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration LiveView
enumeration custom-table-provider
enumeration CEP-query-tables
Used by
Attribute filtered-table-alias-type / @filter
Annotations

Part of a predicate that will be appended (using 'AND' or the equivalent in the query language of the table being used)
to all queries coming to the aliased table.  This predicate should be in the query language of the base table.
Type xs:string
Properties
use required
Used by
Attribute filtered-table-alias-type / @table-name-formatter
Annotations

This can be simply the name of the aliased table, or a formatter string as would be passed to java.lang.String.format method,
where %s will be replaced with the name of the base table.
Type xs:string
Properties
use required
Used by
Attribute parameter-type / @key
Annotations

The key that identifies the parameter. This is specific to the class receiving this parameter. The key is case-sensitive.
Used by
Complex Type parameter-type
Attribute mapping-type / @selector
Annotations

Regular expression that will select the names to pass through. To use only part of the name in the formatter, enclose in parentheses the portion of the regex that selects that portion.
Type xs:string
Properties
use required
Used by
Complex Type mapping-type
Attribute mapping-type / @formatter
Annotations

Formatter string for java.util.String.format that will be used to create the replacement name from the selection in the selector.
Type xs:string
Properties
use optional
Used by
Complex Type mapping-type
Attribute retry-parameters-type / @wait-seconds
Annotations

The number of seconds to wait before retrying. Default is 10.
Type xs:int
Properties
use optional
default 10
Used by
Complex Type retry-parameters-type
Attribute retry-parameters-type / @maximum-failed-attempts
Annotations

The maximum number of failed attempts in a row before giving up. Any value less than 1 will mean never give up. Default is 0.
Type xs:int
Properties
use optional
default 0
Used by
Complex Type retry-parameters-type
Attribute external-server-connection-type / @id
Annotations

Identifier for this table provider, which must be the same as the basename of the file that defines this table provider.
Type xs:string
Properties
use required
Used by
Attribute external-server-connection-type / @type
Annotations

The type of external connection: CEP-query-tables, LiveView, or custom-table-provider.

uri (required): CEP-query-tables expects the URI parameter, stating the URI of the server. Sample:
sb://com.streambase.liveview:10000.

uri (required): LiveView expects the same URI parameter, but with the LiveView port. Sample:
lv://com.streambase.liveview:10080

username: The username for connecting to the CEP server that the external LiveView server is based on.

password (optional): The password for connecting to the CEP server that the external LiveView server is based on.

liveview.streambase.connection.pool.max.connections
(optional): default = 200

liveview.streambase.connection.pool.queries.per.connections
(optional): default = 10000

liveview.streambase.connection.pool.publishers.per.connections
(optional): default = 10000

liveview.streambase.connection.pool.connection.xmlrpc.timeout.millis
(optional): default = 5000
Type external-connection-type-type
Properties
use required
Facets
enumeration LiveView
enumeration custom-table-provider
enumeration CEP-query-tables
Used by
Attribute external-server-connection-type / @table-provider-class
Annotations

The Java class that implements TableProvider and will manage the connection to some remote source of tables. This field is required if you have specified a type of custom-table-provider.
Type xs:string
Properties
content simple
Used by
XML Schema documentation generated by ® XML Editor.
