Analyze container images and their associated licenses
This document describes how to analyze container images for software artifacts and associated licenses.
Base container image
This project uses a Debian ⧉ official container ⧉ image as the common base image layer for building images.
See the license information ⧉ for details on Debian licenses and software package types. See also the Debian notes on the Debian official images ⧉.
As with all container images, the Debian container image can contain other software (such as bash, glibc, zlib, and others from the base distribution, along with any direct or indirect dependencies of the primary software included in the built image) that might be subjected to other licenses.
The following links provide auto-detected license information for the Debian official images:
For example, you can find information about the artifacts of the debian:bullseye-20220328-slim ⧉ official image.
Note: The image user has the responsibility to ensure that any use of the image complies with all relevant licenses for all software contained within.
Additional software packages
Building images often installs additional software packages (fetched from the official distribution software repositories, from other user added repositories, or from specific locations), in addition to the packages already provided by the base image. You can inspect the Dockerfiles to identify these additional packages.
For example, when you read the spotfire-workerhost Dockerfile, you see a list of packages that are installed in the image, as specified in the Dockerfile:
# check=skip=InvalidDefaultArgInFrom;error=true
ARG SPOTFIRE_NODEMANAGER_IMAGE_TAG
ARG SPOTFIRE_NODEMANAGER_VERSION
#
# spotfire-workerhost specific
#
FROM spotfire/spotfire-nodemanager:${SPOTFIRE_NODEMANAGER_IMAGE_TAG}
# Reuses most labels from nodemanager
LABEL org.opencontainers.image.title="spotfire/spotfire-workerhost" \
org.opencontainers.image.description="This container image is an extension of the Spotfire® node manager image with common software dependencies required by Spotfire services using .NET."
# Temporarilty change from spotfire to root in order to install additional packages
USER root
ARG DEBIAN_FRONTEND=noninteractive
RUN apt-get update \
&& apt-get install -y --no-install-recommends \
# From prerequisites-debian12.sh
libnss3 \
libnspr4 \
libatk1.0-0 \
libatk-bridge2.0-0 \
libcups2 \
libdrm2 \
libx11-6 \
libxcomposite1 \
libxdamage1 \
libxext6 \
libxfixes3 \
libxrandr2 \
libgbm1 \
libexpat1 \
libxcb1 \
libxkbcommon0 \
libdbus-1-3 \
libpango-1.0-0 \
libcairo2 \
libasound2 \
libatspi2.0-0 \
xvfb \
xauth \
fonts-liberation \
unixodbc \
# Extra fonts
fonts-arphic-ukai \
fonts-arphic-uming \
fonts-ipafont-gothic \
fonts-ipafont-mincho \
fonts-roboto \
fonts-unfonts-core \
&& apt-get clean all
# .NET Core runtime
ENV DOTNET_CLI_TELEMETRY_OPTOUT=1
RUN apt-get install -y --no-install-recommends wget ca-certificates \
&& wget https://packages.microsoft.com/config/debian/12/packages-microsoft-prod.deb -O packages-microsoft-prod.deb \
&& dpkg -i packages-microsoft-prod.deb \
&& rm packages-microsoft-prod.deb \
&& apt-get update \
&& apt-get install -y --no-install-recommends \
apt-transport-https \
&& apt-get update \
&& apt-get install -y --no-install-recommends \
aspnetcore-runtime-8.0 \
&& apt-get clean all
# Enable libjemalloc2
ENV LD_PRELOAD=/usr/lib/x86_64-linux-gnu/libjemalloc.so.2
# Example Connector odbc drivers
ARG INSTALL_ODBC_DRIVERS=Y
ARG INSTALL_POSTGRES_DRIVER=Y
ARG INSTALL_MARIADB_DRIVER=Y
COPY --chown=spotfire:spotfire scripts/ ./scripts/
RUN scripts/install-odbc-drivers.sh
USER spotfire
Each such specified package can, in turn, install other software packages as dependencies.
Note: There are different ways to extract the list of installed packages and other installed artifacts. Providing detailed instructions on software license analysis specialized tools is outside the scope of this document. Retrieving information on software artifacts other than software packages installed with the package manager tools is also outside the scope of this document. The following sections provide basic examples using standard container and package management tools.
Manually retrieve installed packages information
You can use the command dpkg-query to retrieve the full list of installed packages in a container image.
Example: To retrieve the list of installed packages in the debian:bullseye-20220328-slim image:
Unable to find image 'debian:bullseye-20220328-slim' locally
bullseye-20220328-slim: Pulling from library/debian
c229119241af: Pull complete
Digest: sha256:78fd65998de7a59a001d792fe2d3a6d2ea25b6f3f068e5c84881250373577414
Status: Downloaded newer image for debian:bullseye-20220328-slim
Desired=Unknown/Install/Remove/Purge/Hold
| Status=Not/Inst/Conf-files/Unpacked/halF-conf/Half-inst/trig-aWait/Trig-pend
|/ Err?=(none)/Reinst-required (Status,Err: uppercase=bad)
||/ Name Version Architecture Description
+++-=======================-============================-============-========================================================================
ii adduser 3.118 all add and remove users and groups
ii apt 2.2.4 amd64 commandline package manager
ii base-files 11.1+deb11u3 amd64 Debian base system miscellaneous files
ii base-passwd 3.5.51 amd64 Debian base system master password and group files
ii bash 5.1-2+b3 amd64 GNU Bourne Again SHell
ii bsdutils 1:2.36.1-8+deb11u1 amd64 basic utilities from 4.4BSD-Lite
ii coreutils 8.32-4+b1 amd64 GNU core utilities
ii dash 0.5.11+git20200708+dd9ef66-5 amd64 POSIX-compliant shell
ii debconf 1.5.77 all Debian configuration management system
ii debian-archive-keyring 2021.1.1 all GnuPG archive keys of the Debian archive
...
Manually retrieve installed packages licenses
You can use the command dpkg to retrieve the license for any installed package.
Example: To retrieve the license information for the installed package apt:
Apt is copyright 1997, 1998, 1999 Jason Gunthorpe and others.
Apt is currently developed by APT Development Team <deity@lists.debian.org>.
License: GPLv2+
This program is free software; you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation; either version 2 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with this program; if not, write to the Free Software
Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301, USA.
See /usr/share/common-licenses/GPL-2, or
<http://www.gnu.org/copyleft/gpl.txt> for the terms of the latest version
of the GNU General Public License.
Manually retrieve installed packages sources
You can use the command apt-get to retrieve the source for any installed package.
Example: To retrieve the source for the installed package apt:
$ docker run --rm debian:bullseye-20220328-slim sh -c "find /etc/apt/sources.list* -type f -exec sed -i -e 'p; s/^deb /deb-src /' '{}' + && apt-get update -qq && apt-get source -qq --print-uris apt=2.2.4"
'http://deb.debian.org/debian/pool/main/a/apt/apt_2.2.4.dsc' apt_2.2.4.dsc 2780 SHA256:750079533300bc3a4f3e10a9c8dbffaa0781b92e3616a12d7e18ab1378ca4466
'http://deb.debian.org/debian/pool/main/a/apt/apt_2.2.4.tar.xz' apt_2.2.4.tar.xz 2197424 SHA256:6eecd04a4979bd2040b22a14571c15d342c4e1802b2023acb5aa19649b1f64ea
Manually retrieve installed files
You can use the command docker to extract the contents of a container for further inspection.
Here we show 2 common methods to extract the image contents without running the container.
Method 1: Using a temporal container image to extract the files
Create a temporal container image based on the image you want to inspect, and export its whole filesystem (or parts of it).
Example:
-
Create a temporal container image called
temp-container, based on theunknown-image:latestimage: -
Extract the whole container image filesystem as a TAR file:
bash docker export temp-container > temp-container.tarOr, if you want to list only the included files:
bash docker export temp-container | tar t > temp-container-files.txt
This method is a direct way to extract the image's final filesystem. It provides a composite view of a container instance's filesystem.
Note: This is the fastest way to list the included files or extract individual files.
Method 2: Extract the container image layers as a set of layers
Create a TAR file with all the individual image layers that compose the final container image.
Example:
- Use the command
docker image saveto create a TAR file containing all the container image layers:
The TAR file includes a manifest.json file, which describes the image's layers and a set of separate directories containing the content of each of the individual layers.
This method produces an archive that exposes the container image format, not the container instances created from it. It provides a layered view of the container image.
Note: This is useful when you want to evaluate each layer's role in building the image.

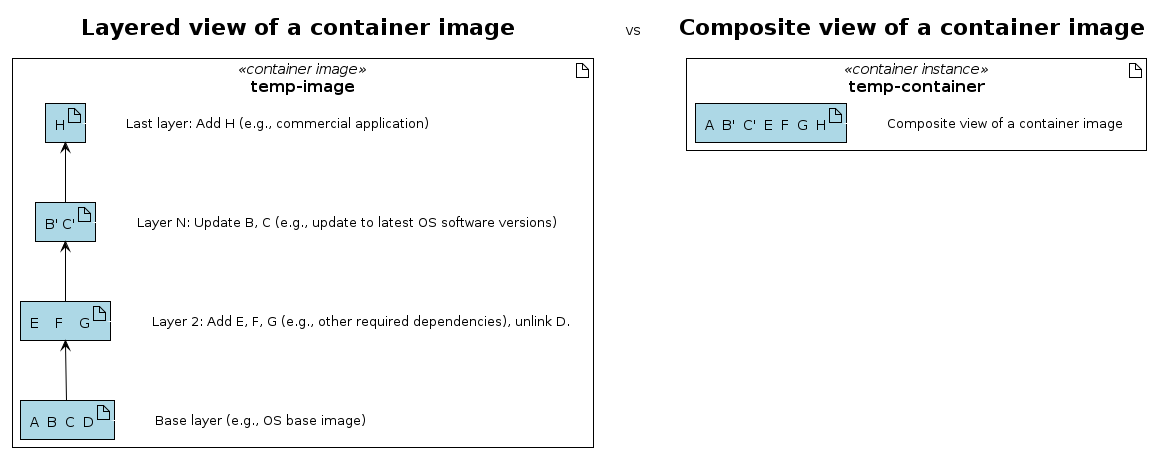

Layered view vs composite view
The following diagram illustrates the differences between the layered view and the composite view of a container image.
References:
- For more information on the docker command arguments, see the Docker CLI ⧉ documentation.
- For more information on the container image format, see the OCI image format specification ⧉.
